Description

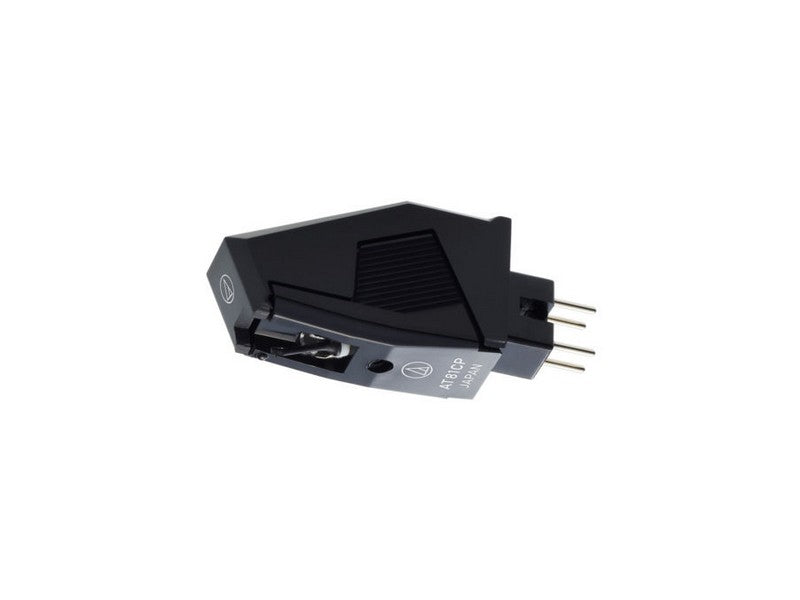

AT81CP Conical Cartridge for P-mount Turntables
This 0.6 mil conical cartridge fits P-mount turntables.
SPECIFICATIONS:
- Frequency Response 20-20,000 Hz
- Channel Separation 18 (dB at 1 kHz)
- Vertical Tracking Angle 20°
- Vertical Tracking Force 1.0-1.5 g (1.25 g standard)
- Stylus Construction Bonded round shank
- Recommended Load Impedance 47,000 ohms
- Coil Impedance 2.8 k ohms (1 kHz)
- DC Resistance 410 ohms
- Coil Inductance 400 mH (1 kHz)
- Recommended load capacitance 100 to 200 pF
- Output 3.5 mV (1 kHz, 5 cm/sec.)
- Channel Balance 2.5 dB (1 kHz)

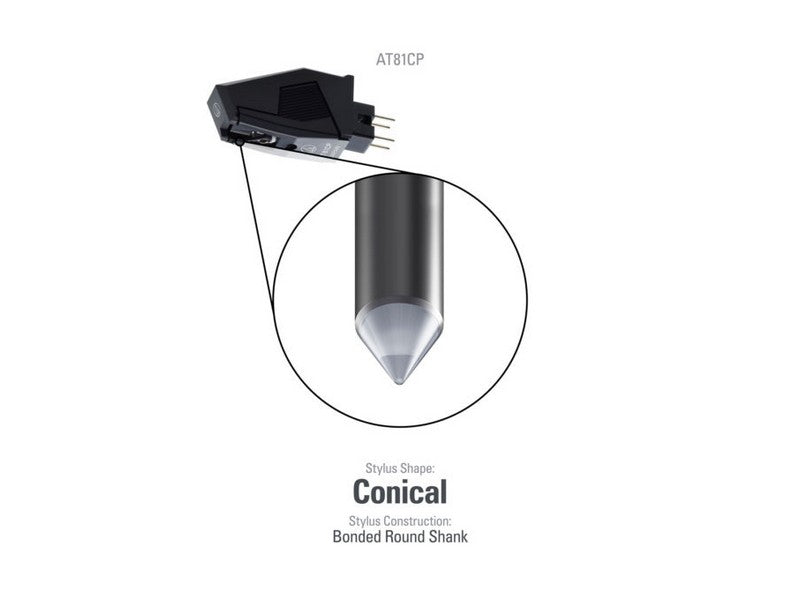

- Stylus Shape 0.6 mil conical
- Cantilever Carbon fiber-reinforced ABS
- Mount P-mount
- Weight 6.0 g (0.21 oz)
- Dimensions 15.3 mm (0.60″) H × 10.0 mm (0.39″) W × 35.1 mm (1.38″) D
- Replacement Stylus ATN81CP
