Description

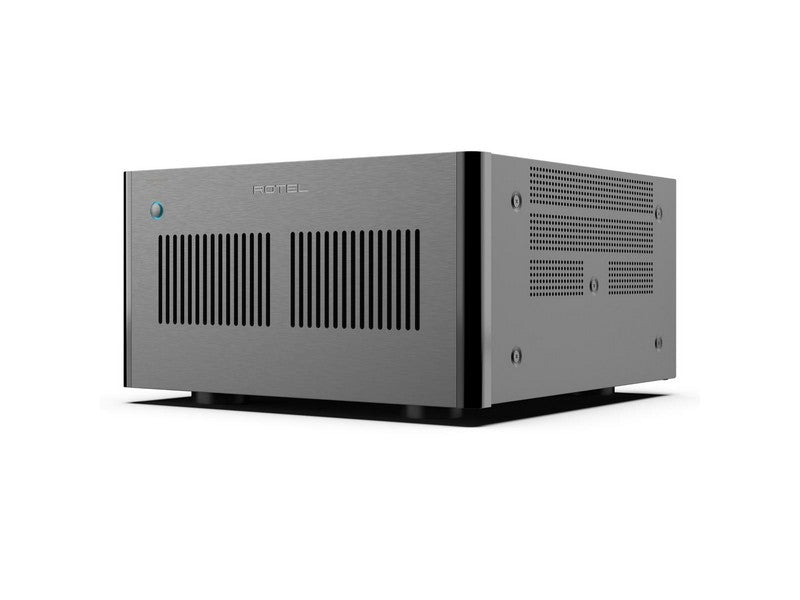

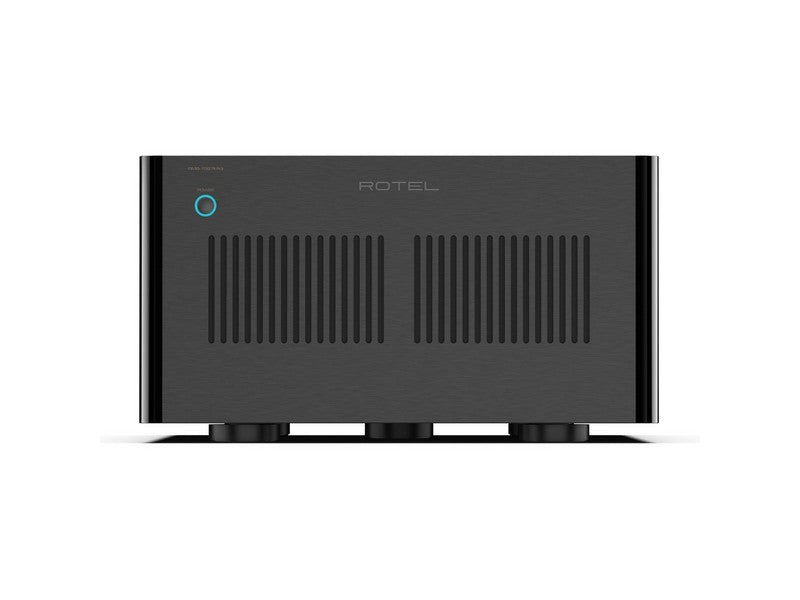

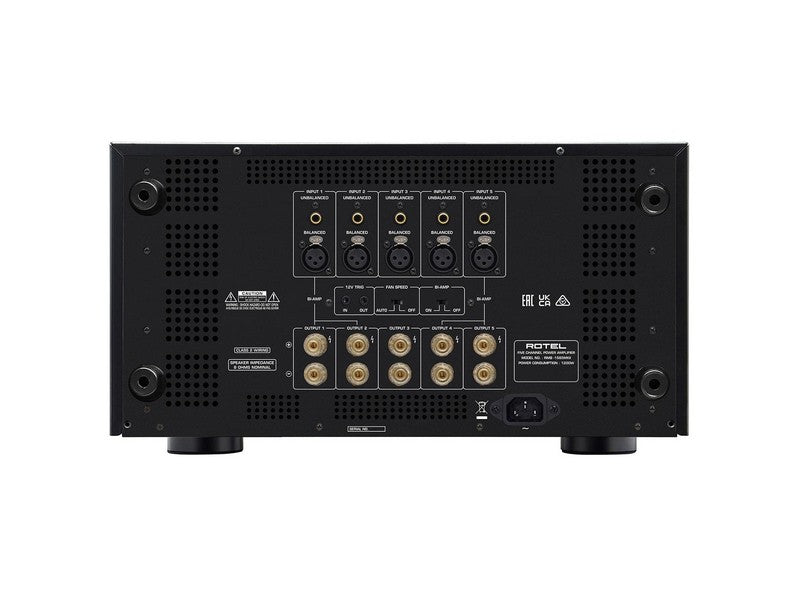

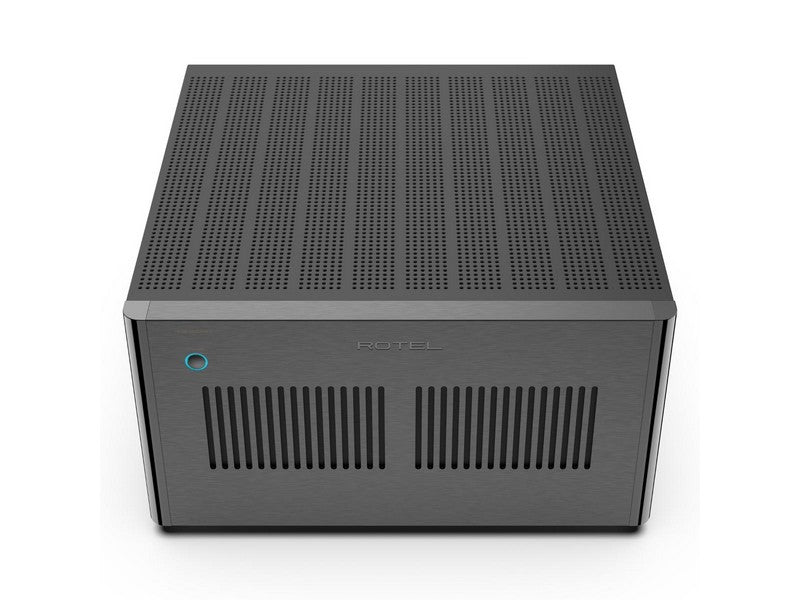

ROTEL RMB-1585MKII Multi-Channel Power Amplifier
Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.
Following Rotel’s updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
The RMB-1585MKII is available in both black and silver colours.
Features:
- 5 x 340 Watts of robust power, 4 Ohms
- Class AB amplifier design

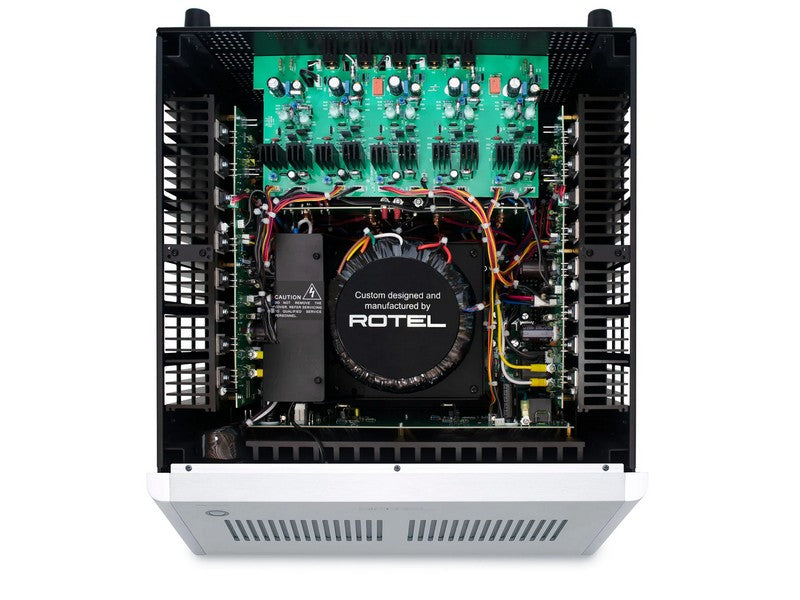

- Massive power supply using Dual Toroidal Transformers
- High quality slit foil capacitors
- Rack ears included
Specifications:
- Continuous Power Output 210 W/Ch (5 Channels Driven, 8Ω), 340 W/Ch (5 Channels Driven, 4Ω), 440 W/Ch (2 Channels Driven, 4Ω)
- Total Harmonic Distortion (THD) 20 Hz – 20 kHz: <0.03%
- Frequency Response 10 Hz – 100 kHz, +0.1, -0.3 dB
- Signal to Noise Ratio (IHF “A” Weighted) 120 dB
- Gain 26.9 dB
- Intermodulation Distortion (60 Hz:7 kHz, 4:1) <0.03%
- Damping Factor (1 kHz, 8Ω) 223
- Crosstalk/Separation >55 db
- Input Sensitivity Line Level Inputs (RCA): 1.89 V, Line Level Inputs (XLR): 4.7 V
- Input Impedance Line Level Inputs (RCA): 12 kΩ, Line Level Inputs (XLR): 50 kΩ
- Dimensions (W x H x D) 431 x 237 x 456 mm (17″ x 9.4″ x 18″)
- Front Panel Height 5U / 221 mm (8.75″)
- Power Requirements 230 V, 50 Hz
- Power Consumption 1200 W
- Net Weight 37.4 kg (82 lb)
- BTU Rating (4Ω, 1/8th Power) 3317 BTU/h
