Description

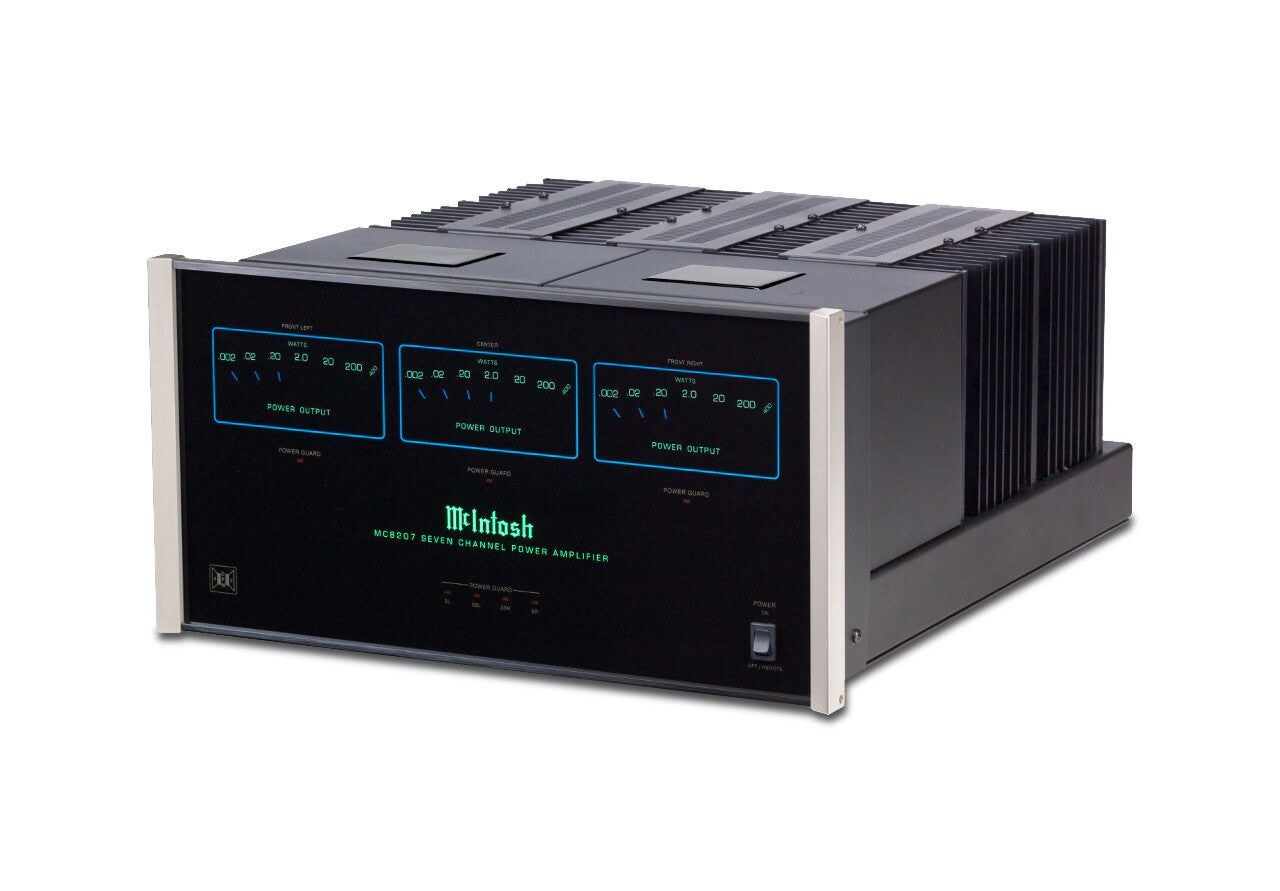

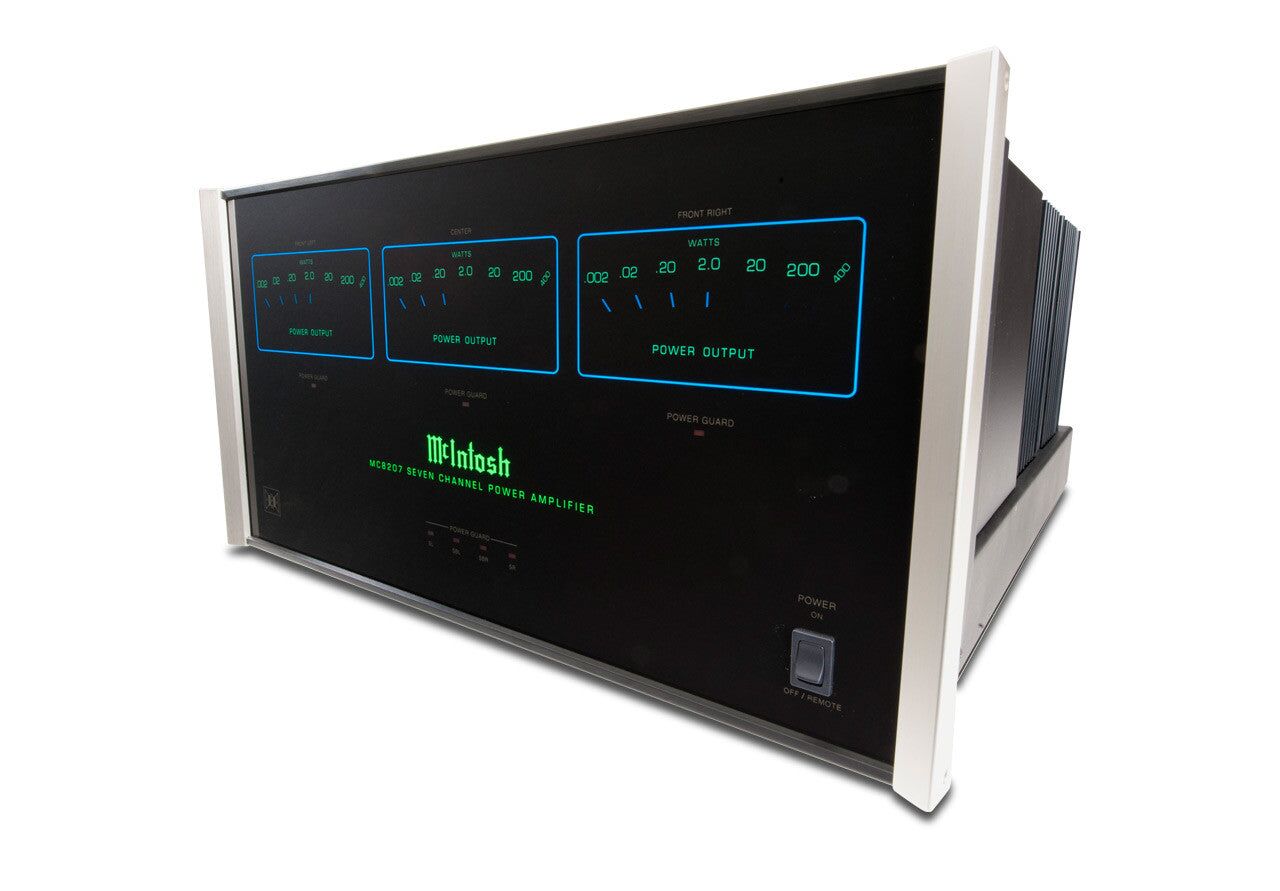

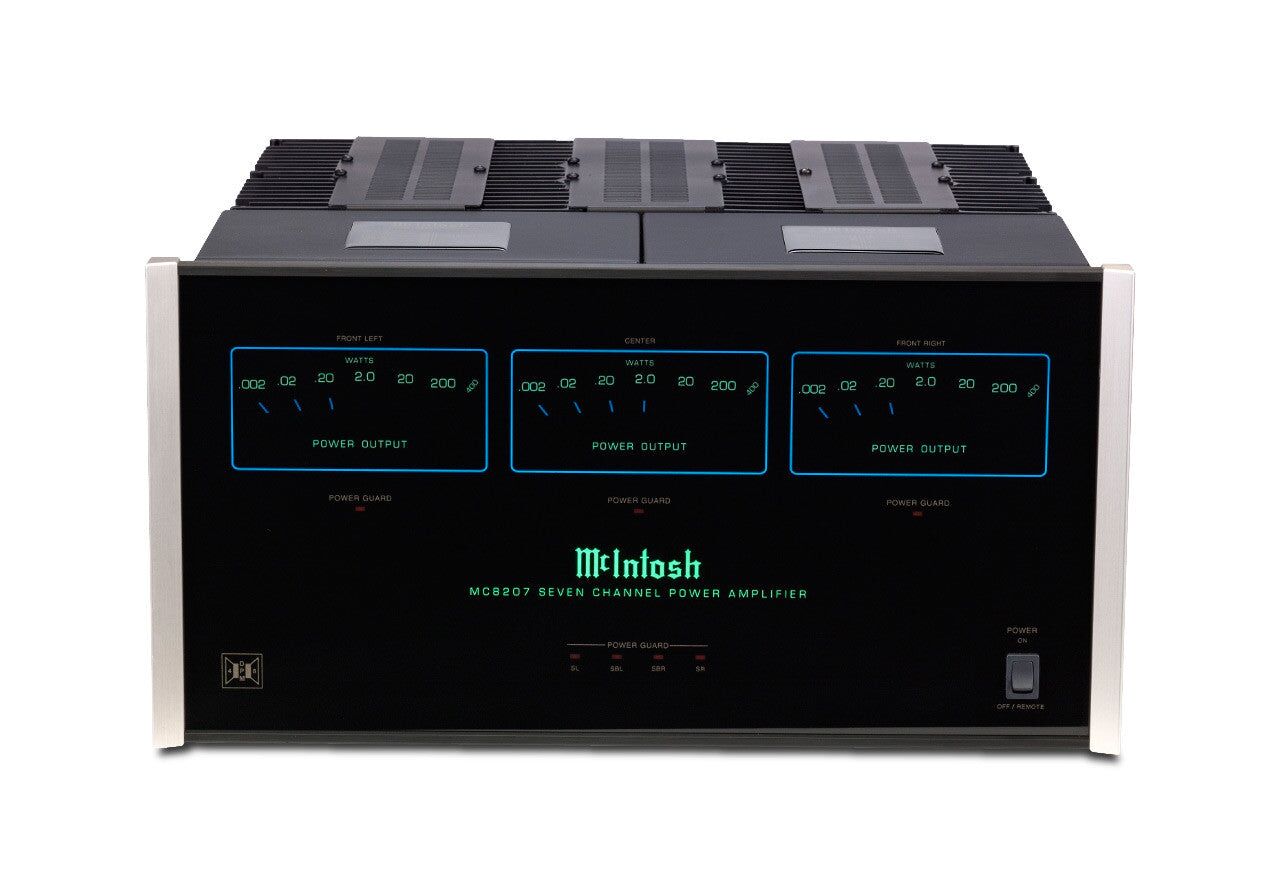

7 channel power amplifier
MC8207 is a 7 channel amplifier designed to power the finest home theatre systems. Seven channels may be used in larger rooms or five channels for the theatre plus two stereo channels for powering a set of speakers in another area of the home. Immensely powerful, the high current MC8207 delivers 200 watts per channel into either 4 or 8 ohm speaker types using the McIntosh Dynamic Power Manager®. You will always have all the power you need when using MC8207.
Specifications
ELECTRONIC SPECIFICATIONS
- POWER OUTPUT PER CHANNEL 200W @ 4 or 8 Ohms

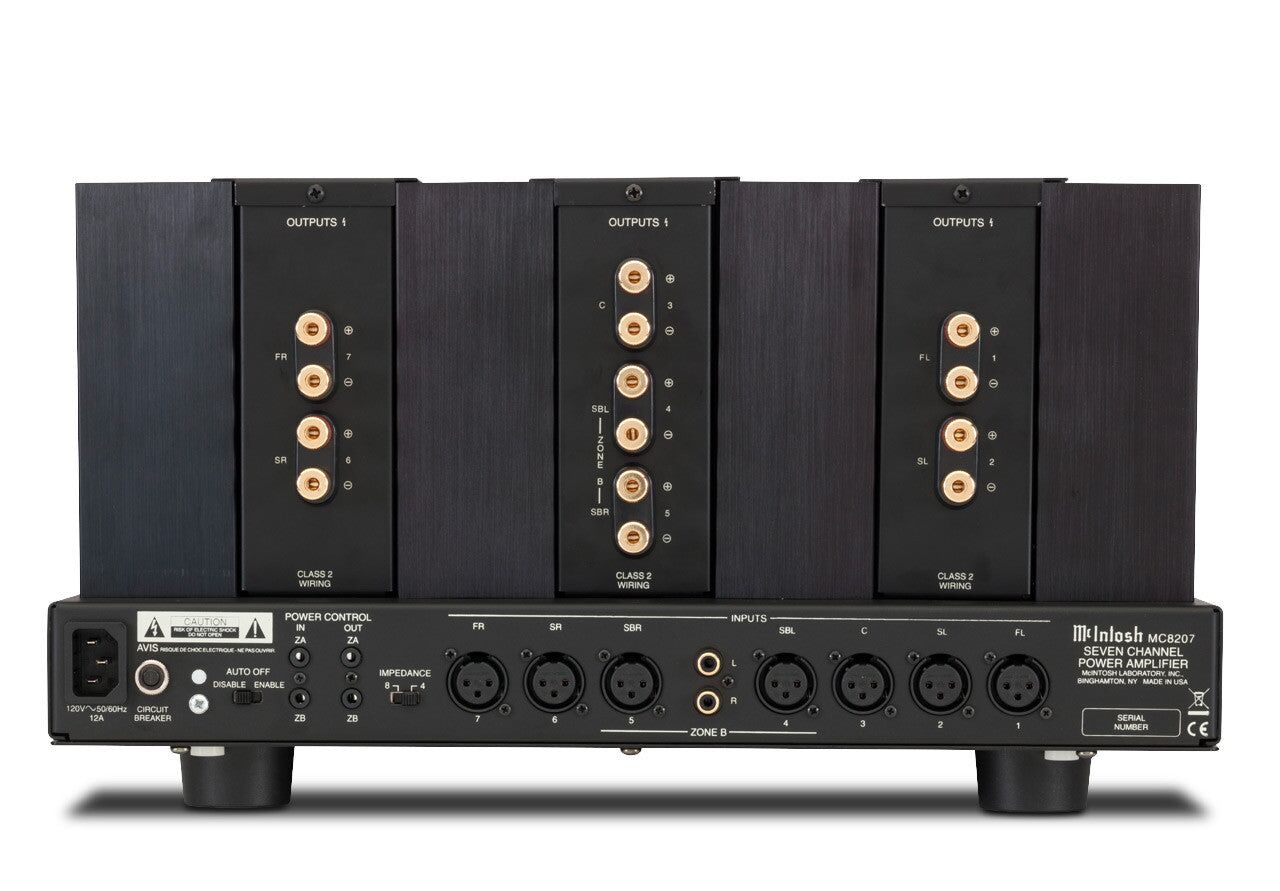

- NUMBER OF CHANNELS 7 (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
- TOTAL HARMONIC DISTORTION 0.005%
- S/N BELOW RATED OUTPUT 112dB
- DYNAMIC HEADROOM 1.7dB
- DAMPING FACTOR 140
- RATED POWER BAND 20Hz to 20kHz
- FREQUENCY RESPONSE +0,-0.25DB 20Hz to 20kHz
- FREQUENCY RESPONSE -3DB 10Hz to 100kHz
CONTROL
- REMOTE POWER CONTROL Yes, 7 or 5 + 2 Channel
- MULTI CHANNEL DB25 CABLE N/A
GENERAL SPECIFICATIONS
- CIRCUIT CONFIGURATION Push-Pull Complementary
- CIRCUIT DESIGN Transistor
- MONO BRIDGE No
- MONO PARALLEL No
- AUTOFORMER No

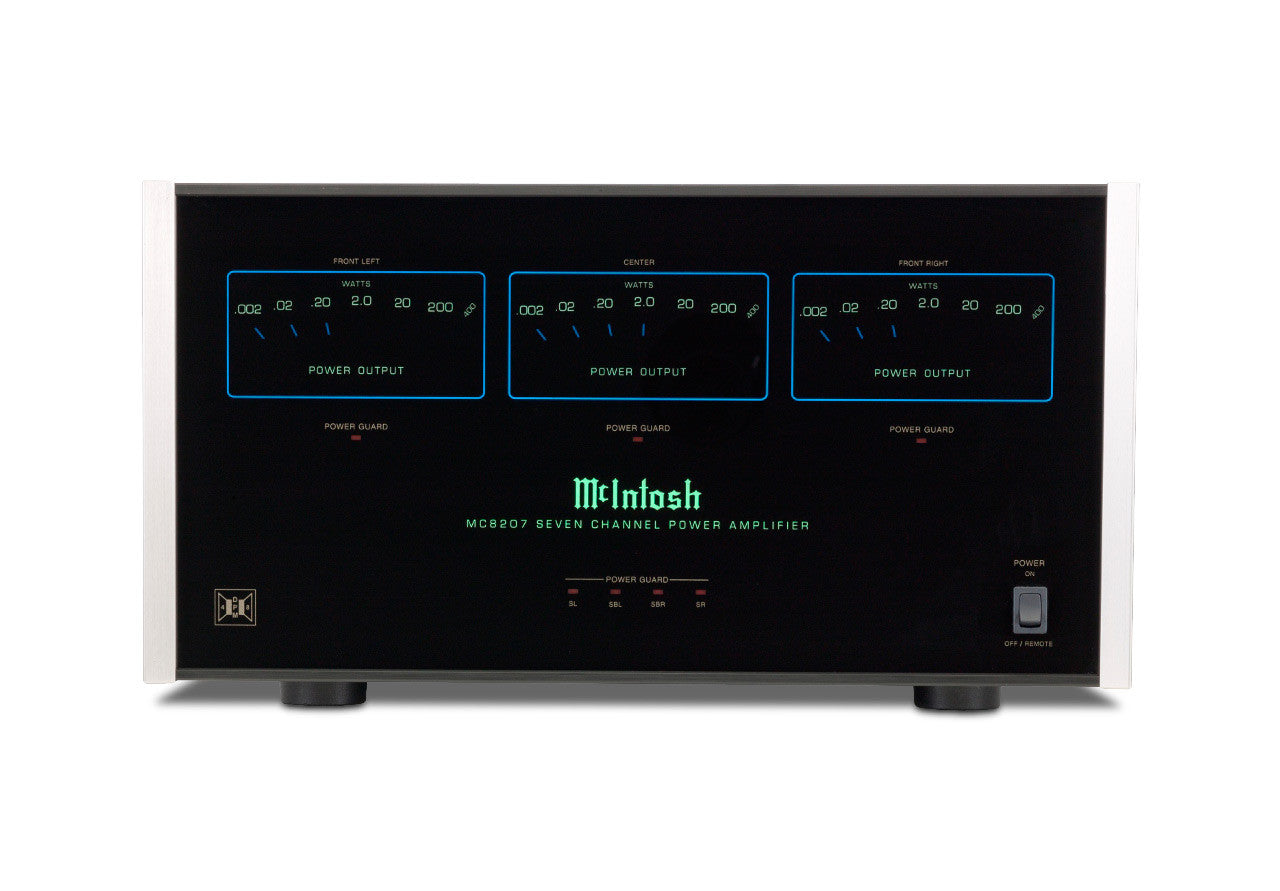

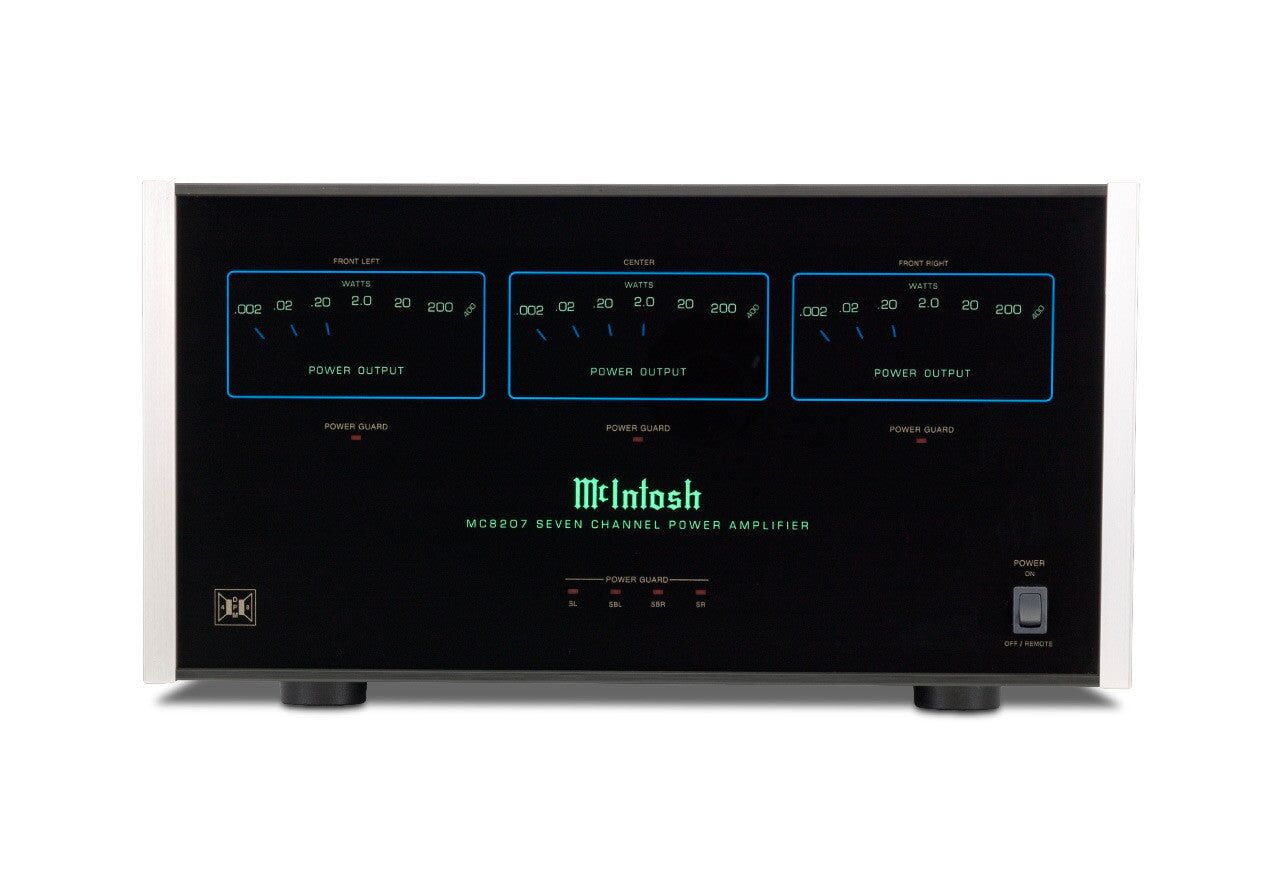

- METERS Yes, new style LED
- METER LIGHT SWITCH No
- BALANCED INPUT Yes
- FRONT PANEL Glass
- ILLUMINATION LED Fiber Optic
- CHASSIS STYLE Inverted
- GOLD PLATED BINDING POSTS Yes
WEIGHTS & DIMENSIONS
- DIMENSIONS (W X H X D) 17-1/2″ (44.5cm) x 9-7/16″ (23.9cm) (including feet) x 21″ (53.3cm) (including front panel and cables)
- WEIGHT 83 lbs (37.6 kg)
