Description
3 channel power amplifier

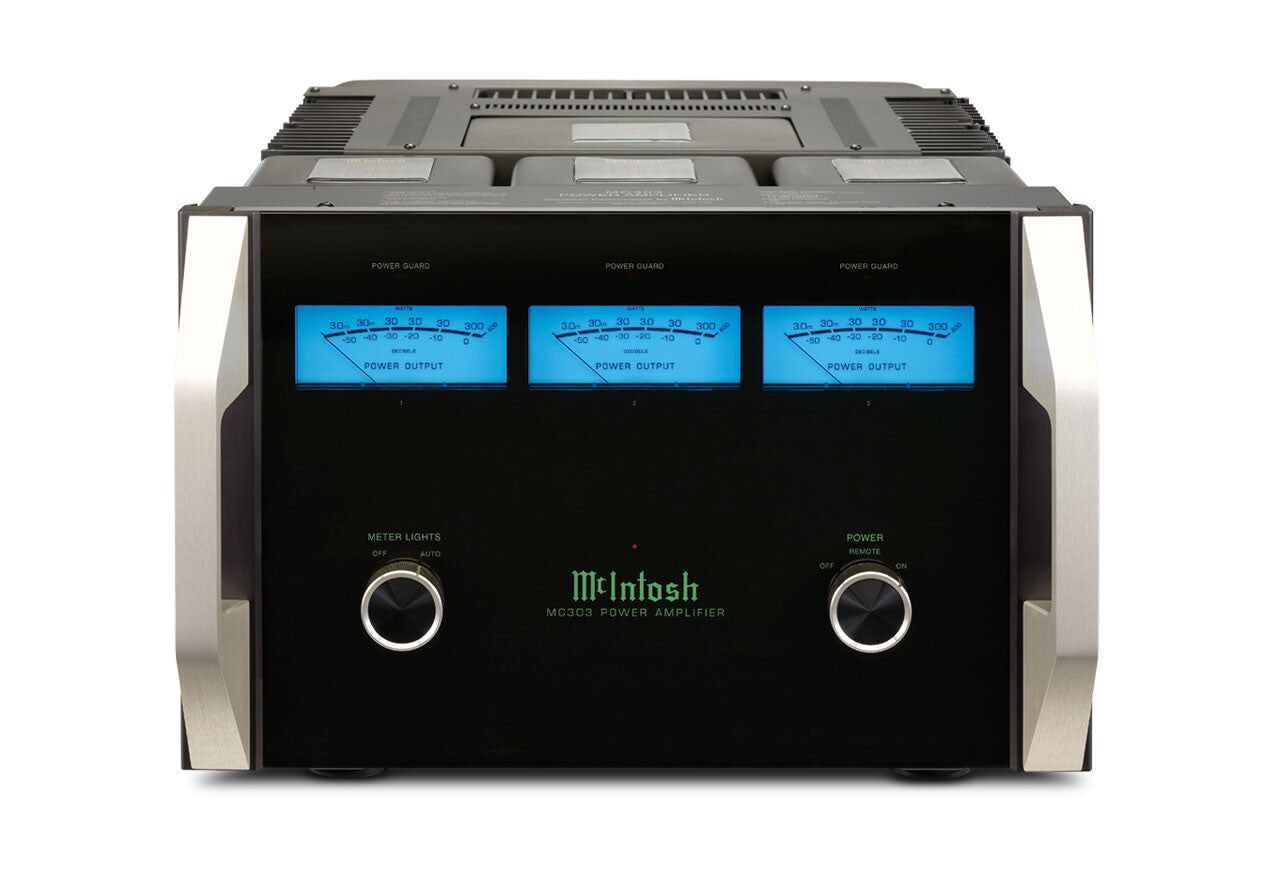

At 300 watts per channel the new McIntosh MC303 3 channel power amplifier with Autoformers is our most powerful multi-channel amplifier offering to date. Premium cosmetics featuring a ½” thick glass faceplate, custom machined and anodized aluminum handles, and a mirror polished stainless steel chassis are standard equipment on the MC303. Power Guard, is a McIntosh circuit innovation, to maximize sound quality at high power levels while our Sentry Monitor feature provides continuous short circuit protection of the amplifier and connected loudspeakers. A triple bank of Peak Reading Watt Meters provides instant recognition of power output and may be switched off for theatre use. This 3 channel amplifier has collection of technologies that enhances its performance and reliability while protecting the amplifier and loudspeakers.
Specifications
ELECTRONIC SPECIFICATIONS
- POWER OUTPUT PER CHANNEL 300W @ 2, 4 or 8 Ohms
- NUMBER OF CHANNELS 3
- TOTAL HARMONIC DISTORTION 0.005%
- S/N BELOW RATED OUTPUT 112dB
- DYNAMIC HEADROOM 1.8dB
- DAMPING FACTOR 40
- RATED POWER BAND 20Hz to 20kHz
- FREQUENCY RESPONSE +0,-0.25DB 20Hz to 20kHz
- FREQUENCY RESPONSE -3DB 10Hz to 100kHz
CONTROL
- REMOTE POWER CONTROL Yes
- MULTI CHANNEL DB25 CABLE No
GENERAL SPECIFICATIONS
- CIRCUIT CONFIGURATION Push-Pull Complementary Autoformers
- CIRCUIT DESIGN Transistor
- MONO BRIDGE No
- MONO PARALLEL No
- AUTOFORMER Yes
- METERS Yes
- METER LIGHT SWITCH Yes
- BALANCED INPUT Yes
- FRONT PANEL Glass with handles
- ILLUMINATION LED Fiber Optic
- CHASSIS STYLE Inverted
GOLD PLATED BINDING POSTS Yes
WEIGHTS & DIMENSIONS
- DIMENSIONS (W X H X D) 17-3/4″ (45.09cm) x 12-3/8″ (31.43cm) (including feet) x 22″ (55.88cm) (including front panel and cables)
- WEIGHT 155 lbs (70.3 kg)
