Description

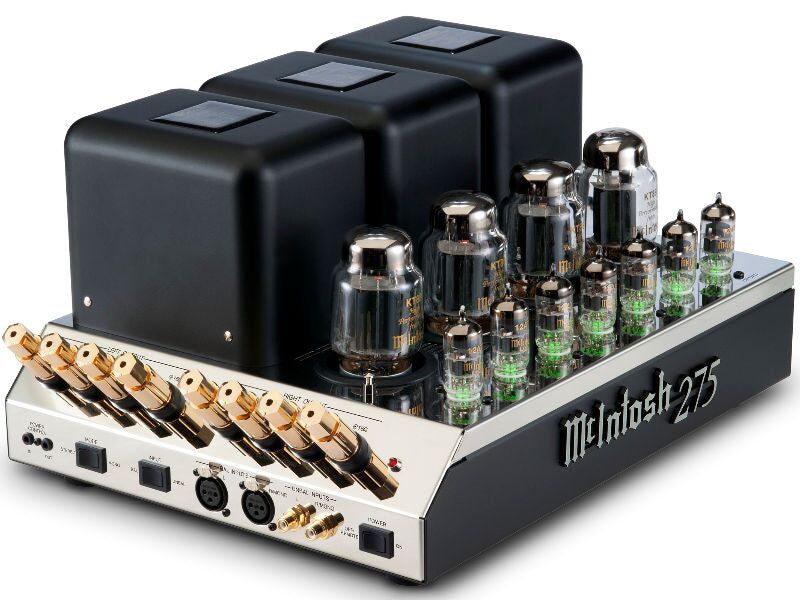

Vacuum Tube Power Amplifier
An object of desire cherished by music lovers around the world, the MC275 was designed and engineered in 1961 by McIntosh co-founder Sidney Corderman and the McIntosh Engineering Team. Based upon the extraordinary Unity Coupled Circuit, the MC275 vacuum tube amplifier has lush sound that presents a powerful and detailed soundstage. Combining a polished Stainless Steel chassis with the latest vacuum tube circuit layout advancements move MC275 solidly into the 21st century. This vacuum tube amplifier gives new dimension to sound quality.
Electronic Specifications
- POWER OUTPUT PER CHANNEL: 75W @ 4, 8 or 16 Ohms
- NUMBER OF CHANNELS: 2
- THD: 0.5%
- S/N BELOW RATED OUTPUT: 100dB
- DYNAMIC HEADROOM: 1.2dB
- DAMPING FACTOR: 20
- RATED POWER BAND: 20Hz to 20kHz
- FREQUENCY RESPONSE +0,-0.25DB: 20Hz to 20kHz
- FREQUENCY RESPONSE -3DB: 10Hz to 70kHz
Control
- REMOTE POWER CONTROL: N/A
- MULTI CHANNEL DB25 CABLE: N/A
General Specifications
- CIRCUIT CONFIGURATION: Unity Coupled
- CIRCUIT DESIGN: Vacuum Tube
- MONO BRIDGE: No
- MONO PARALLEL: Yes, 150W @ 2, 4 or 8 Ohms
- AUTOFORMER: Output Transformer
- METERS: No
- METER LIGHT SWITCH: N/A
- BALANCED INPUT: Yes
- FRONT PANEL: N/A
- ILLUMINATION: N/A
- CHASSIS STYLE: Polished Stainless Steel
- GOLD PLATED BINDING POSTS: Yes, 5 way
Weights & Dimensions
- DIMENSIONS (W X H X D): 16-1/2″ (41.91cm) x 8-1/4″ (20.96cm) (including feet) x 12″ (30.48cm)
- WEIGHT: 67 lbs (30.5 kg)
- SHIPPING WEIGHT: 75 lbs (34.1 kg)
