Description

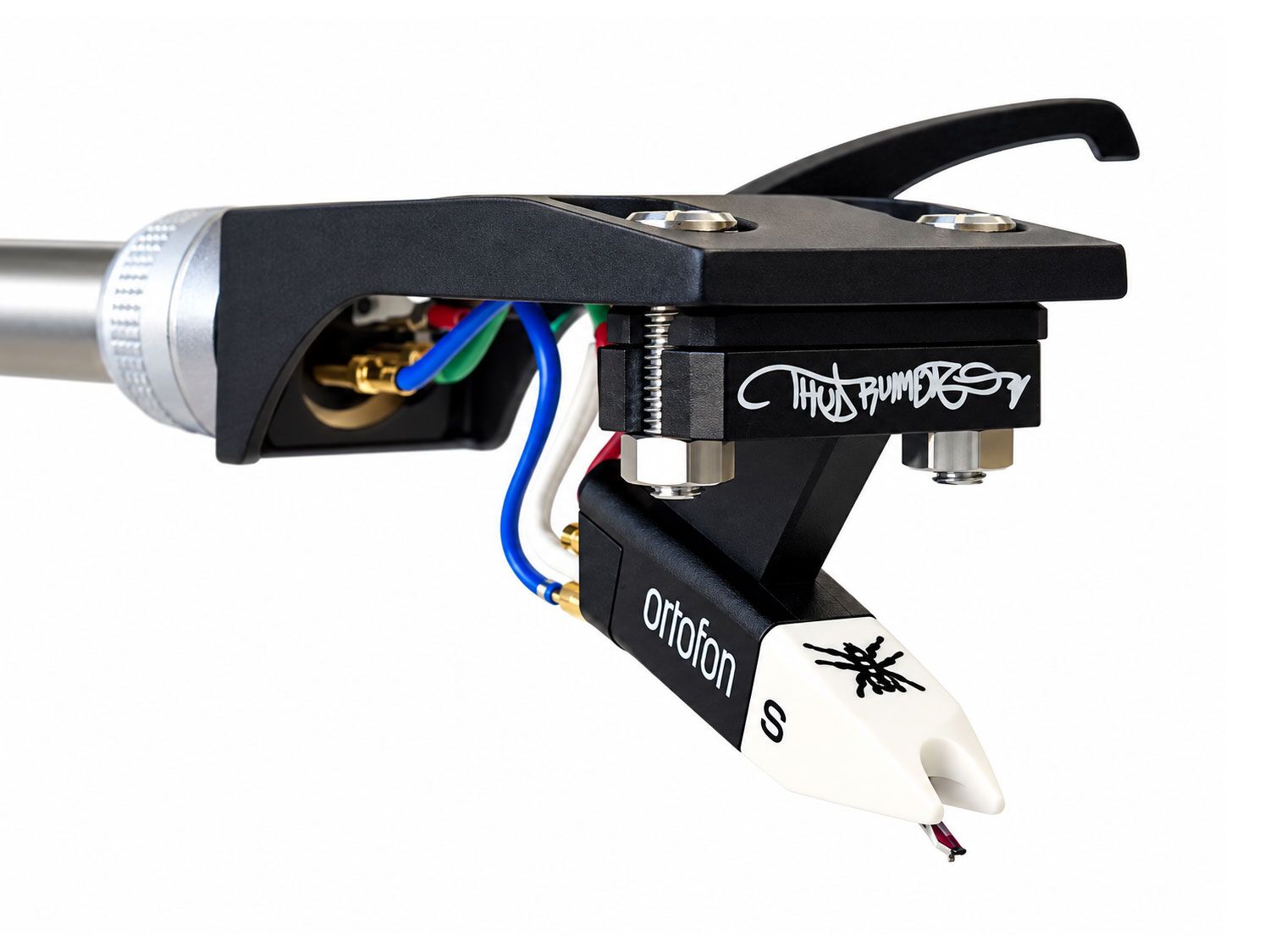

DJ QBert is one of the most respected names in hip-hop and turntablism. So when Ortofon teamed up with ‘Q’ to design a cartridge and stylus from the ground-up, you knew it was going to be good. Ortofon’s QBert series features rock-solid handling, extremely high output and low-wear characteristics. Ortofon also toned down some of the high end to reduce some of the unwanted artefacts that are introduced from well-worn vinyl, and a slightly hyped mid-range designed to enable scratching to cut through the mix.
Made in Denmark.
Specifications
- Output voltage at 1000Hz, 5cm/sec.: 11 mV
- Channel balance at 1kHz: 1.5 dB
- Channel separation at 1kHz: 22 dB
- Channel separation at 15 kHz: –
- Frequency range at -3dB: 20-18,000 Hz
- Frequency response: 20-18,000 Hz -3 dB
- Tracking ability at 315 Hz at recommmende tracking force: 90 µm
- Compliance, dynamic lateral: 12 µm/mN
- Stylus type: Spherical
- Stylus tip radius: R 18 µm
- Tracking force range: 2.0-4.0 g (20-40 mN)
- Tracking force recommended: 3.0 g (30 mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 1.680 Ohm
- Internal inductance: 920 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-400 pF
- Cartridge weight: 18.5 g
- Replacement stylus unit: Q.Bert.
