Description

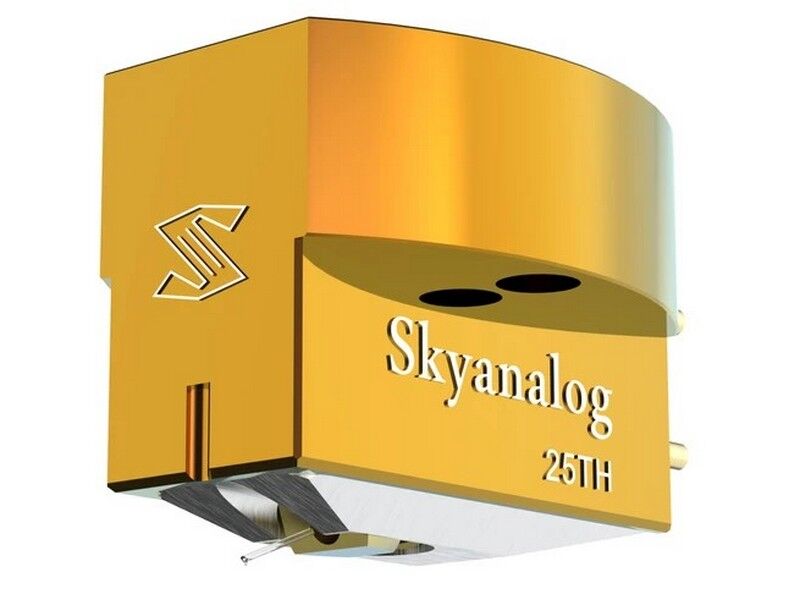

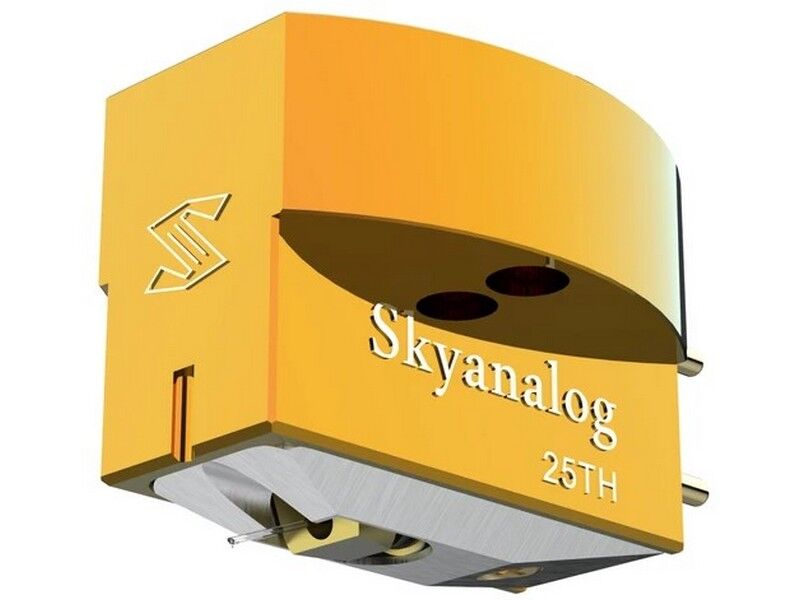

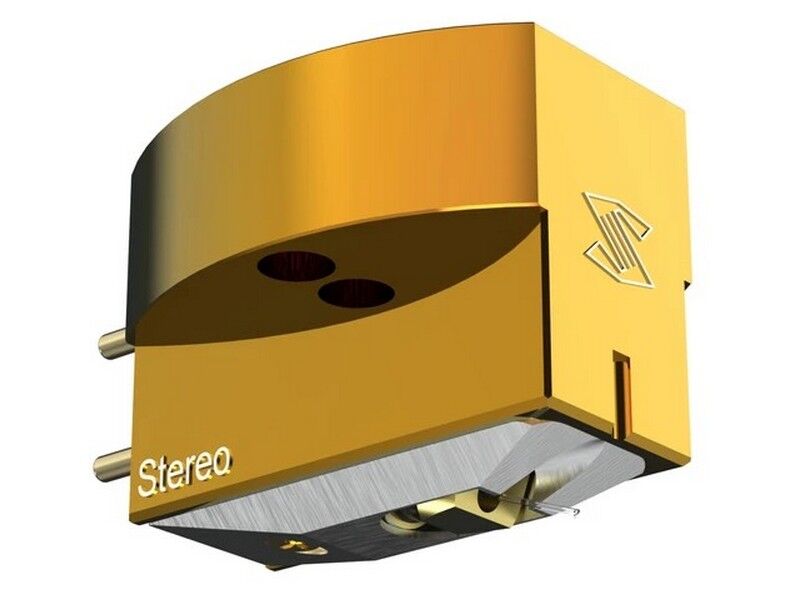

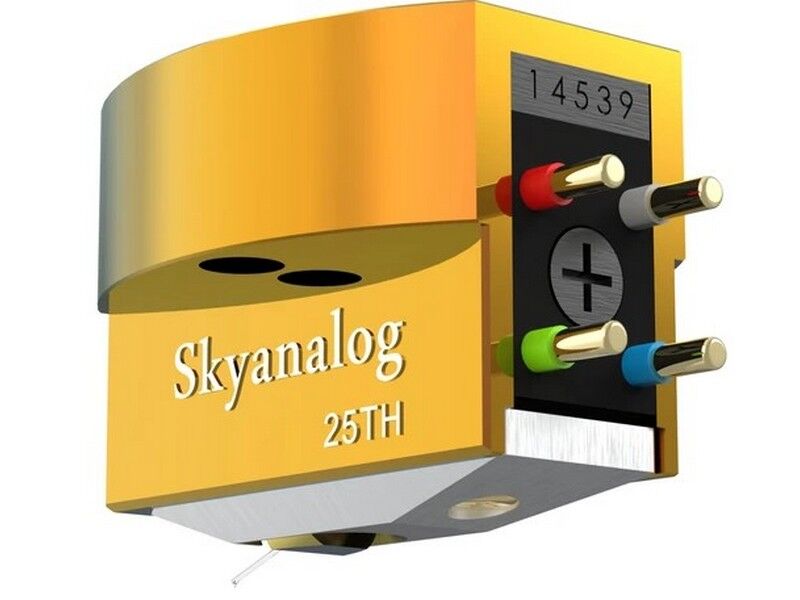

Skyanalog Diamond 25th MC Cartridge

The Skyanalog Diamond 25th MC cartridge is a limited-edition, high-end moving coil (MC) cartridge created to commemorate Skyanalog’s 25th anniversary.

This exclusive cartridge represents the pinnacle of craftsmanship and performance, designed for audiophiles seeking the ultimate in sound quality and precision.

At the heart of the Diamond 25th MC cartridge is an advanced generator system that ensures exceptional accuracy, low distortion, and superb channel separation. It features a boron cantilever and a nude diamond stylus, both of which contribute to its precise tracking ability and ability to retrieve even the finest details from vinyl grooves. The combination of these high-quality components allows for lifelike sound reproduction with remarkable clarity and transparency.

Sonically, the Diamond 25th MC cartridge offers a rich, immersive soundstage with deep, well-defined bass, a smooth and expressive midrange, and extended, airy highs. Its tonal balance is natural and refined, making it ideal for capturing the full dynamic range of recordings. The cartridge excels at delivering both subtle nuances and powerful crescendos, providing a truly engaging listening experience.

As a limited-edition model, the Skyanalog Diamond 25th MC is not only a technical marvel but also a collector’s item. Its luxurious design and attention to detail reflect the brand’s commitment to excellence. With only a select number produced, this cartridge is a rare gem for audiophiles who value both superior performance and exclusivity in their analog setups.

Specifications:

Cantalever

Diamond
Stylys

Micro – ridge
Stylys type radius

5x80uM
VTA

20 degrees
Coil

Pure iron square coil
Weight

10.7 grams
Output voltage

0.35mV AT 3.54cm/s
Internal impedance

6 ohms
Frequency response

20-30,000Hz +/-1dB
Channel separation

Better than 35db at 1KHz
Channel balance

Better than 0.5 dB
Tracking ability at 315 Hz at optimum tracking force

70uM
Dynamic compliance

15uMmN
Recommended loading

100-300 OHMS
Recommended tracking force

1.1 – 1.4 grams
Optimum tracking force

1.35 grams
Recommended tonearm mass

medium
Optimum working temperature

23 C
Break-in period

30 hours
