Description

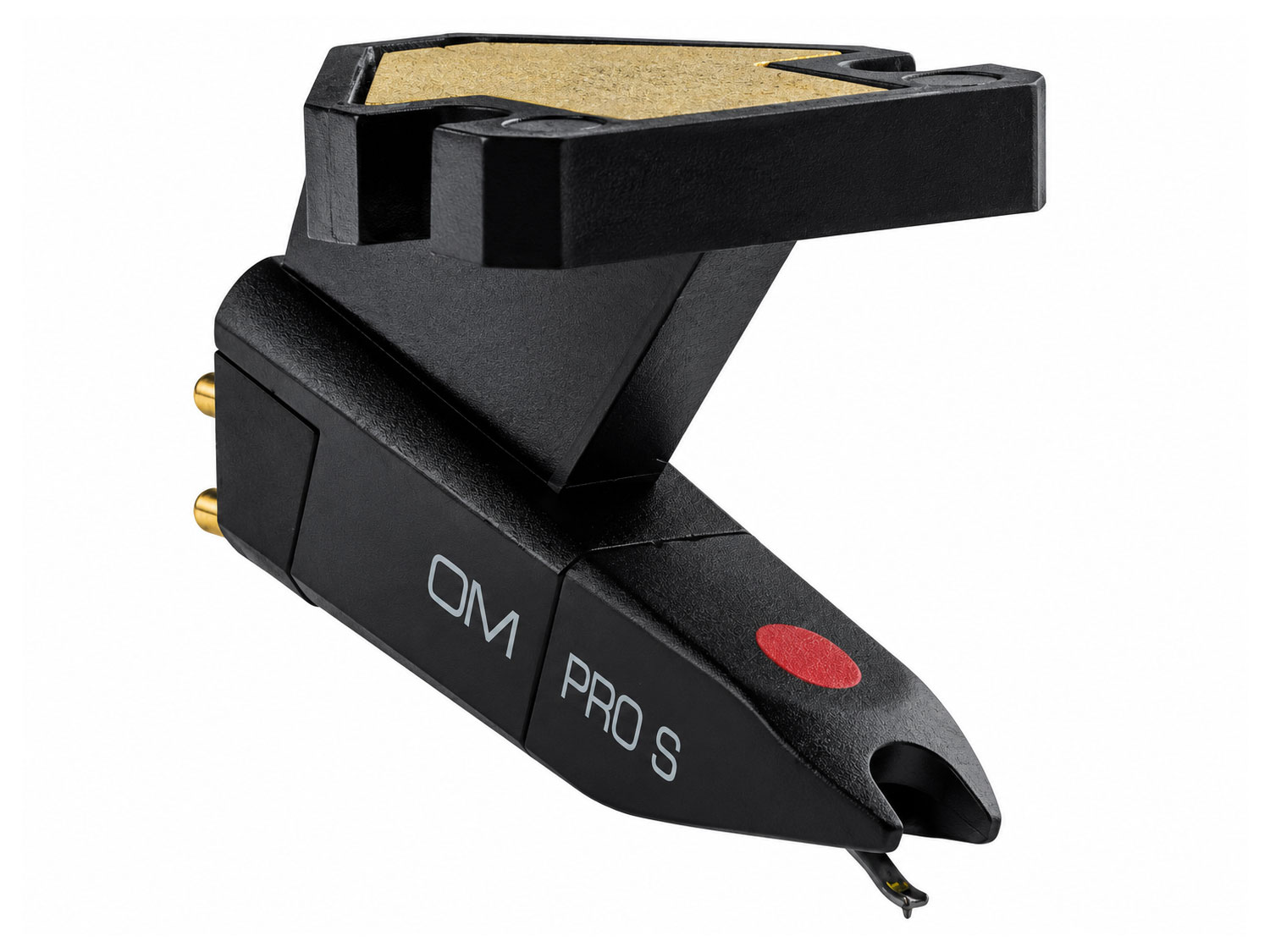

Ortofon DJ’s Pro S cartridges and stylus are the perfect cartridges for beginner DJ’s that still want the quality and prestige that is associated with Ortofon products. They feature a spherical diamond stylus and a quality cantilever. This cartridge delivers a solid performance for scratch DJ’s and mix DJ’s alike. And they look pretty damn good in their black finish.
Made in Denmark.
Specifications
- Output voltage at 1000Hz, 5cm/sec.: 5 mV
- Channel balance at 1kHz: 2 dB
- Channel separation at 1kHz: 20 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3dB: 20-20,000 Hz
- Frequency response: 20-18,000 Hz +/- 2 dB
- Tracking ability at 315 Hz at recommmended tracking force: 70 µm
- Compliance, dynamic lateral: 7 µm/m N
- Stylus type: Spherical
- Stylus tip radius: R 26 µm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force recommended: 4.0 g (40 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-600 pF
- Cartridge weight: 5 g
- Replacement stylus unit: Pro S.
