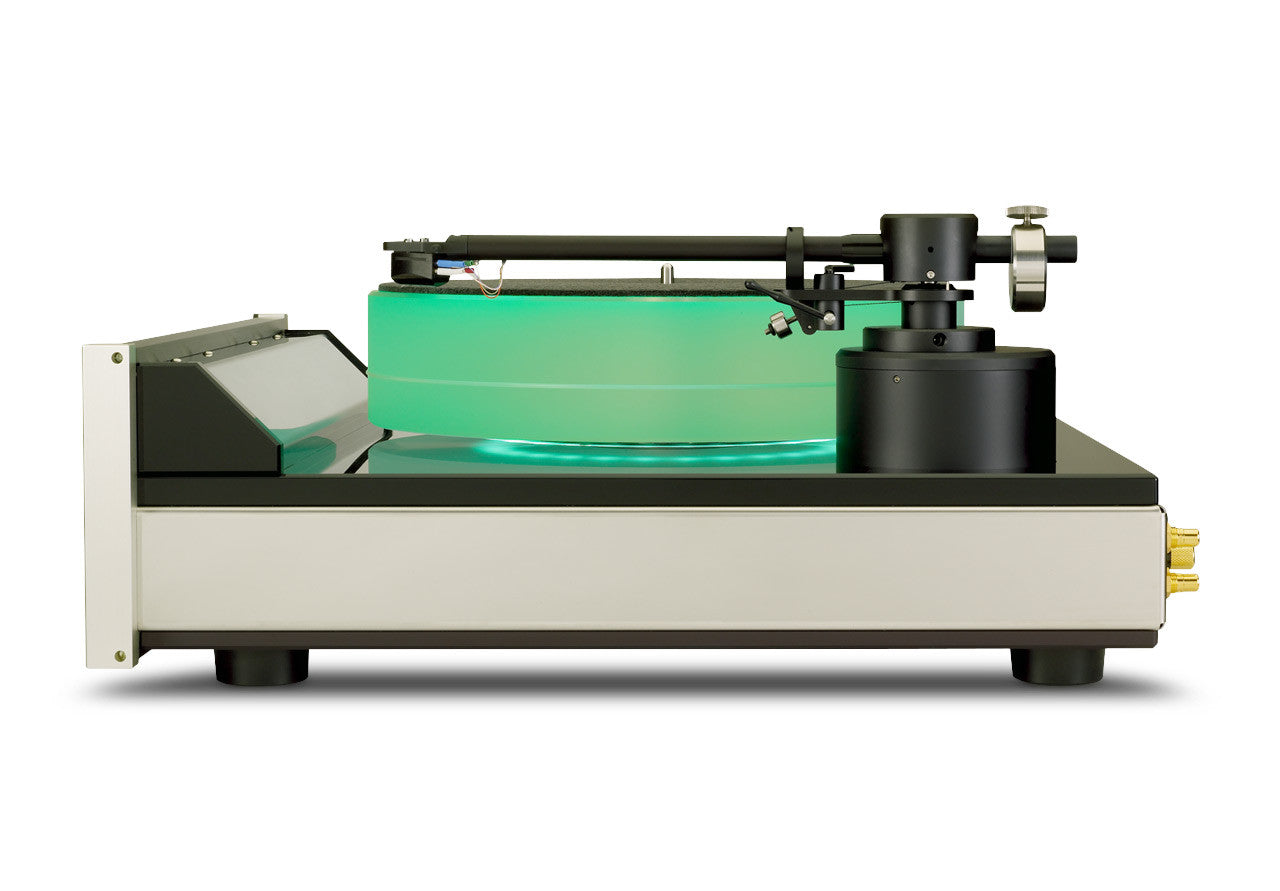

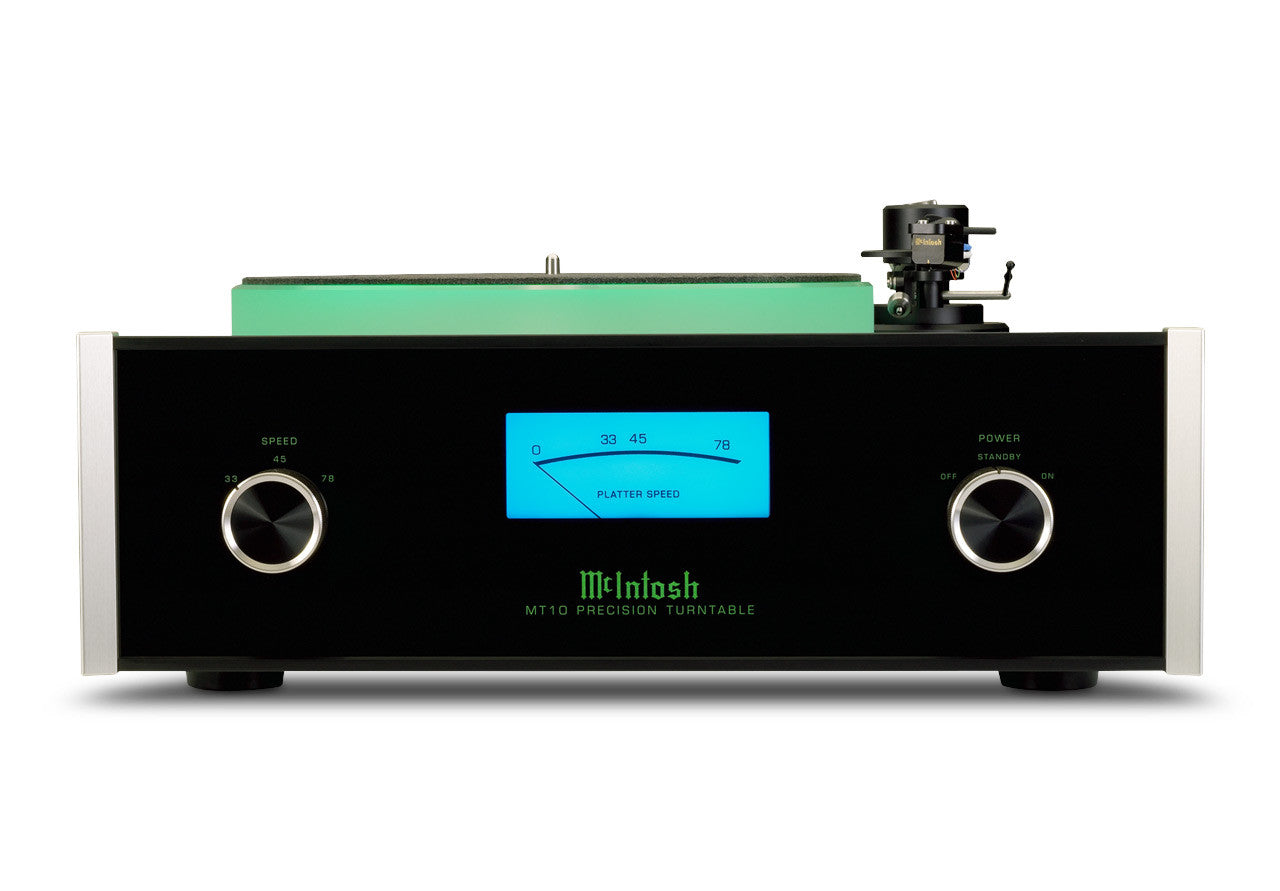

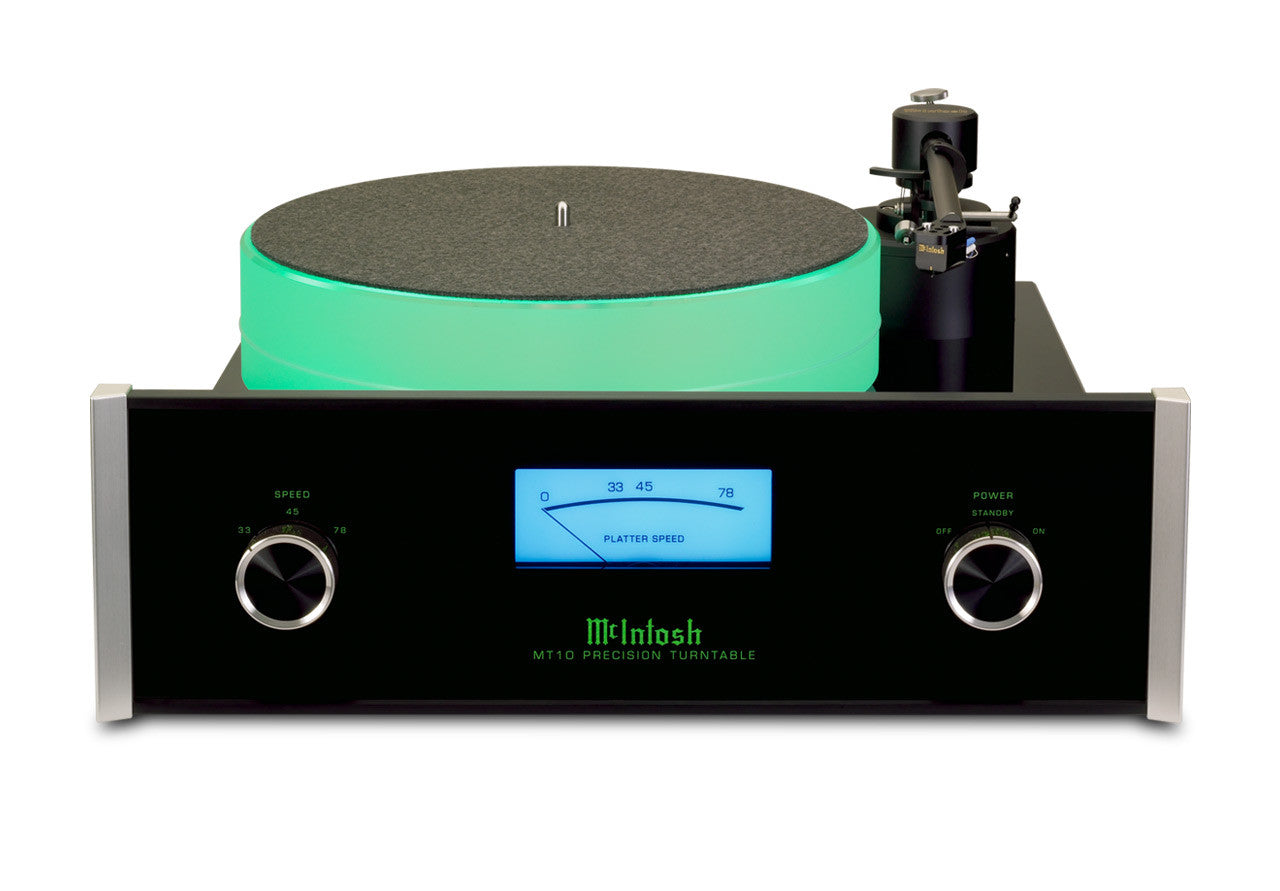

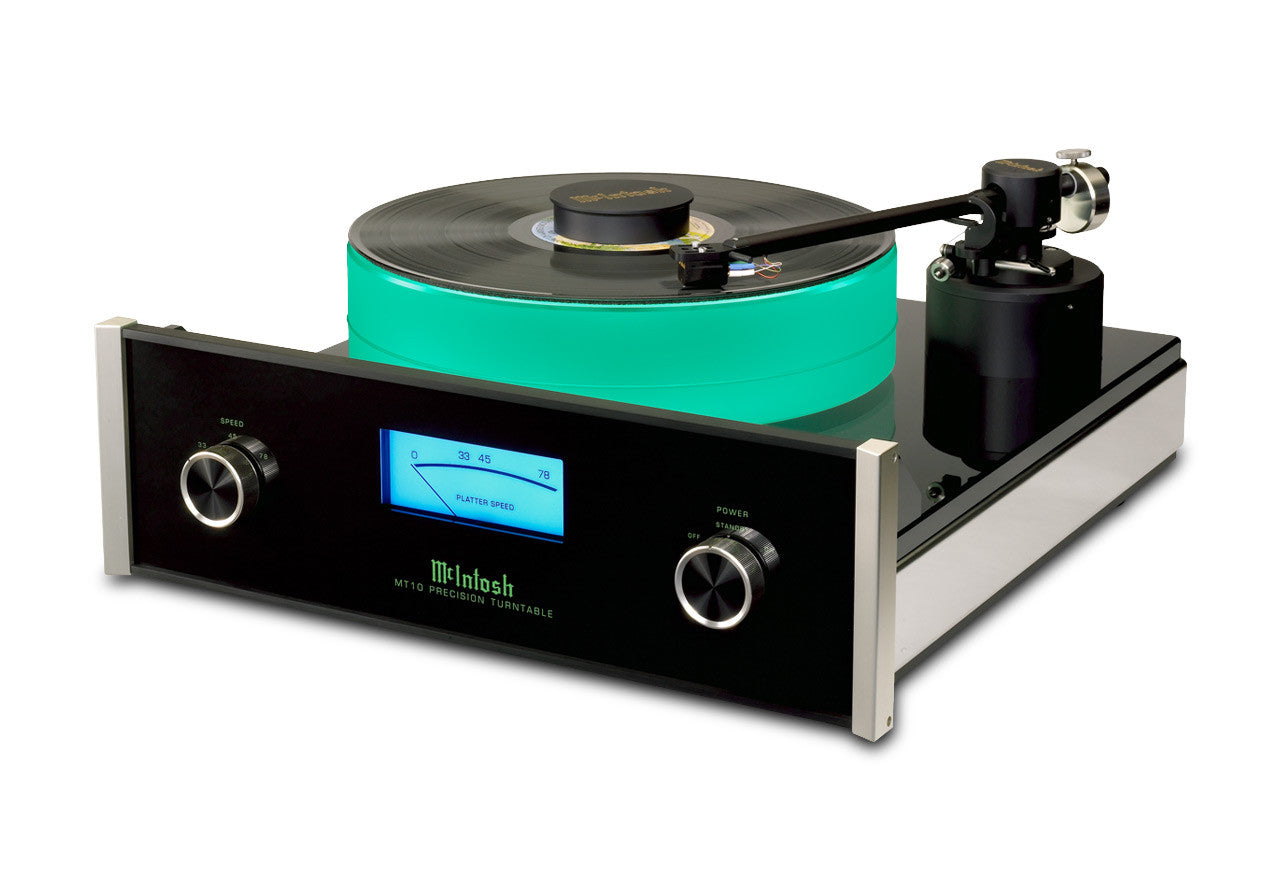

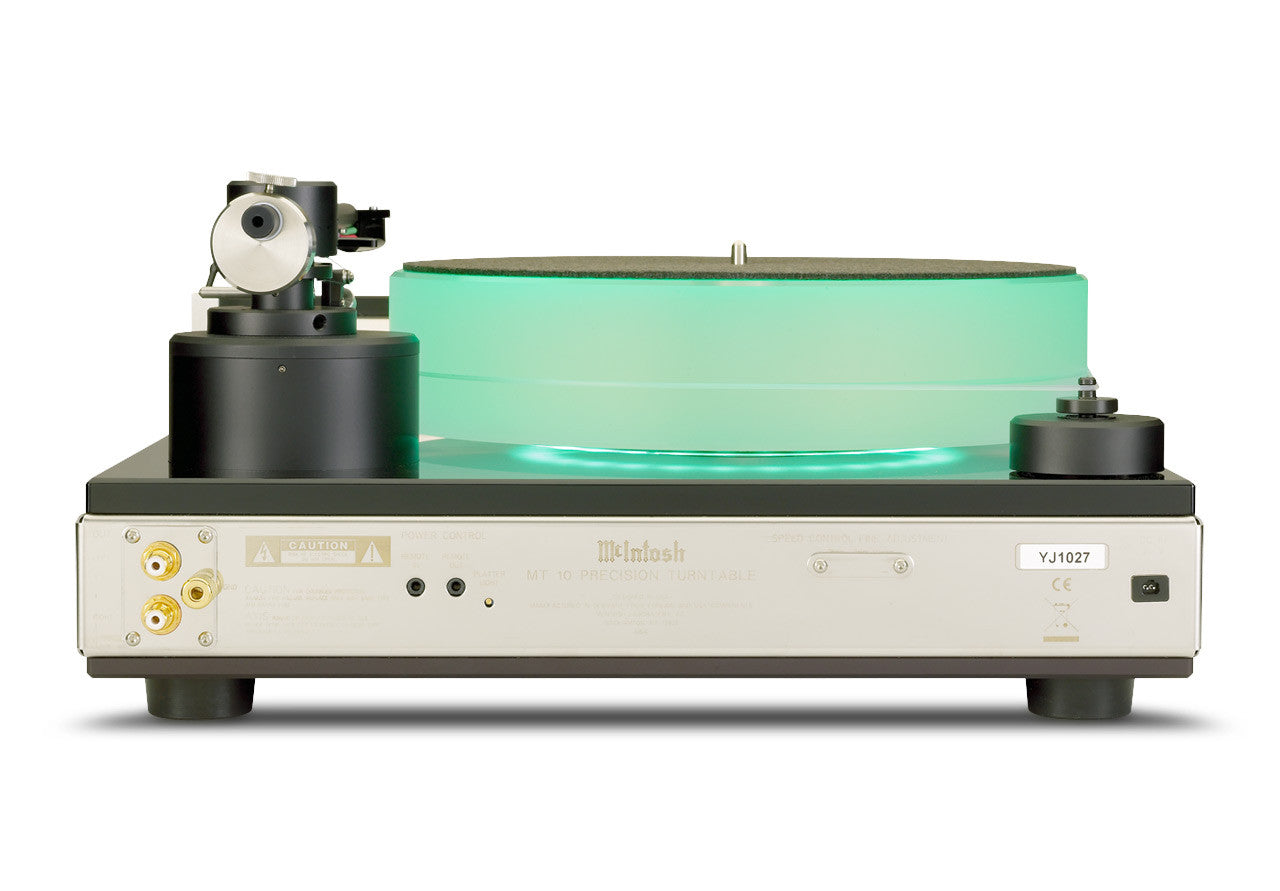

McIntosh MT10 2-Channel Precision Turntable

Description

Turntable

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a greater level of music with the McIntosh MT10.

Specifications

CARTRIDGE SPECIFICATIONS

• CARTRIDGE TYPE Moving Coil, Low Output
• OUTPUT LEVEL 0.5 mV at 5 cm/s
• LOAD IMPEDANCE 400 to 500 Ohms recommended
• FREQUENCY RESPONSE 20Hz to 50kHz
• CHANNEL SEPARATION Greater than 30dB at 1Khz
• COMPLIANCE 6 x 10-6 cm/dyne
• RECOMMENDED TRACKING FORCE 2.4 g
• CHANNEL DIFFERENCE Less than 0.3 dB at 1kHz
• TOTAL MASS 11 g
• STYLUS Elliptical Diamond
• CANTILEVER MATERIAL Aluminum

TONEARM SPECIFICATIONS

• BEARING Sapphire and Ceramic
• ARM TUBE Dural-Aluminum
• COUNTERWEIGHT Eccentric
• ADJUSTMENTS VTA, Antiskate, Azimuth

TURNTABLE SPECIFICATIONS

• PLAYBACK SPEEDS 33 1/3, 45 and 78 rpm
• MOTOR TYPE DC Brushless
• SPEED CONTROL Electronic w/ braking feature
• PLATTER Silicon Acrylic
• PLATTER BEARING Magnetic Suspended Ceramic

CONNECTIVITY

• STEREO OUTPUTS UNBALANCED 1

CONTROL

• POWER CONTROL INPUT Yes
• POWER CONTROL OUTPUT Yes
• PLATTER LIGHT Yes
• SPEED CONTROL FINE ADJUSTMENT Yes

GENERAL SPECIFICATIONS

• DUST COVER No

WEIGHTS & DIMENSIONS

• DIMENSIONS (W X H X D) 17-1/2″ (44.45cm) x 8-13/16″ (22.38cm) x 21″ (53.34cm) Note: Tone Arm Height will vary depending on the type of Cartridge installed.
• WEIGHT 42 lbs (19 kg)
