Description
RSM-650 Full Range 6.5in Outdoor/Indoor RSM Speaker Pair
The Klipsch RSM-650 speakers deliver vivid immersive sound and are designed for both indoor and outdoor use. These speakers provide exceptional audio clarity and durability, making them the perfect choice for residential spaces that demand high-performance sound in medium sized spaces.
Tractrix Hyperfold Port
Klipsch is all about high efficiency and low distortion. Building upon that legacy, they’ve introduced the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via a proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.
IPX5 Rated For Residential Environments

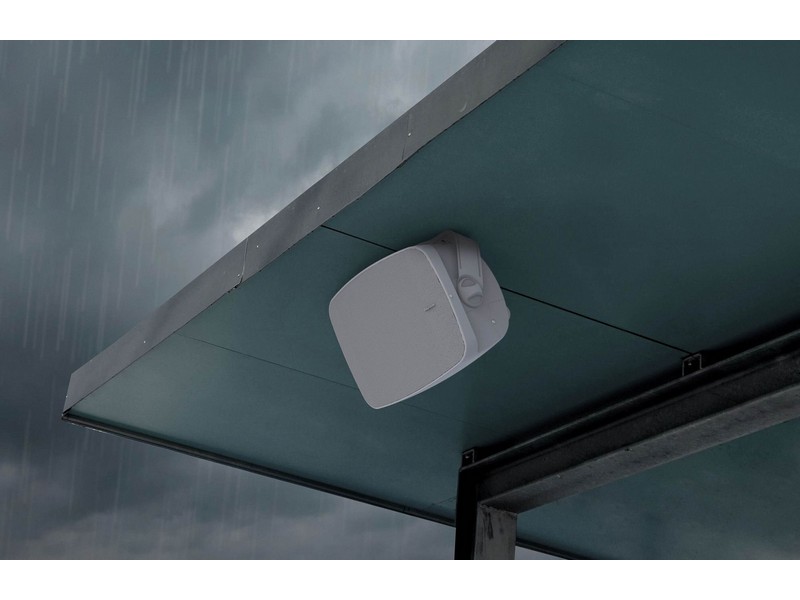

Perfect for indoor and outdoor residential installations, the Klipsch RSM-650 is IPX5 Rated. You will rest easy knowing your new speakers will be water resistant and rainproof in the most challenging residential environments.
2-Way Driver Design
The Klipsch RSM-650 loudspeaker utilizes a 2-way driver design that features a horn-loaded 1″ (25 mm) titanium dome tweeter and a 6.5″ (165 mm) polypropylene cone woofer for dynamic, full-range sound.
1″ Titanium Dome Tweeter
The RSM-650 outdoor speaker features an all-new 1″ horn-loaded titanium dome tweeter mounted on a floating driver bridge in the centre of the woofer. Using Klipsch patented technology and a wide dispersion phase plug, the horn-loaded titanium dome tweeter delivers a 100 x 100 degree dispersion pattern for a much wider soundstage.
6.5″ Polypropylene Cone Woofer
The Klipsch outdoor loudspeaker also houses a 6.5″ polypropylene cone woofer for articulate midrange and vivid bass performance outdoors.
ABS Enclosure with Aluminium Grille
The RMS-650 loudspeaker employs a rugged ABS enclosure for high performance outdoor sound. The included aluminium grille is mounted to the speaker cabinet with sets screws to ensure a secure fit regardless of the outdoor environment. The RMS-650 is available in a black or white finish. However, you can paint the enclosure and grille to better match your outdoor space.
Dual 5-Way Binding Post Terminals
The Klipsch RSM-650 outdoor speaker is outfitted with dual 5-way binding post terminals that will accommodate bare wire (up to 12AWG). The binding posts are located on the back of speaker enclosure behind the mounting bracket and are protected by a removable cover. The cover features a rubberized opening for the speaker wire to pass through.
Mounting Options

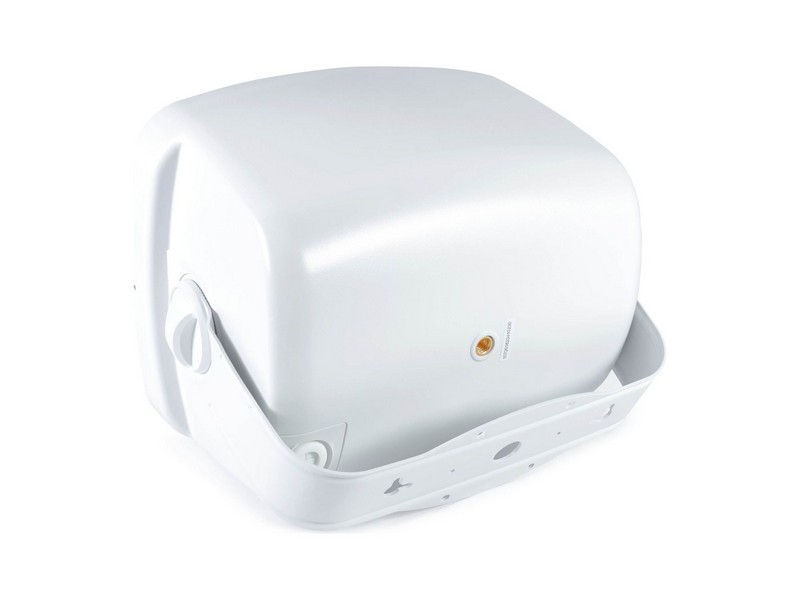

The Klipsch RSM-650 speaker can be mounted outdoors or indoors using the included bracket system. The mounting bracket system is corrosion resistant powder coated zinc and offers great placement flexibility. It allows you to rotate the speaker almost 180 degrees after it’s been mounted, letting you direct the sound to different areas as needed. If the speaker is mounted vertically, the bracket allows it to swivel side to side. If the speaker is mounted horizontally, the bracket allows it to swivel up and down. The speaker’s shape and mounting bracket design even makes corner placement easy.
Features:
- Indoor/Outdoor Residential Surface Mount Loudspeakers – Sold as a Pair
- Dual Concentric 1″ Horn-Loaded Titanium Dome Tweeter and 6.5″ Polypropylene Cone Woofer
- All Weather ABS Plastic Paintable Cabinet, IPX5 Weather Resistant
- Tractrix® Hyperfold Port™ for Clear, Powerful Bass, Adjustable “C-Style” Bracket for Easy Wall-Mounting
Specifications:
- Design: Indoor/Outdoor Residential Surface Mount Loudspeakers – Sold as a Pair
- Tractrix® Hyperfold Port™ for clear, powerful bass
- Paintable Cabinet made of all-weather ABS plastic
- IPX5-Rated Weather-Resistant
- Detachable Grilles with set-screws for a secure fit
- Rotating Logo for horizontal or vertical installation
- Adjustable “C-style” Bracket for easy wall-mounting
- Frequency Response: 56Hz-20kHz +/- 4dB, 46Hz -10dB
- Power Handling: 80 Watts 53Hz-10kHz (320 Watts peak)
- Maximum Continuous Output: 106dB
- Sensitivity: 90dB
- Coverage: 100° +/- 20° 900Hz-20kHz
- Directivity Index: 7dB +/- 1.5dB 800Hz-20kHz
- Nominal Impedance: 8 Ohms, 4.5 Ohms at 160Hz minimum
- Acoustic Crossover: 2kHz
- 5″ (165 mm) Injection-Moulded Polypropylene Woofer
- 1” (25 mm) Titanium Compression Driver, on a K-1200M Horn/Tweeter Bridge
- Enclosure Material: All Weather ABS Plastic, Paintable
- IP Rating: IPX5 Weather Resistant
- Enclosure Tuning: Vented via 3 Folded Tractrix Ports
- Input Connectors: Dual 5-Way Binding Posts
- Available Finishes: Black, White
- Dimensions (WxHxD): 326 x 259 x 193 mm
- Weight 5.11 kg each
