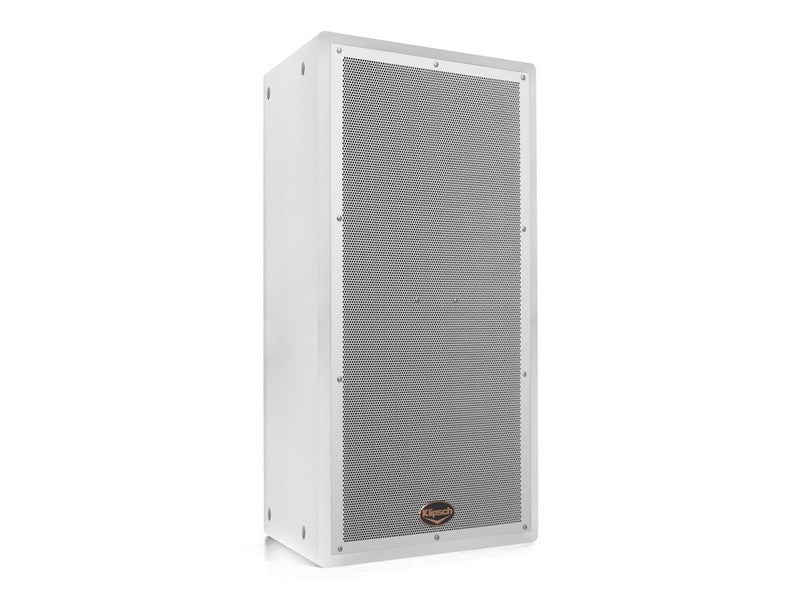

KLIPSCH KI-396-SMA-II High Output 15″ 2-way Loudspeaker Single
This is a special order. Delivery is estimated to be after 2-3 months from the time of order.
The Klipsch KI-396 has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15″ high-excursion cast frame heavy-duty woofer, a large 3″ titanium high-frequency compression driver and a 90″x60″ Tractrix® Horn for tight pattern control.
The KI-396 permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes an internal high current full-range crossover.
The loudspeaker enclosure is constructed using a 3/4” 7-ply birch plywood, and a 1” medium density fiberboard front motorboard. The KI-396-SMA-II is available in black or white using a laquer-based finish, or unfinished Raw Birch.
Features:
- High performance 15″ 2-way passive enclosure
- Trapezoidal enclosure
- 90×60 hybrid tractrix horn
- Sixteen 3/8″-16 suspension points
Specifications:
- FREQUENCY RESPONSE1 (+/- 3 dB) 60 Hz – 18 kHz (-10 dB @ 35 Hz)
- POWER HANDLING2 600 watts (56V)
- 2400 watts peak
- MAXIMUM SPL3 127 dB Continuous
- 133 dB Peak
- SENSITIVITY4 101 dB
- COVERAGE Horizontal: 90° +/- 30º 400 Hz – 13 kHz
- Vertical: 60° +/- 20º 1.6 kHz – 20 kHz
- DIRECTIVITY INDEX (DI) 8 dB +/- 2 dB 1.6 kHz – 20 kHz
- DIRECTIVITY FACTOR (Q) 6.3
- NOMINAL IMPEDANCE 8 ohms, minimum 5.1 ohms @ 112 Hz
- CROSSOVER FREQUENCY 1 kHz
- COMPONENTS One K-48-ST 15″ woofer
- One K-691 3” titanium compression driver
- on a K-510 horn
- INPUT CONNECTION Two point barrier strip
- MOUNTING OPTION Sixteen 3/8”-16 flypoints
- BRACKET MOUNT One attachment point for C-bracket
- Top and Bottom: 3/8”-16
- ENCLOSURE MATERIAL 3/4″ 7-ply birch plywood cabinet
- 1” MDF motorboard
- HEIGHT 34.3” (87.12cm)
- WIDTH 19.8” (50.29cm) front
- 6.8” (17.27cm) rear
- DEPTH 16” (40.64cm)
- WEIGHT 76 lbs. (34.54kg)
- FINISHES Black, White and Raw Birch finish
