Description

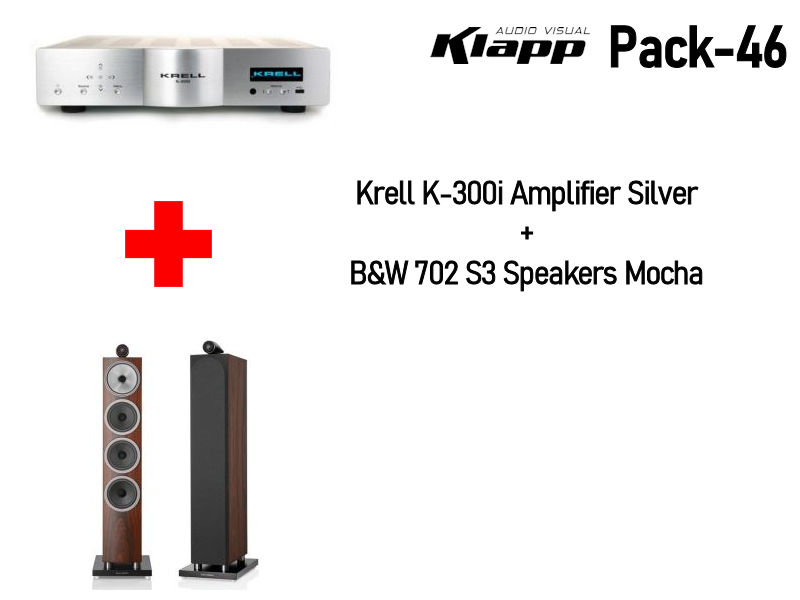

KLAPP AV Pack-46 B&W 702 S3 Speakers Mocha + Krell K-300i Amplifier Silver
Please call us on 1300 668 398 for details or further information.

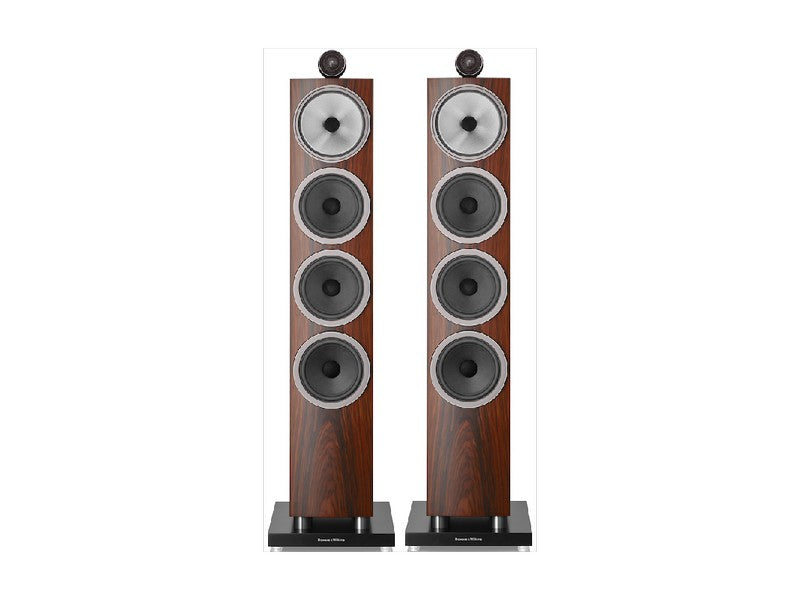

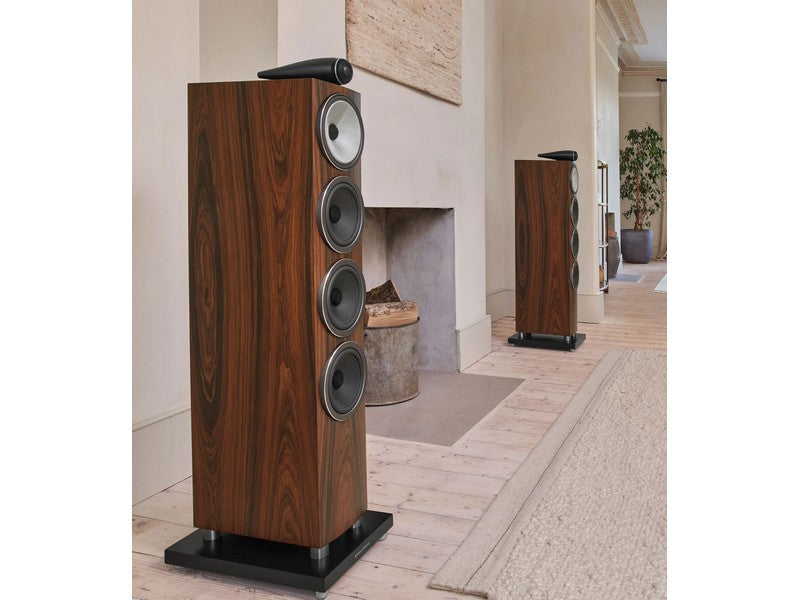

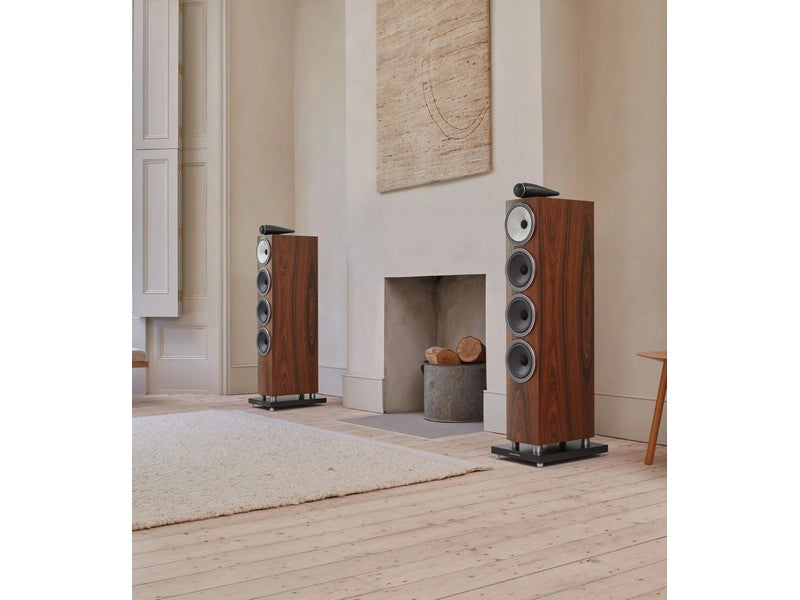

About Bowers & Wilkins 702 S3 Floor Standing Speaker Pair
B&W 702 S3’s Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, while with its new downward-firing port configuration and trio of Aerofoil Profile bass cones, it delivers bass that’s both profoundly deep and endlessly articulate.
Goosebumps guaranteed
Our flagship, the 702 S3, is a state-of-the-art floor-standing speaker that defines new standards for performance in its class. If you want the best, this is it.
A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
SPECIFICATIONS
Dimensions
Height: 1010 mm (39.8 in) cabinet only
1138 mm (44.8 in) including tweeter and plinth
Width: 192 mm (7.6 in) cabinet only
290 mm (11.4 in) including plinth
Depth: 354 mm (13.9 in) cabinet only
391 mm (15.4 in) including grille and terminals
410 mm (16.1 in) including plinth
Net weight
33.46kg (73.8 lb)
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
3-way vented-box system
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
28Hz to 33kHz
Frequency response
46Hz – 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz – 28kHz
<0.5% 110Hz – 20kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
30W – 300W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Cabinet finishes
Gloss Black
Satin White
Mocha
Grille finishes
Black
Grey (Satin White only)

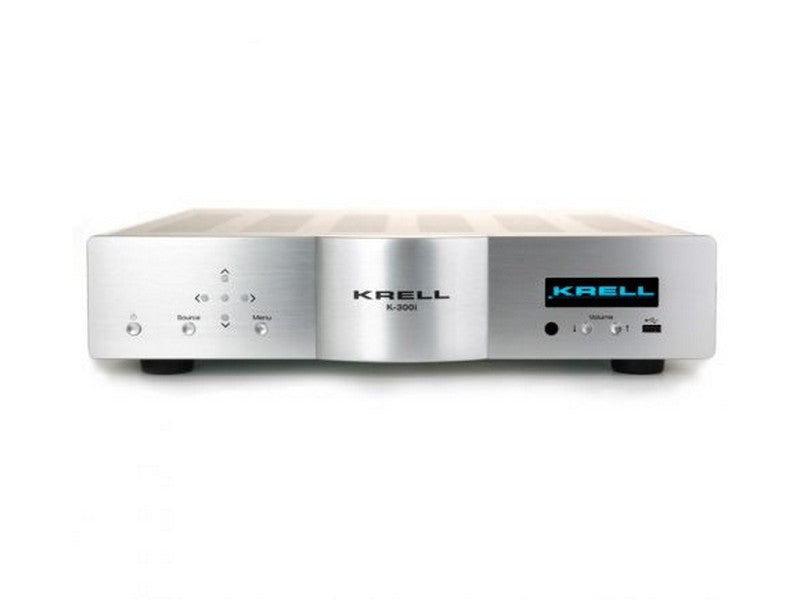

About Krell K-300i Amplifier Silver
The K-300i amplifier incorporates a newly developed amp circuit design with Krell iBias™ technology.
It delivers 150 Watts/Channel into 8Ω and 300 Watts/Channel into 4Ω.
iBias provides the sonic benefits of Class A operation without the excessive heat and power consumption of traditional Class A design.
Features:
- CLASS A AMPLIFICATION
- MASSIVE 150 WATTS OF POWER PER CHANNEL
- iBIAS & XD TECHNOLOGY
- COMPATIBLE WITH NETWORKING STREAMING APPS INCLUDING SPOTIFY, TIDAL
Packed with Krell’s latest technological advances, the K-300i achieves an extraordinary level of musicality. It’s elegant design is living room-friendly, while delivering more than enough power to achieve incredibly lifelike dynamics with any speaker.
The overall result is an extremely linear and extended frequency response curve with smooth, effortless highs and extremely dynamic bass energy.
With the digital option installed the K-300i becomes a world class DAC with the connectivity and features to support the latest digital music formats. An ESS Sabre Pro DAC configured for high current output performs the digital to analog signal conversion for uncompromised reproduction of digital music.
771VA transformer with 80,000μF of capacitance forms a potent power supply for excellent signal control and dynamics. Krell Current Mode topology is employed with fully differential circuitry that runs from the input stage through to the last output gain stage providing an extremely linear and extended frequency response curve with smooth, effortless highs and extremely dynamic bass energy.
The front-panel menu system provides configuration features such as input trim. Theater Throughput mode lets the K-300i serve as the core of a surround-sound system without sacrificing two-channel sound quality. Analog Inputs include three stereo RCA and two stereo balanced XLR. High-quality gold-plated speaker cable terminals provide a secure, electrically ideal connection.
The K-300i also offers features that make it perfect for custom installation, such as RS-232 and Ethernet ports for control and status feedback, 3.5mm jacks for IR input, and 12-volt trigger input and output. Additionally, the unit has an internal web server that is optimized for tablets and provides a remote graphical user interface for convenient and intuitive control accessed through its Ethernet connection.
A network streaming audio renderer with dedicated mobile App plays AAC, ALAC, AIFF, FLAC, WAV, WMA, and DoP files up to 192kHz/24-bit from UPnP music servers or NAS devices. The digital option with the mconnect Control app (available in iOS and Android versions) also provides Spotify*, vTuner Internet radio, Tidal*, Deezer*, and QoBuz* streaming services, is Roon Ready* and decodes MQA.
The K-300i includes MQA (Master Quality Authenticated) technology. MQA is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
HDMI 2.0 inputs and output supporting 4K UHD with HDR are available for TV viewing with audiophile grade sound quality. A single USB host port is available on the front panel to play music from USB flash memory sticks and a USB device port is positioned on the rear panel for streaming music directly from a computer. The digital option also includes a Bluetooth receiver featuring Qualcomm® aptX™ audio technology for the best sound quality when connected to aptX enabled Bluetooth devices.
SPECIFICATION:
Analog Inputs 2 pr. balanced via XLR connectors
3 pr. single-ended via RCA connectors
Digital Inputs 1 EIAJ Toslink Optical
1 S/PDIF Coax
2 HDMI (HDMI 2.0a, HDCP 2.2) + 1 HDMI Output
1 USB-A (USB 2.0 host)
1 USB-B (USB 2.0 audio device)
1 Bluetooth with aptX
Outputs 1 pr. preamp outputs via RCA connectors
1 pr. speaker outputs via gold-plated binding posts
Control Inputs 1 RS-232 input via 9-pin D-subminiature connector
1 remote IR detector input via 3-conductor 3.5 mm connector
1 12 VDC trigger input via 2-conductor 3.5 mm connector
Control output 1 12 VDC trigger output (60 mA maximum current) via 2-conductor 3.5 mm connector
Input impedance Balanced: 16 kΩ
Single-ended: 8 kΩ
Frequency response 20 Hz to 20 kHz +0, -0.22 dB
<10Hz to 100kHz +0, -0.57 dB
Signal-to-noise ratio >104 dB, wideband, unweighted, at 2V RMS in balanced, referred to full power output
>117 dB, “A”-weighted
Gain 25 dB, referenced to 2V RMS in balanced and full power output
Input Overload 10.4 V RMS Balanced
6.8 V RMS Single-ended
Total harmonic distortion <0.015%, 1 kHz, 150 W, 8 Ω load
<0.08%, 20 kHz, 150 W, 8 Ω load
Output power 150 W RMS per channel at 8 Ω
300 W RMS per channel at 4 Ω
Output voltage 98 V peak to peak
34.6 V RMS
Slew rate 46 V/µs
Output impedance <0.023 Ω, 20 Hz
<0.035 Ω, 20 Hz to 20 kHz
Damping factor >347, 20 Hz, referred to 8 Ω
>228, 20 Hz to 20 kHz, referred to 8 Ω
Power consumption Standby: 11 W
Idle: 46 W
Maximum: 900 W
Heat output Standby: 37 BTU/hr
Idle: 156 BTU/hr
Maximum: 3060 BTU/hr
Dimensions 17.25 in W x 4.12 in H x 18.00 in D
438 mm W x 105 mm H x 457 mm D
Weight Unit only: 52 lb [23.6 kg]
As shipped: 60 lb [27.3 kg]
Digital Module Specs Coaxial and HDMI inputs support PCM up to 24-bit/192kHz.
Optical input up to 24-bit/96kHz
HDMI inputs support DSD and 4K video content.
HDMI output supports Audio Return Channel (ARC)
USB and Network streaming support MP3, AAC, WMA, WAV(PCM), FLAC, ALAC up to 192kHz
Bluetooth streaming supports A2DP, AVRCP, HFP, HSP
