Description
AVM Ovation SA 6.3 Stereo Power Amplifier
The AVM Ovation SA 6.3 is a high-end stereo power amplifier designed for demanding loudspeakers and uncompromised two-channel systems. Its Class A/AB MOSFET architecture delivers more than 200 watts per channel into 8 ohms and 350 watts per channel into 4 ohms, while 20 MOSFET transistors per channel provide very high current capability.

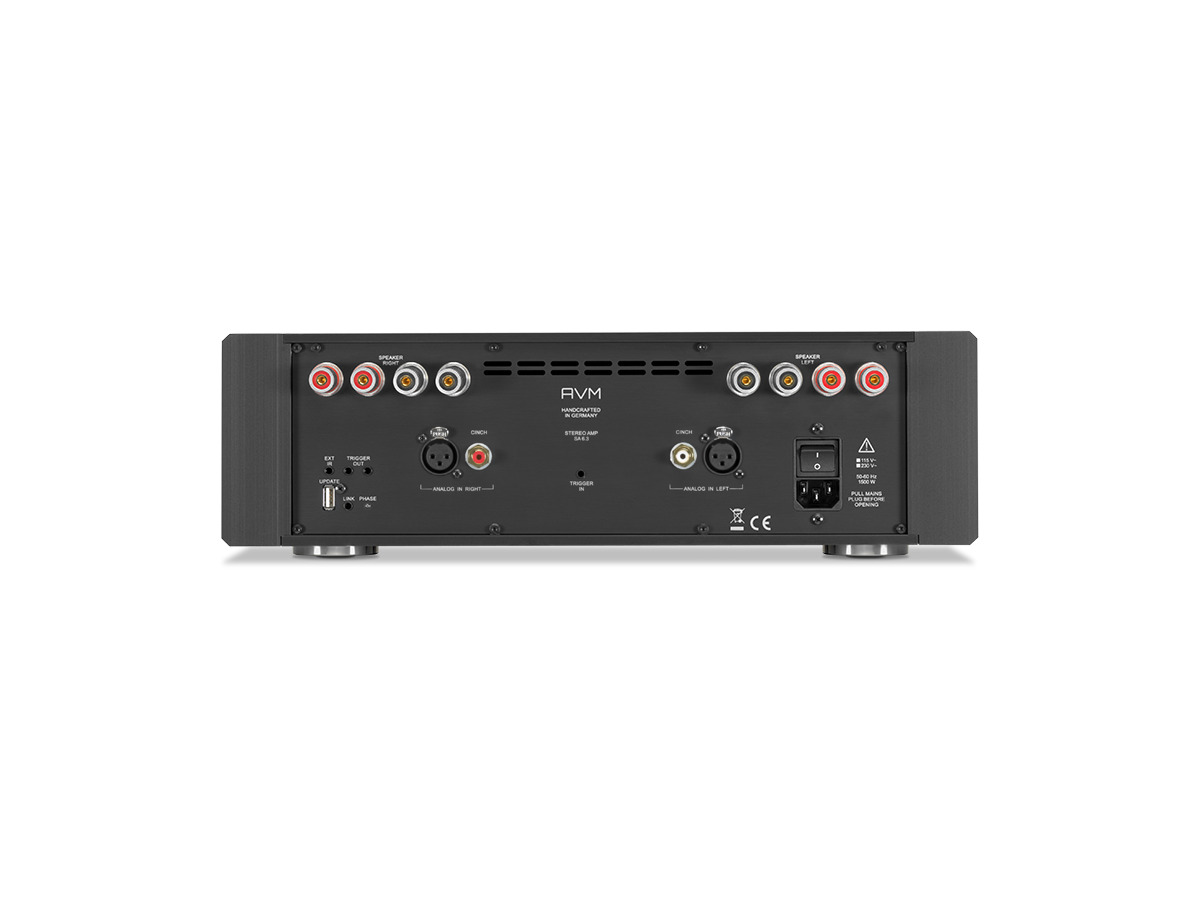

A 1000 VA toroidal transformer and three separate power supplies serve the power amplifier, processor and input circuitry independently. Fully balanced, DC-coupled input stages are designed to minimise noise and distortion, while RCA and XLR inputs provide flexible system matching. Two separately switchable speaker pairs are supported.

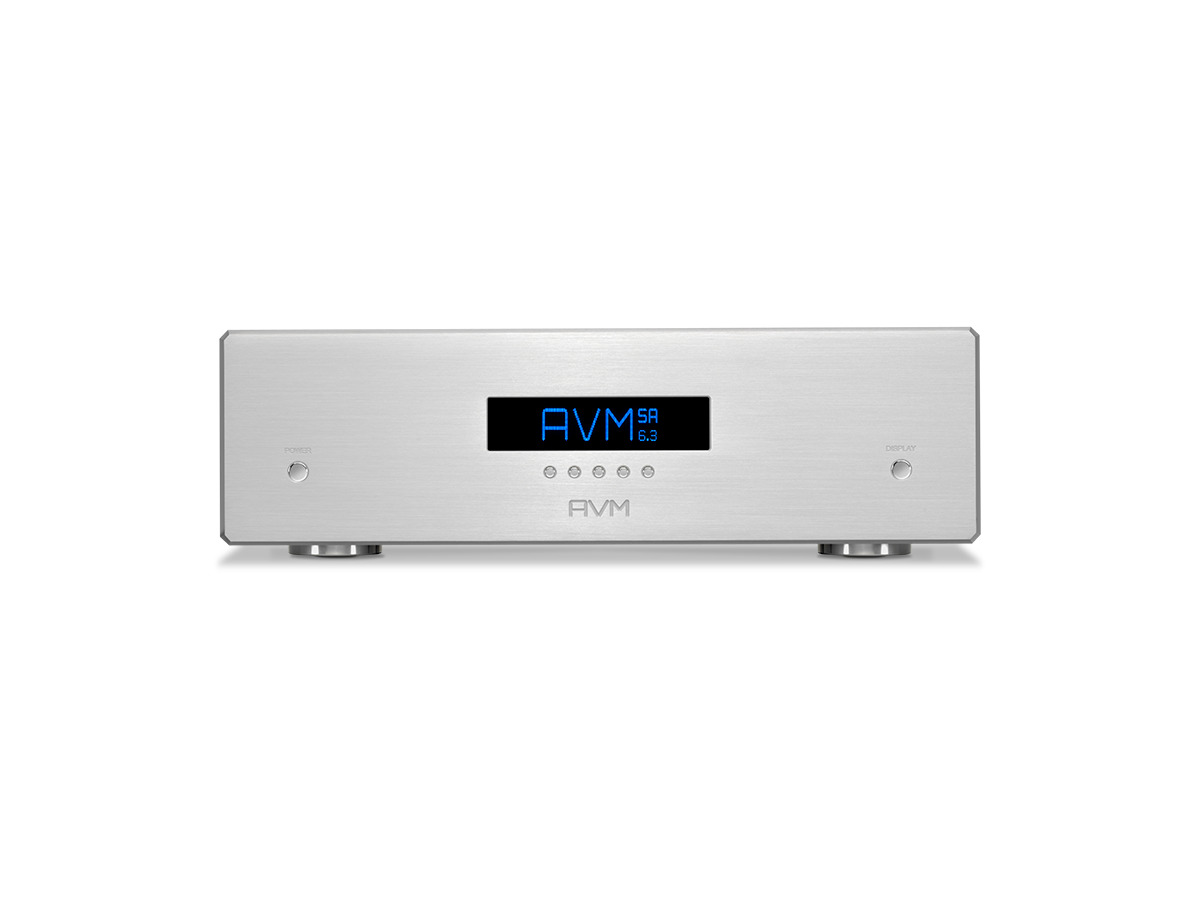

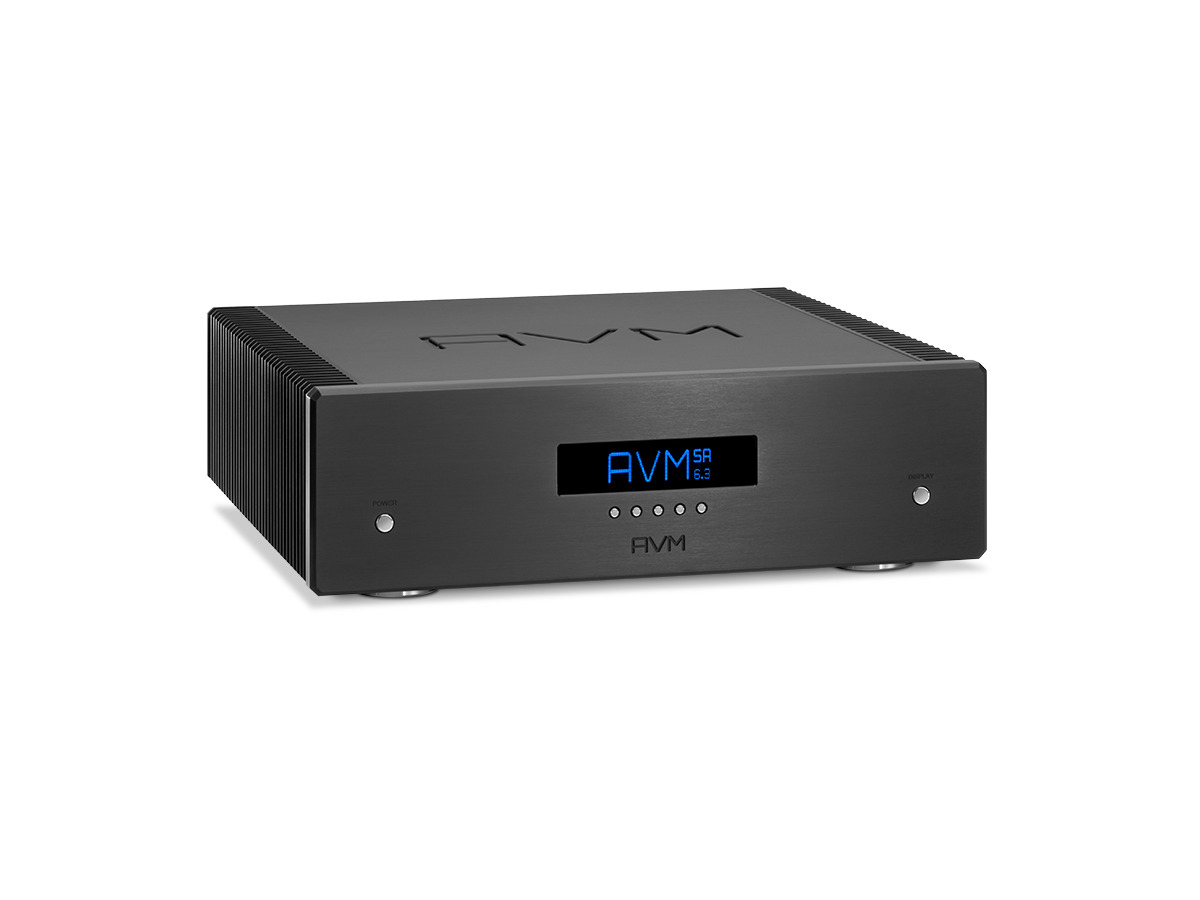

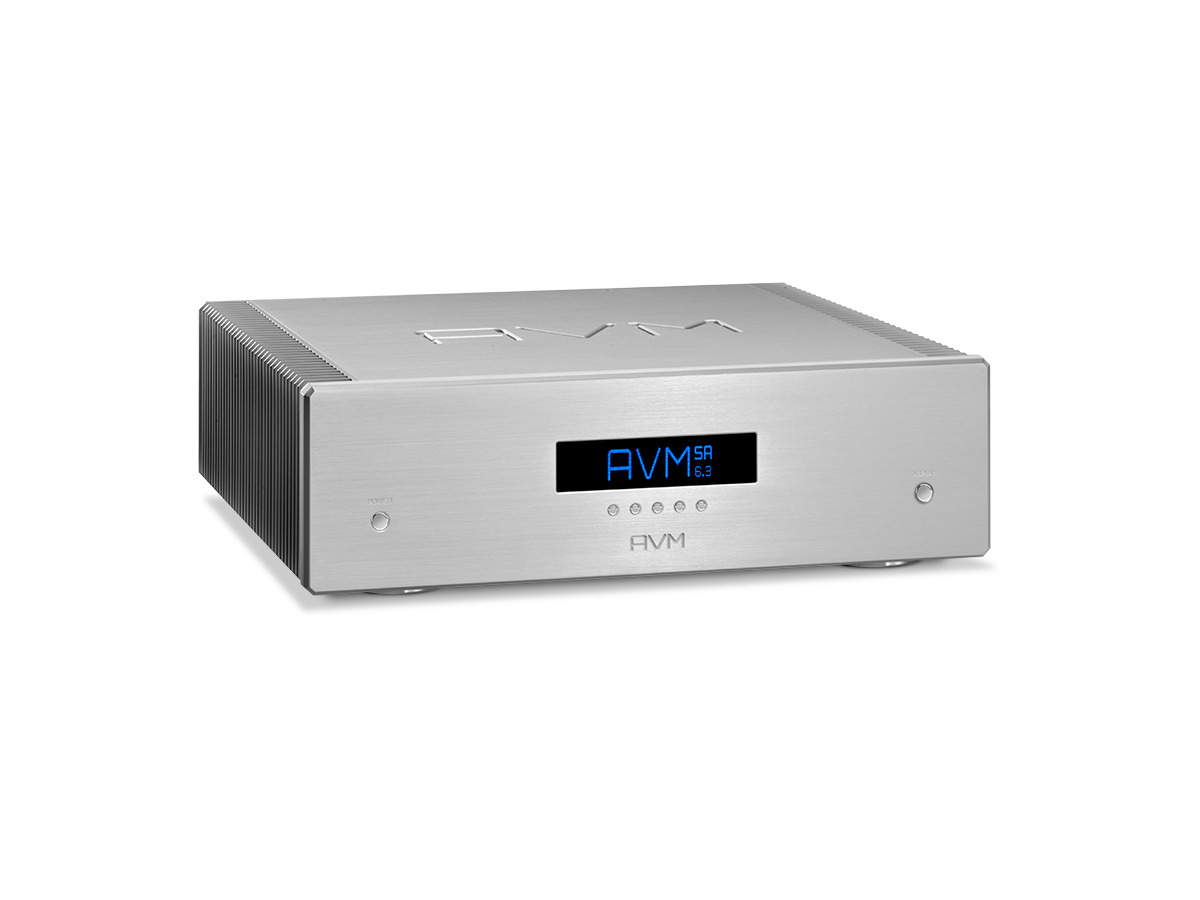

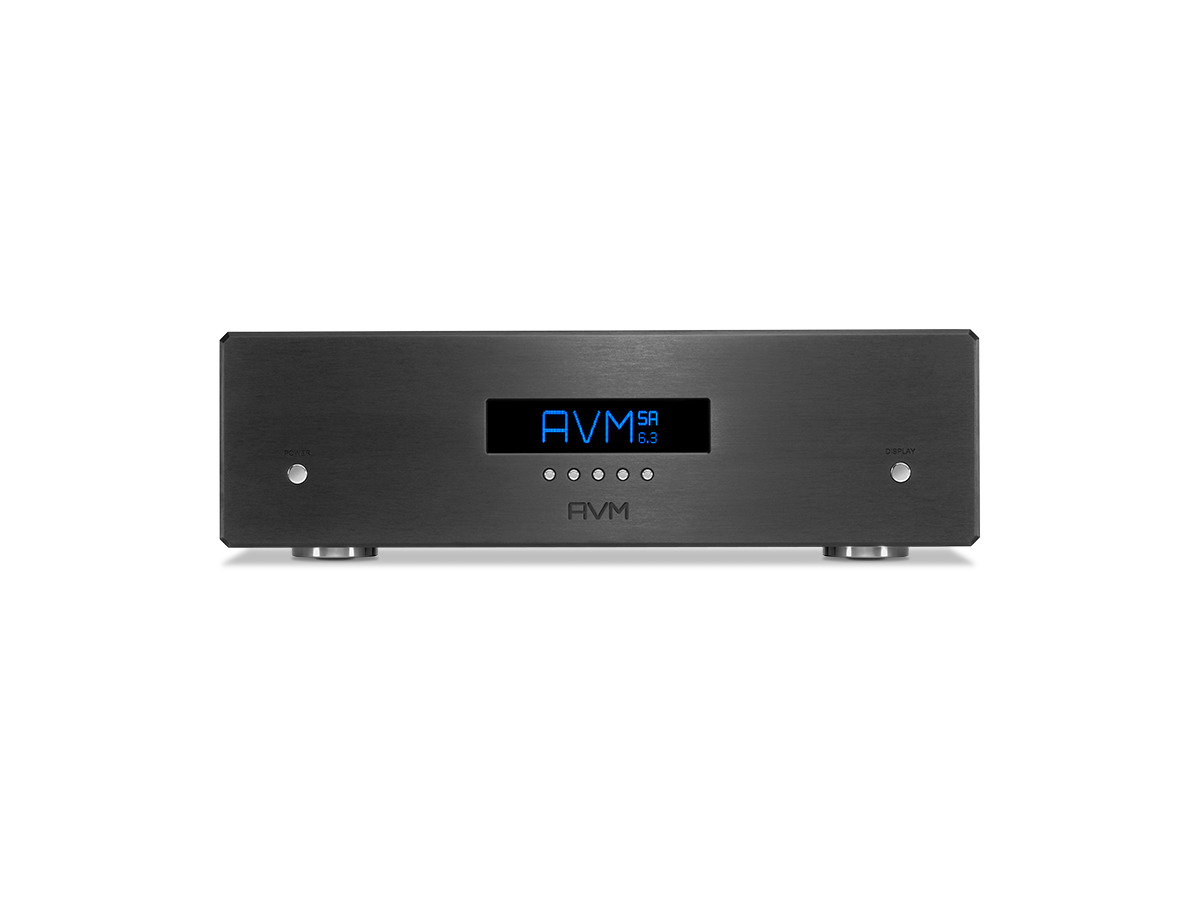

The aluminium chassis is available in Silver, Black or Cellini chrome-front finish. Each unit is handcrafted and tested at AVM’s factory in Malsch, Germany.
- Type: Stereo MOSFET power amplifier
- Amplification: Class A/AB High Current
- Output power: 2 x 350 W into 4 ohms / 2 x 200 W into 8 ohms
- Input impedance RCA / XLR: 6.8 / 14 kOhm
- Signal-to-noise ratio: 101 dB(A)
- Frequency response: <5 Hz to 100 kHz
- THD at 25 W / 4 ohms: <0.01%
- Damping factor: >500
- Power supply: 120/230 V, 50/60 Hz
- Maximum power consumption: 1000 W
- Standby: <0.5 W
- Dimensions: 430 x 130 x 390 mm
- Weight: 21 kg
