Description

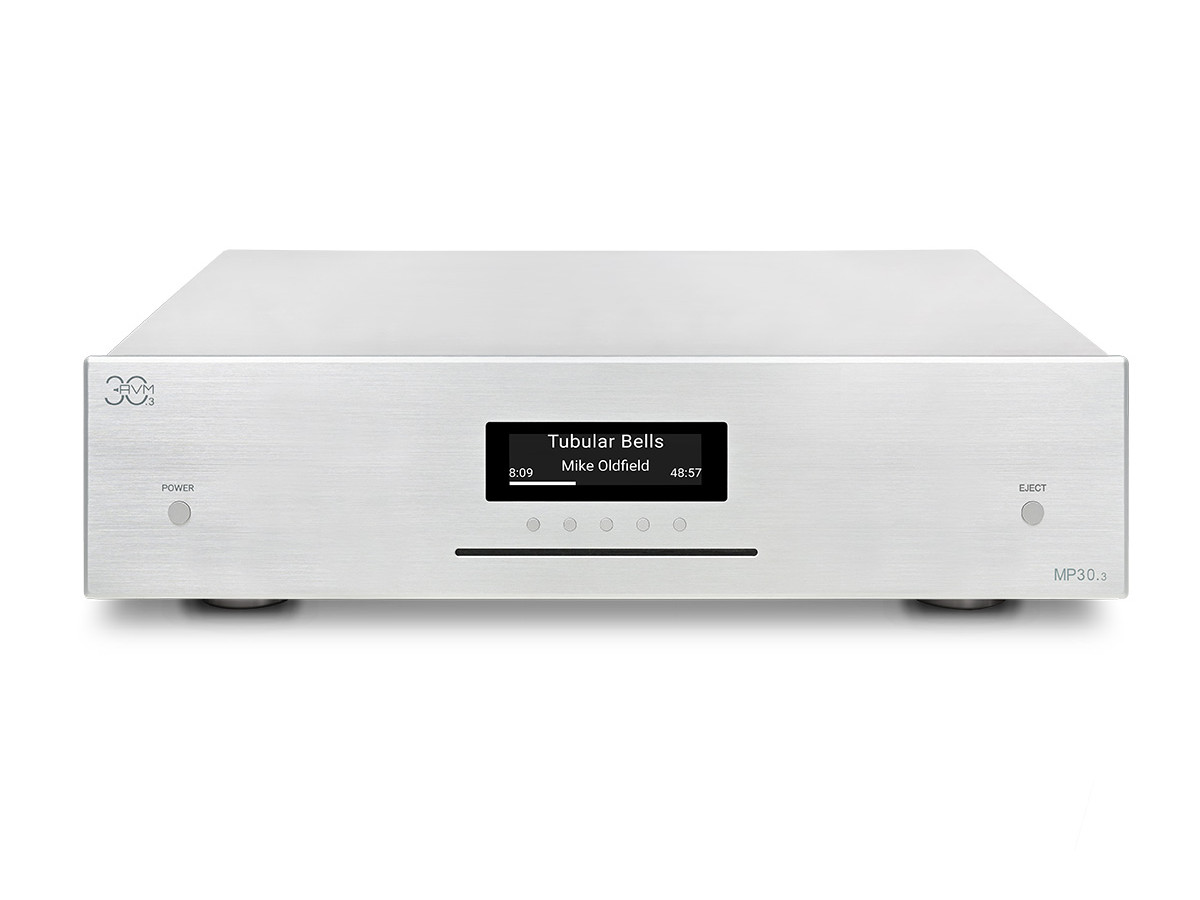

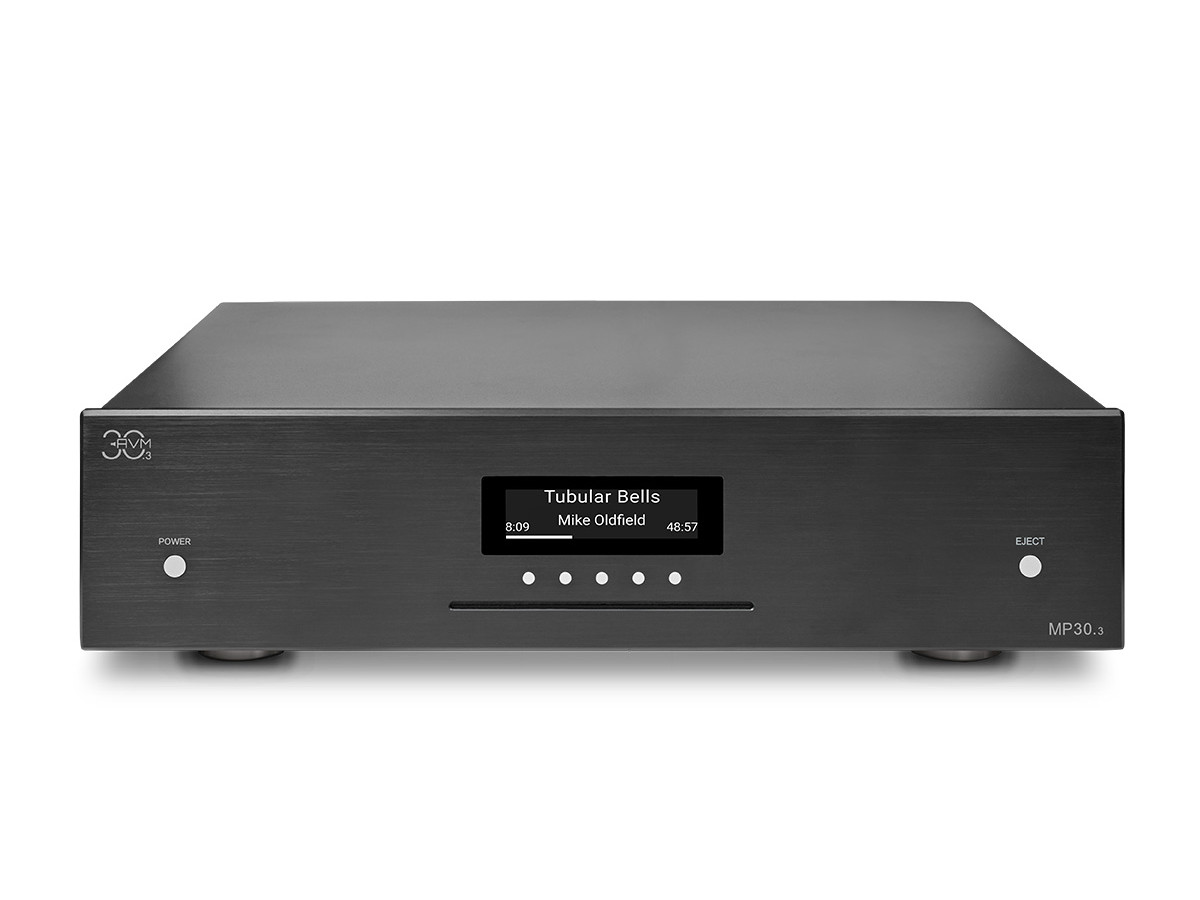

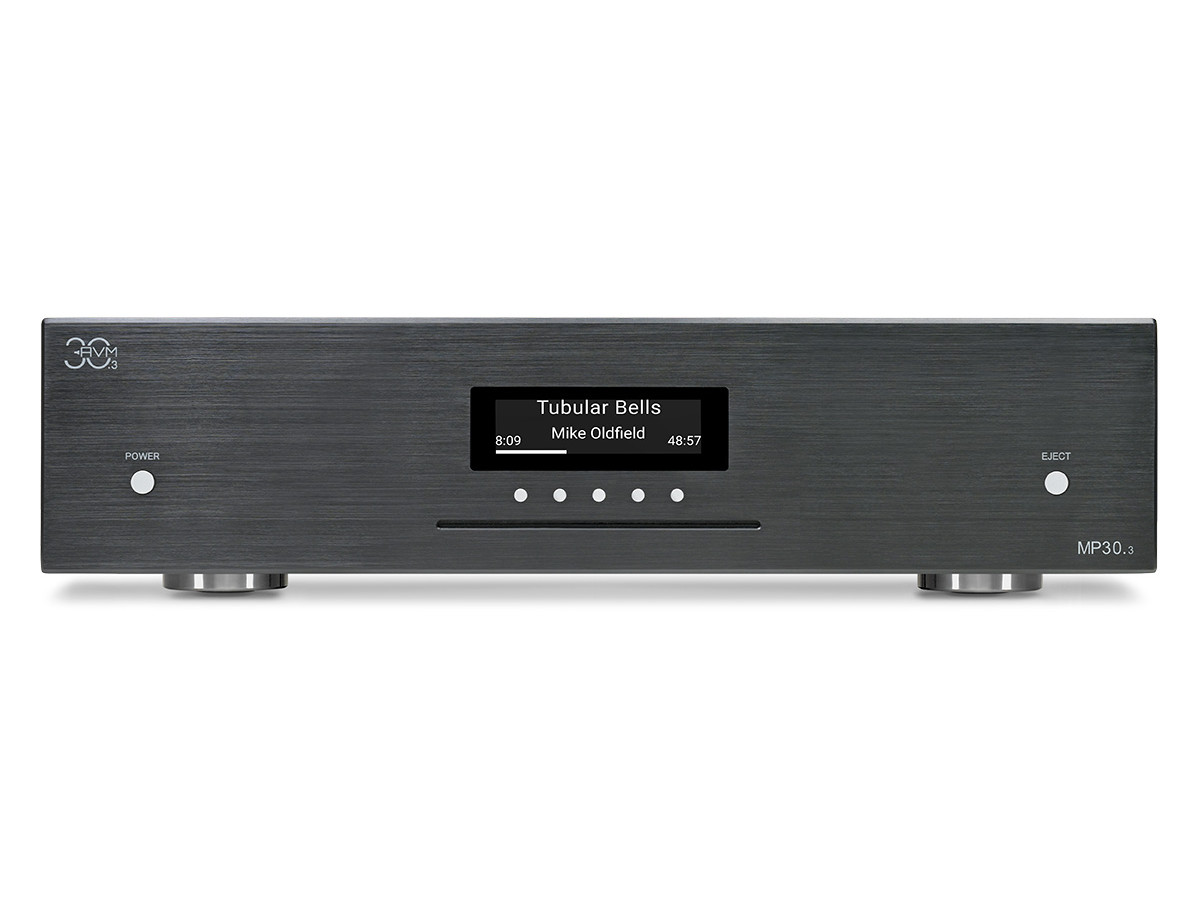

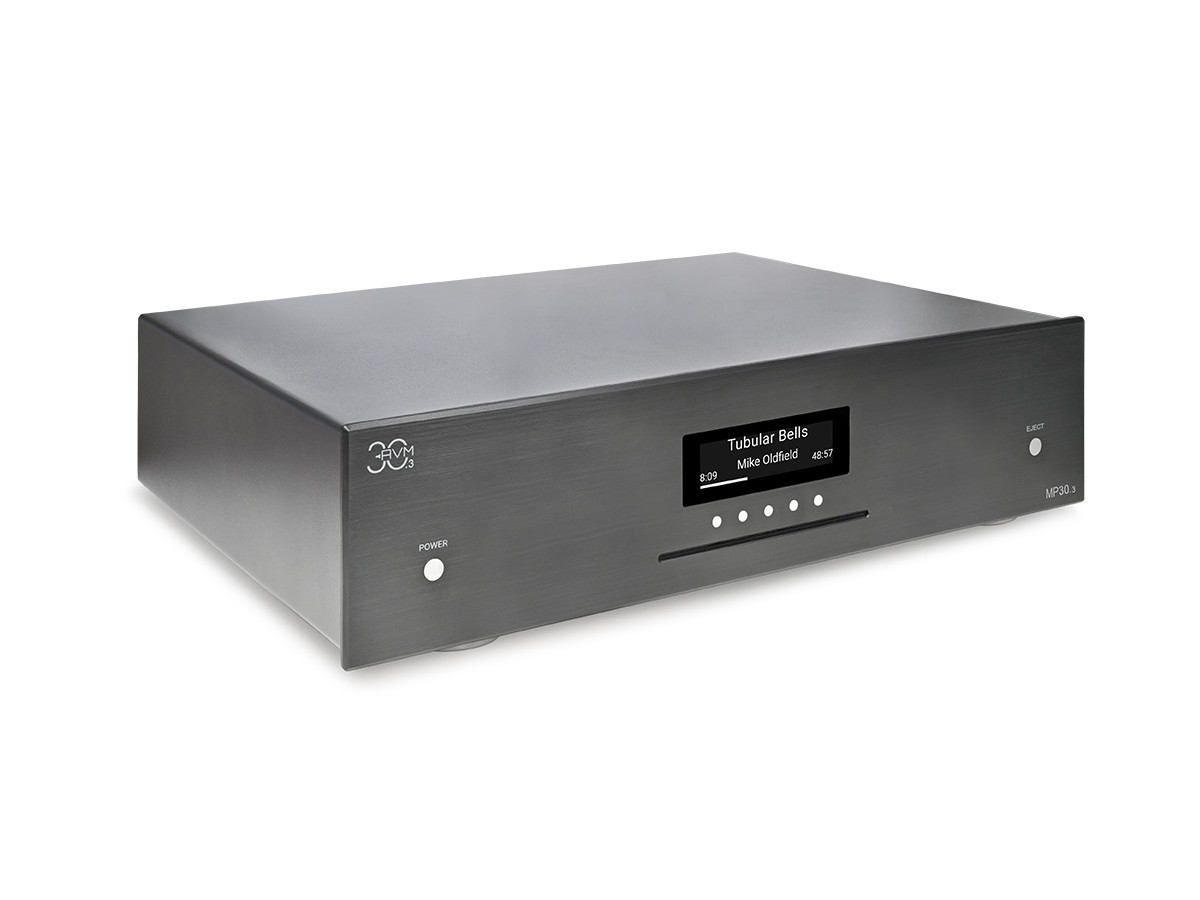

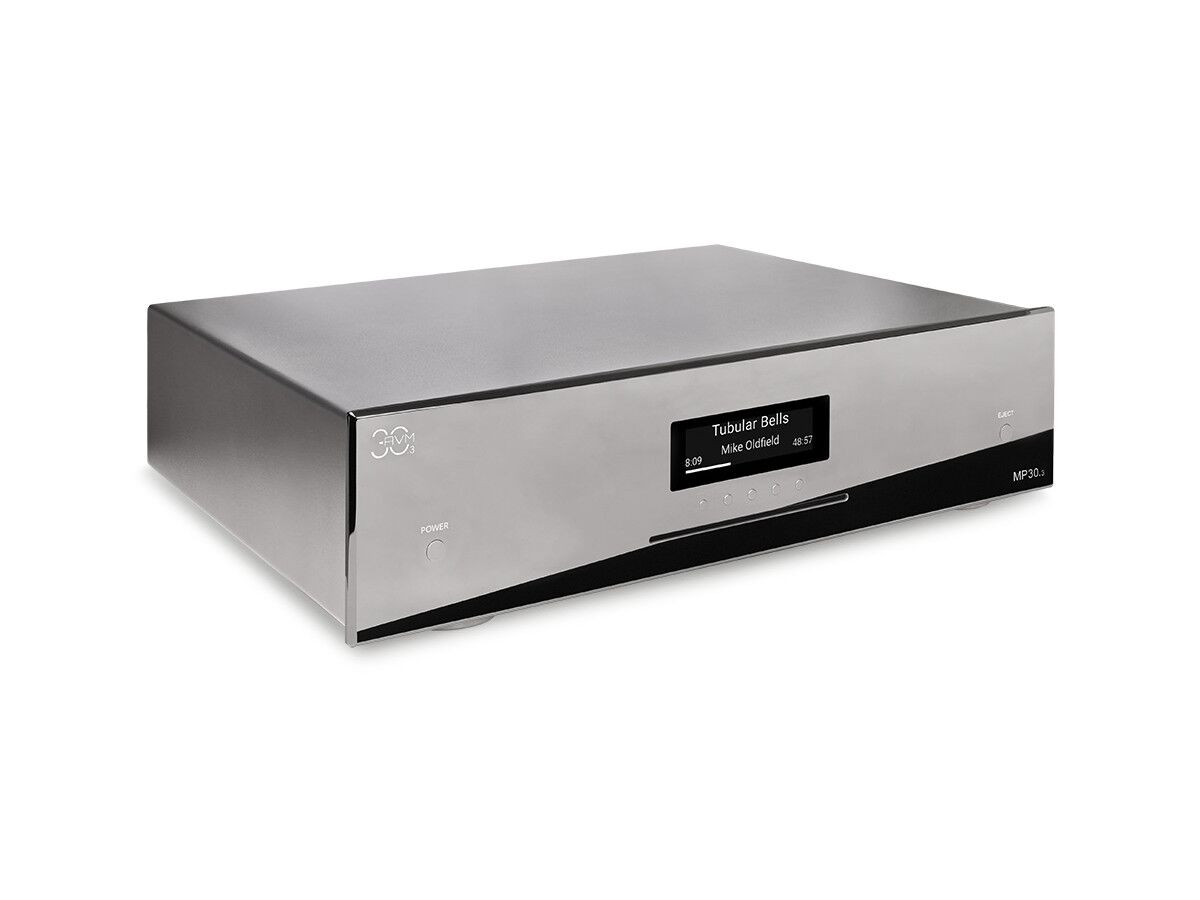

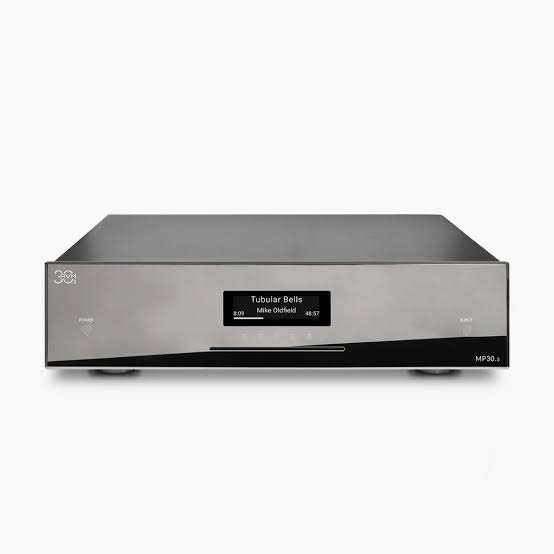

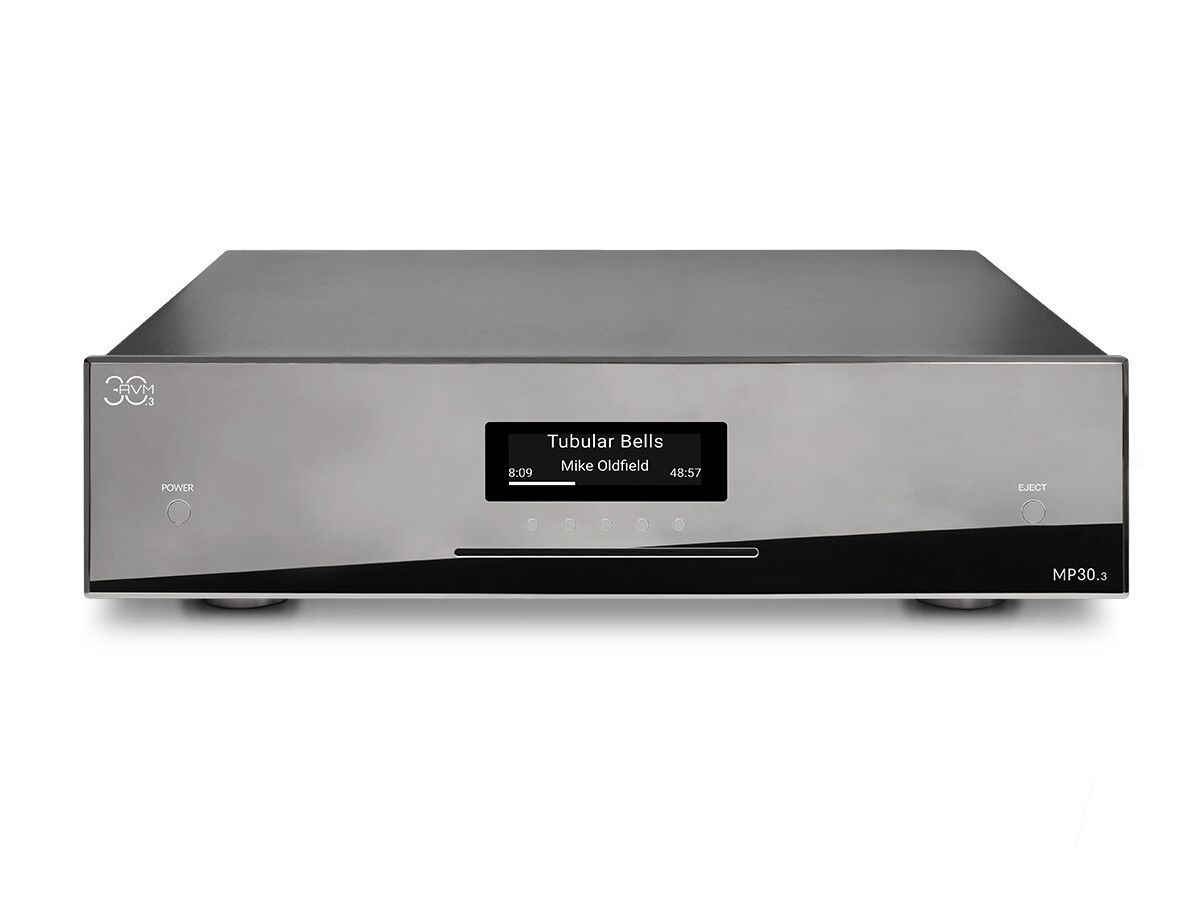

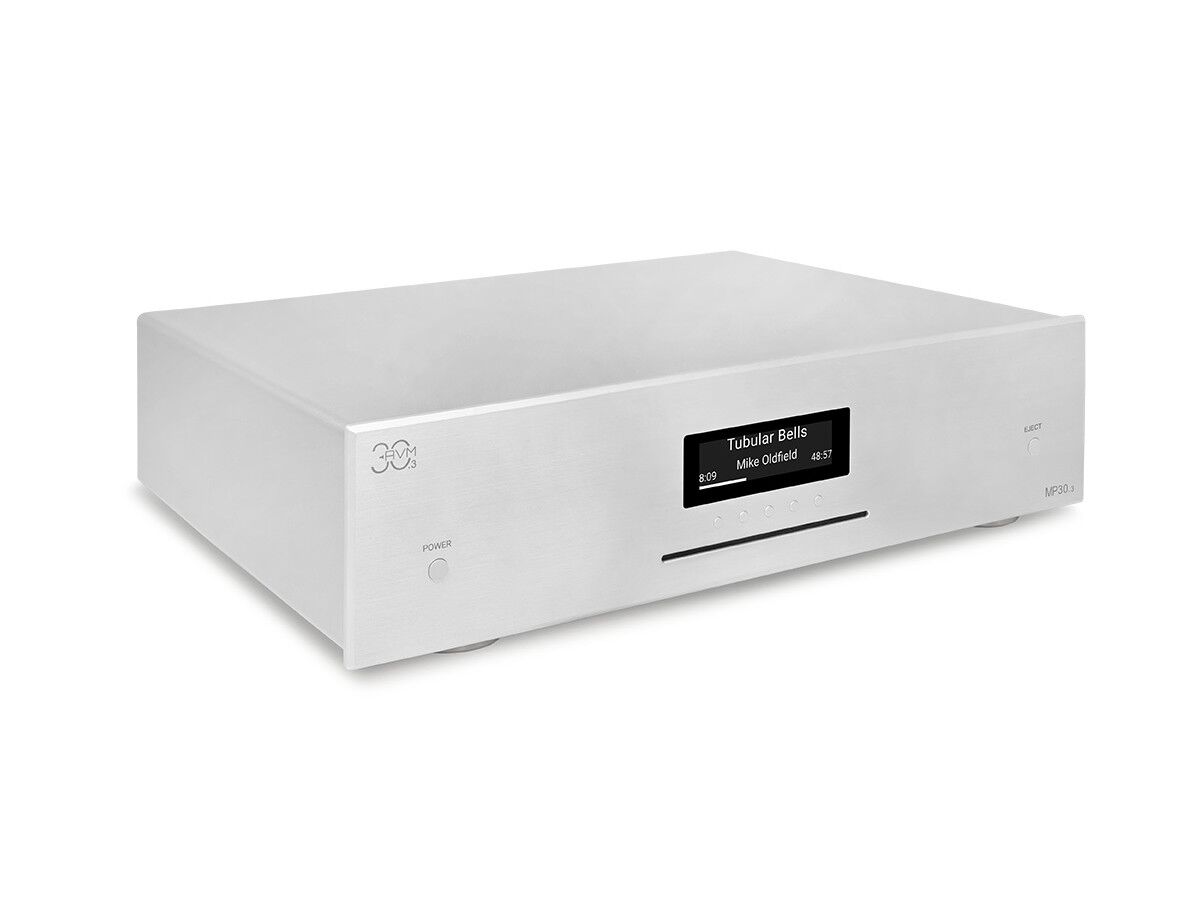

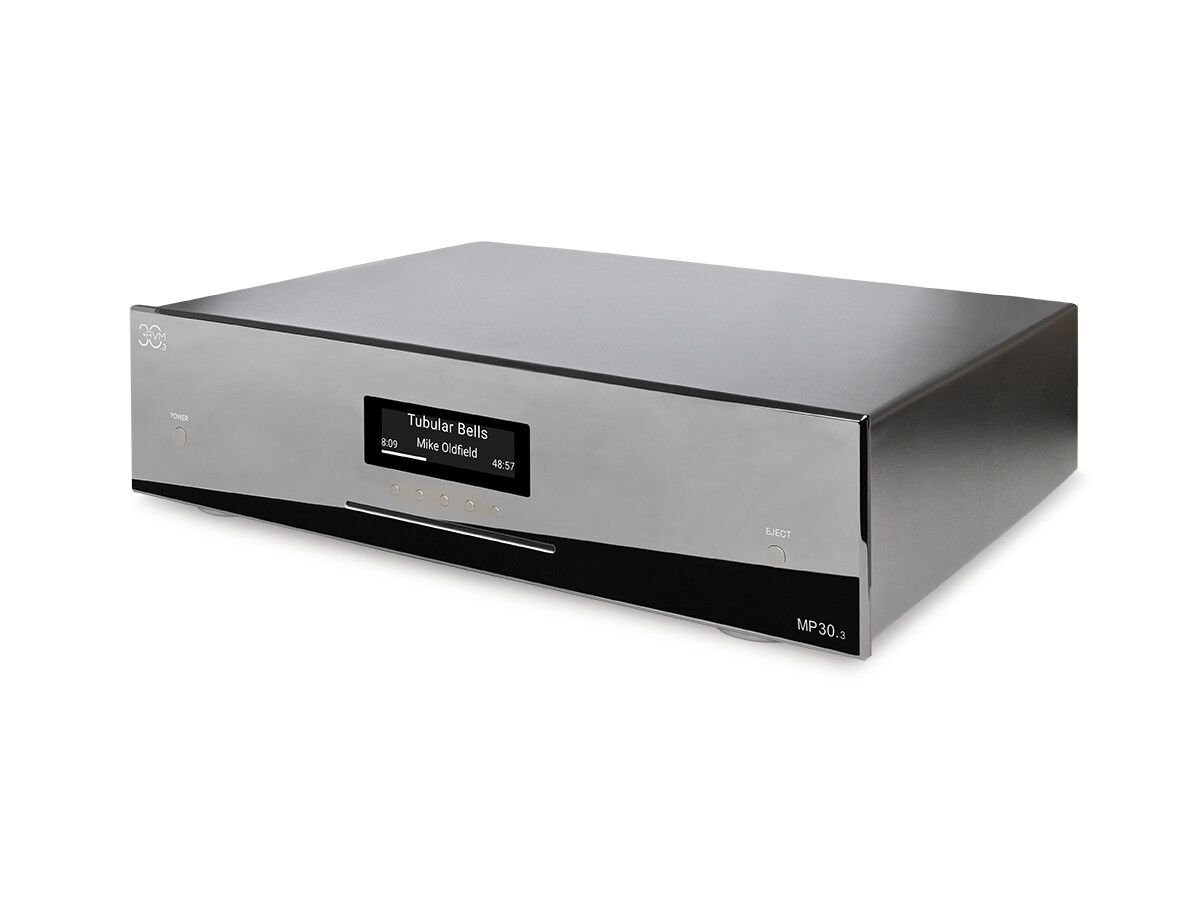

The AVM MP 30.3 is a dedicated source component combining high-resolution network streaming, CD playback and modern digital connectivity. Built around the AVM X-Stream Engine, it is ideal for systems that use separate amplification but require one premium source for streaming services, local files, television audio and compact discs.
Support includes AirPlay 2, Spotify Connect, TIDAL Connect MAX, Qobuz, Roon Ready, UPnP, internet radio and Bluetooth. HDMI ARC allows direct TV integration, while the slot-in CD mechanism provides convenient disc playback.
Pre-Amp (Pre-Out)
Input resistance .......................................................................................................................................3.4 kΩ
Output resistance......................................................................................................................................470 Ω
Amplification Factor ........................................................................................................................................ 1
THD ..................................................................................................................................................... < 0.001%
Signal-to-noise ratio..............................................................................................................................> 100dB
Frequency response (at -3dB).................................................................................................< 5Hz to > 80kHz
Crosstalk Attenuation (Channels) ..........................................................................................................> 95dB
Crosstalk Alternation (Inputs).................................................................................................................> 85dB
Input Output (1% THD)...............................................................................................................................3.5 V
Output Output (1% THD) ................................................................................................................................3V
Pre-Amp (Line-Out)
Output resistance........................................................................................................................................47 Ω
Amplification Factor ........................................................................................................................................ 1
THD ..................................................................................................................................................... < 0.001%
Signal-to-noise ratio..............................................................................................................................> 100dB
Output Output (1% THD) ............................................................................................................................3.5 V
Network
LAN connection (hot-plugging capable)........................................................................................... 100Mbit/s
Supported WLAN/ Wifi standards............................................................................2.4 / 5 GHz 802.11a/b/g/n/ac
Number of antennas ........................................................................................................................................ 2
WPS...............................................................................................................................................................yes
CD player
Playable formats.................................................................CD Audio, CDR (according to Red Book standard)
Frequency response CD................................................................................................................ < 20 - 20 kHz
Streaming
Max. sample rates .............................................................................................. DSD256, 32Bit /384kHz PCM
Streaming Services ..............................................AirPlay, Qobuz, Roon Ready, Spotify, TIDAL, HighResAudio
Supported file formats:.....................................................WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF
Bluetooth
Bluetooth standard .................................................................................................................................. 5.0 LE
Supported Bluetooth Profiles ..........................................................................................................AVRCP 1.5 AD2P
USB Input (Rear)
USB standard USB ........................................................................................................................................ 2.0
Max. current.......................................................................................................................................... 500 mA
Supported formatting ..................................................................................................... FAT16, FAT 32, NTFS
ATTENTION: The USB input is only intended for hard drives and USB sticks!

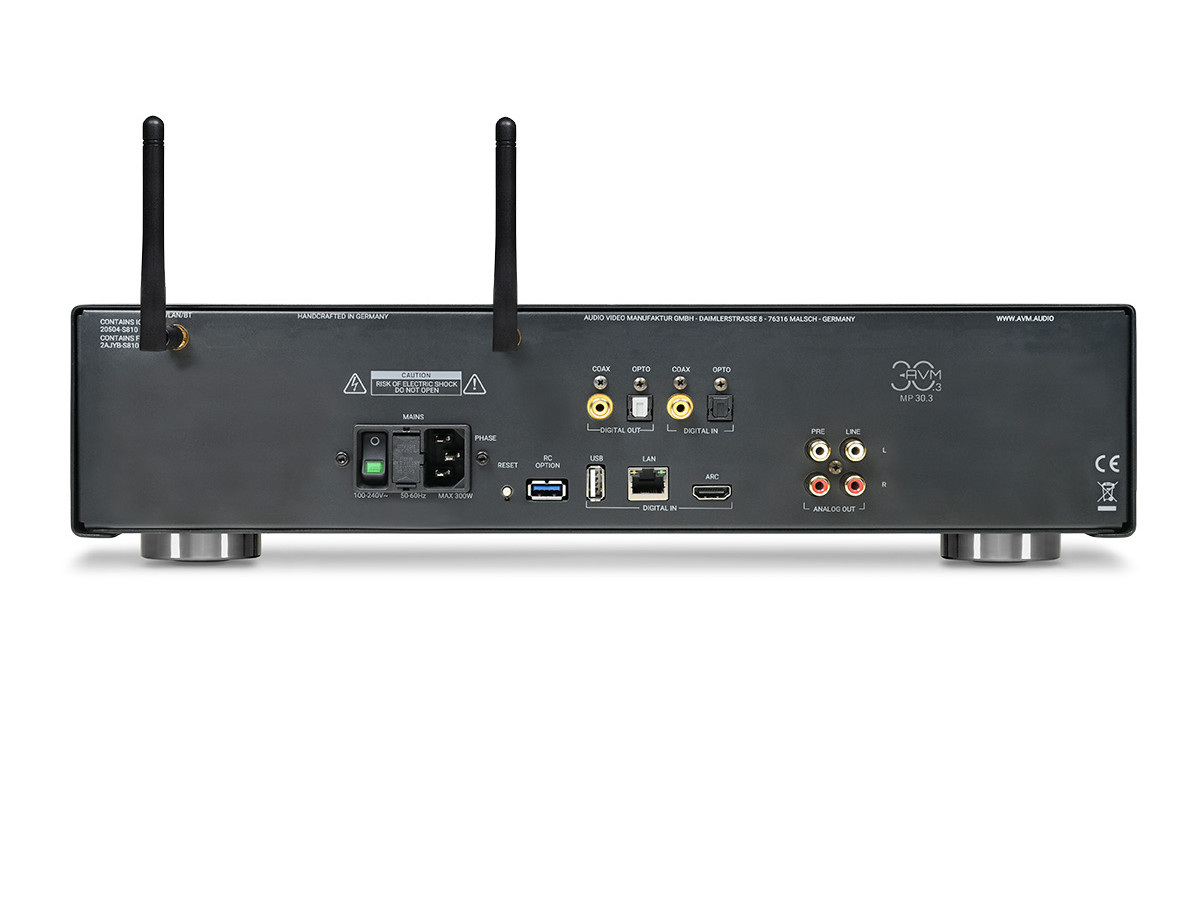

Digital Inputs (S/P-DIF/ Coaxial)
Max. Sampling/Bitrate (OPTO).................................................................................................. 96 kHz / 24 Bit
Deemphasis (OPTO) ............................................................................................................ Yes, automatically
Max. Sampling/Bit Rate (COAX).............................................................................................. 192 kHz / 24 Bit
Min. signal level [Vpp] at 195kHz (COAX).......................................................................................> 150 mVpp
Input Impedance (COAX)............................................................................................................................75 Ω
Deemphasis (OPTO) ............................................................................................................ Yes, automatically
Max. Sampling/Bitrate (ARC)................................................................................................... 192 kHz / 24 Bit
Input Impedance .......................................................................................................................................100 Ω
NOTE: When using the digital inputs, the cable length of the digital cables should not exceed three meters.
Digital Outputs (S/P-DIF / Coaxial)
Max. Sampling/Bitrate (OPTO).................................................................................................. 96 kHz / 24 Bit
Max. Sampling/Bit Rate (COAX).............................................................................................. 192 kHz / 24 Bit
Output Impedance (COAX) .........................................................................................................................75 Ω
NOTE: When using the digital outputs, the cable length of the digital cables should not exceed three meters.
Power consumption
Standby ..............................................................................................................................................< 0,5 Watt
Extended stand-by (network connection)........................................................................................... < 2 watts
Idle.....................................................................................................................................................< 16 Watts
Fuse used......................................................................................................................................... : T 3.15A H
General
Weight ..................................................................................................................................................... 6.9 kg
Dimensions (WxHxD)................................................................................................................ 430 x 115 x355
Warranty............................................................................................2 years (+2 years if you register online*)
............................................................................................................... *Warranty periods may vary from country to country.
