Description

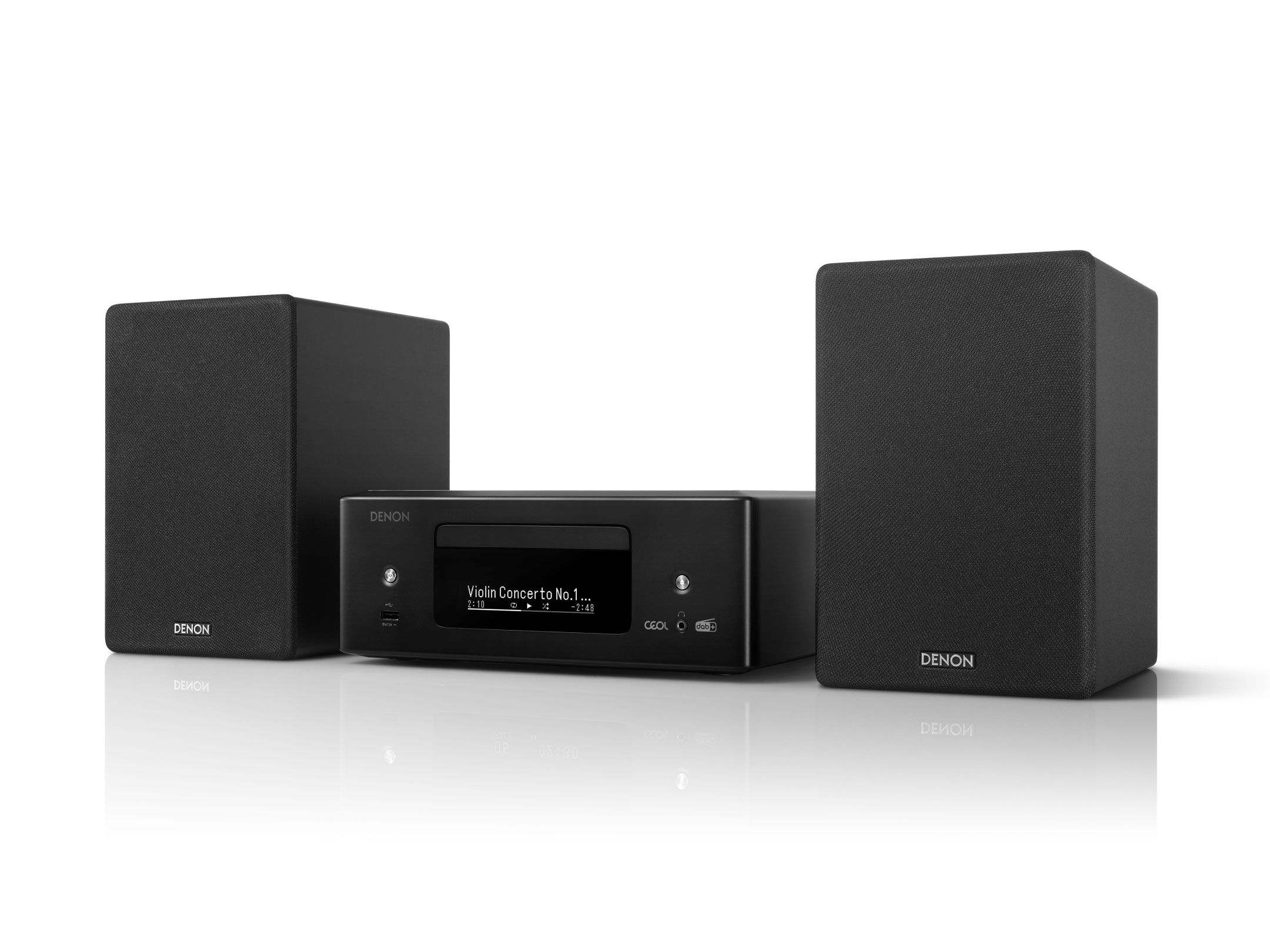

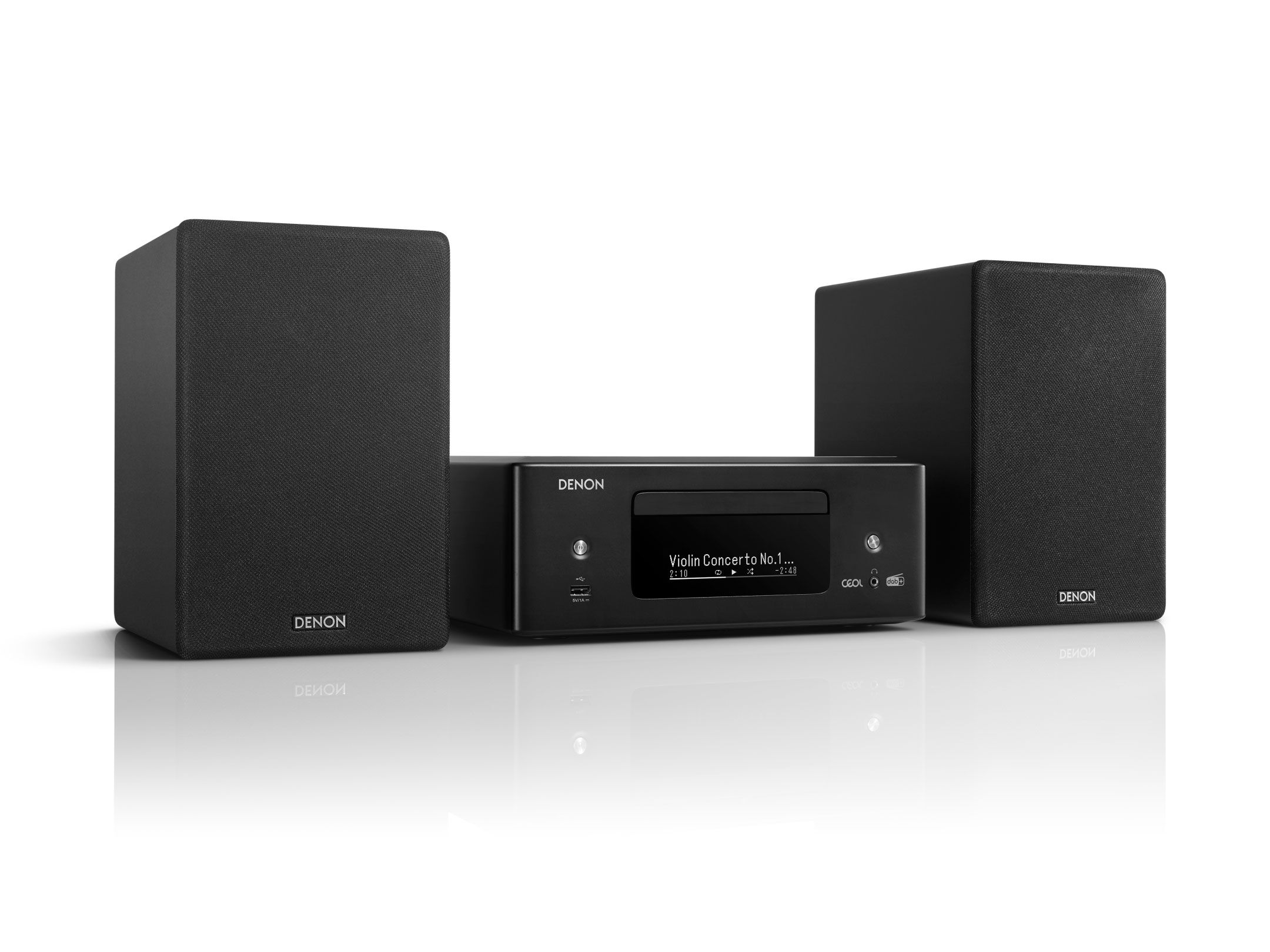

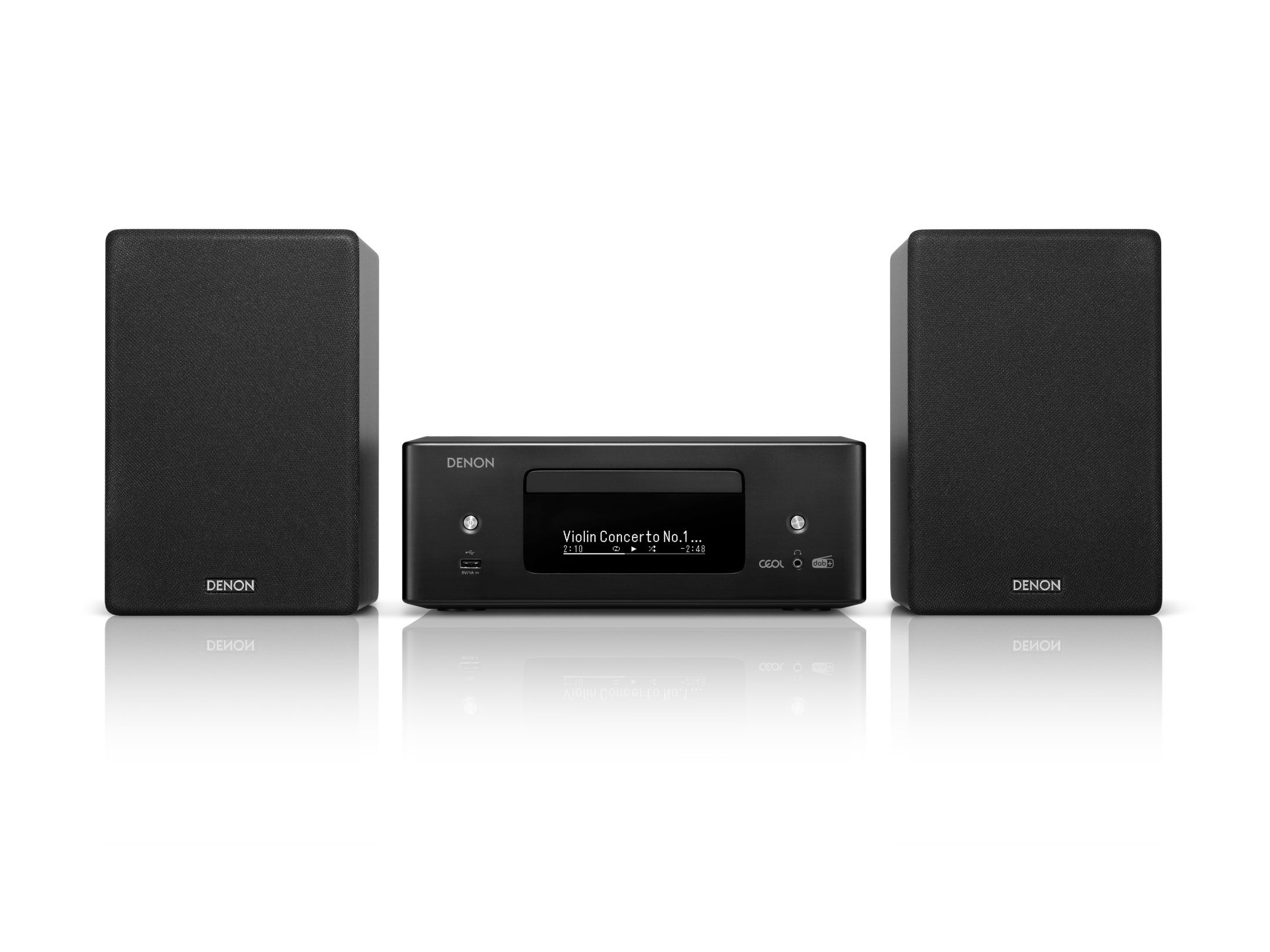

Mini System with CD Player, FM/DAB+ Tuner and Powered by HEOS™
Superb sound from an elegant, compact package. With a DAB/FM radio tuner, CD player, and HEOS® Built-in streaming, plus HDMI ARC for TV sound, phono input, and subwoofer pre-out, it’s the perfect audio hub for a modern living space.
- Compact, elegant design
- Power for small spaces
- HDMI ARC
- Stream music
- Premium Hi-Fi experience
- Phono equalizer
Features
- High-Quality Power Output: 2 x 65 W
- CD Compatibility: CD / CD-R/RW / WMA / MP3: Yes / Yes / Yes / Yes
- Tuner: DAB/DAB+/FM (RDS)/AM: Yes / Yes / Yes / No
- Phono MM Input: Yes
- Network Audio Streaming: Yes
- Spotify Connect*/Tidal*/Deezer*/others *: Yes / Yes / Yes / Yes
- Amazon Prime Music*/Pandora*: Yes / No
- AirPlay 2: Yes
- Roon Tested: Yes
- Internet Radio: TuneIn
- HEOS Multi-Room and Streaming: Yes
- Voice Control —Works with Amazon Alexa: Yes
- Auto Power On by Optical Input Signal: Yes
- TV Remote Learning: Yes
- Quick Select Buttons: Yes
- Bluetooth/aptX/NFC: Yes / No / No
- Bluetooth Headphone Transmission: Yes
- USB Audio: Front/Rear: Yes / No
- USB-A: DSD/WAV/FLAC/AIFF/ALAC: 5.6 / 192 / 192 / No / 192
- Ethernet/Wi-Fi: Yes / Yes
- WiFi Setup: WPS/Wi-Fi Sharing: Yes / Yes
- Lossy Formats: MP3/WMA/AAC: Yes / Yes / Yes
- Lossless Formats: FLAC HD/ALAC/WAV/AIFF/DSD: Yes / Yes / Yes / No / Yes
- Gapless Playback: Yes (FLAC, WAV, DSD)
- Tone Control: Bass/Treble/Balance: Yes / Yes / Yes
- Low Noise OELD Display: 3 line
- Clock: Yes
- Sleep Timer: Yes
- Programmable Timer: Once/Daily: Yes / Yes

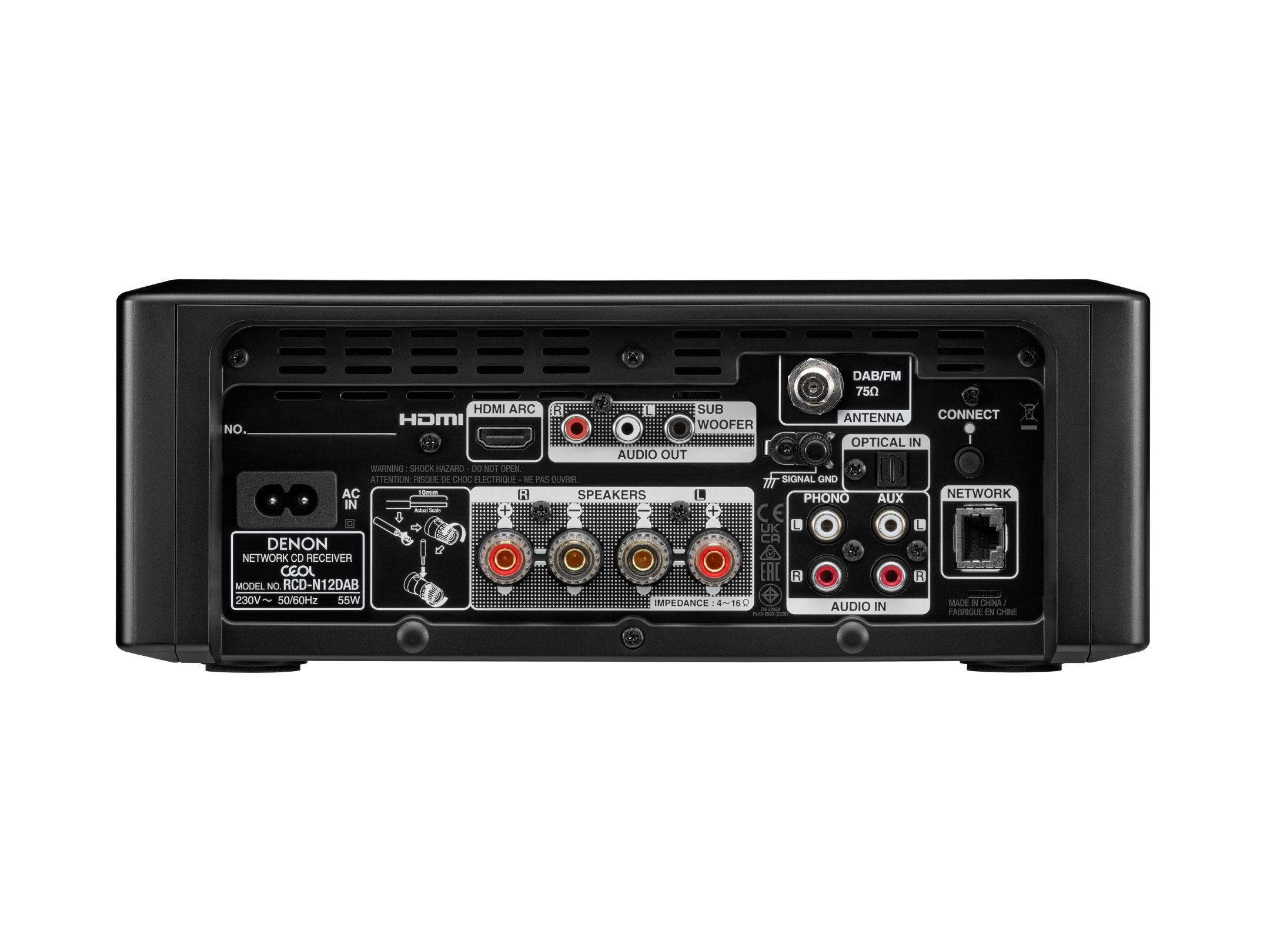

Inputs/Outputs
- AUDIO
- Analog In/Out: 2 (AUX, PHONO MM) / No
- Digital Optical In/Out: 1 / No
- HDMI ARC Input: Yes
- OTHER
- Subwoofer Pre-Out: Yes
- Main Pre-Out: Yes
- Speaker Terminal: Push Type/Screw: No / Yes
- Headphone Out: Yes
Specifications
- AUDIO SECTION (ANALOG IN)
- Power Output (4 ohms, 1 kHz, 0.7% THD): 2 x 65W
- Number of Channels: 2
- Freq. Response (Analog In): 10 Hz–40 kHz
- Signal-to-Noise Ratio (Audio): 90dB
- Input Sensitivity/Impedance (Analog In): 200mV / 30 kohms
- Total Harmonic Distortion (Audio): 0.1 (1 kHz/5W/ 4 ohms)
- AUDIO SECTION (PHONO (MM))
- Freq. Response (Phono): 20Hz–20kHz (RIAA deviation)
- Signal-to-Noise Ratio (Phono): 74dB
- Input Sensitivity/Impedance (Phono): 2.5mV / 47 kohms
- DAB SECTION
- Receiving Range (Band III): Yes
- Signal to Noise Ratio DAB (Mono/Stereo): 85 dB
- TUNER SECTION FM
- Frequency Range FM: 87.5–108 MHz
- Signal-to-Noise Ratio (Mono/Stereo) FM: 70 / 70 dB
- Total Harmonic Distortion (Mono/Stereo) FM: 0.4 / 0.4%
General
- Available Colors: Black/White: Yes / Yes
- Remote Control: RC1255
- Power Consumption in W: 55
- Standby Consumption in W: 0.4
- DAB Antenna Included: Yes
- Maximum Dimensions (W x D x H) in mm: 280 x 305 x 108
- Weight in kg: 3.4
- Carton Maximum Dimensions (W x D x H) in mm: 365 x 335 x 230
- Carton Weight (inc. product) in kg: 4.8
Speakers
- Type: 2-way, reflex
- Drivers: 12 cm bass-mid,
3 cm dome high - Frequency Range: 50 Hz–20 kHz
- Impedance (ohms): 6
- Available Colors: Black/White/Grey: Yes / Yes / Yes
- Maximum Dimensions (W x D x H) in mm: 153 x 200 x 233
- Weight in kg: 2.4
- Carton Maximum Dimensions (W x D x H) in mm: 389 x 268 x 306
- Carton Weight (inc. product) in kg: 5.6
