Description

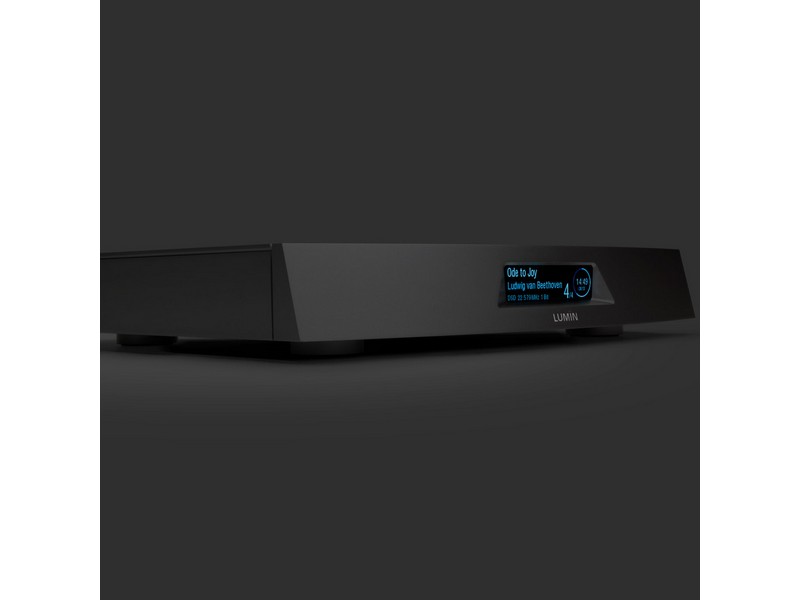

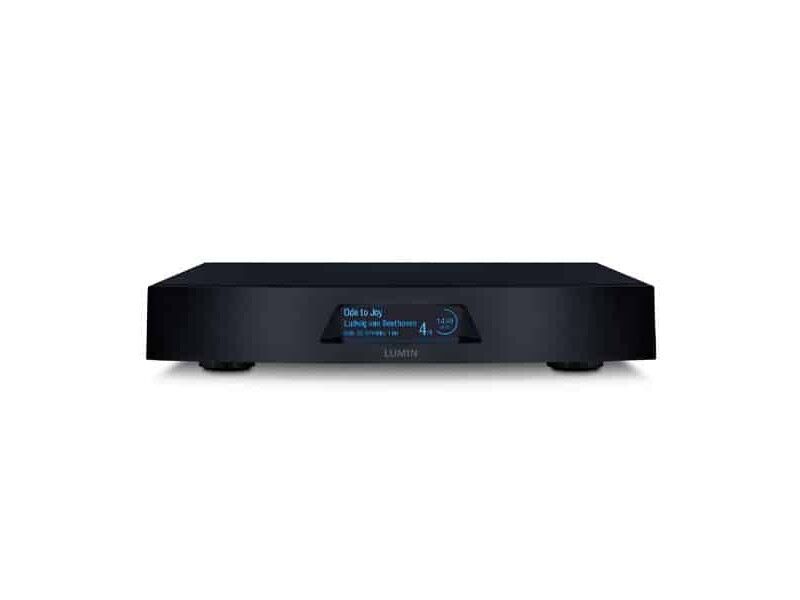

Lumin U2 Network Transport
An all-new LUMIN for DAC owners; the LUMIN U2 focusses on pure digital.
After the huge success of the T3, the LUMIN U2 brings the same design philosophy to a transport for the first time. Taking chassis construction methods, linear power supply design and dual-network from the multi-award-winning LUMIN P1, the all-new LUMIN U2 brings high-end digital right into the heart of the LUMIN range.
Transport-only unit featuring the finest LUMIN components
The first LUMIN Transport to use new all-in-one chassis
Latest processor provides greater resampling flexibility
New integrated toroidal linear power supply
Fibre Network provides complete isolation from network digital noise
3 USB ports including a NEW dedicated low-noise USB output
Dual-Network interface with built-in Network Switch
DSD512 and PCM768 playback
4 exceptionally low-phase-noise crystal clock oscillators
New surface finish taken from the high-end P1
Leedh Processing lossless volume control
Dedicated USB port for Audio Output
First LUMIN to feature 3 USB ports
Leaves two ports free for music storage and accessories
CNC chassis construction
First LUMIN Transport to use new all-in-one chassis
The thick CNC panelled aluminium construction offers upgraded structural rigidity and shielding compared to the U2-Mini
Less susceptible to finger marks and easier to clean.
Internal ultra-low-noise linear power supply
Ultra-low-noise rectifier and linear regulator
Extra large toroidal transformer
SPECIFICATIONS:
DSD SUPPORT:
Up to DSD512 22.5MHz, 1-bit
PCM SUPPORT:
Up to 768kHz, 16–32-bit, Stereo
UPSAMPLING RATES & BIT DEPTHS:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL OUTPUT STAGE:
USB:
Native DSD512 support
PCM 44.1–768kHz, 16–32-bit, Stereo
OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
OPTICAL NETWORK:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
POWER SUPPLY:
Internal toroidal linear
Low-noise linear regulator
DIMENSIONS
350mm (W), 350mm (D), 60.5mm (H), 6kg
