Description
Â
Optimal fit and sound reproduction
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon’s answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with our well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.
The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.
• The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
• The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
• The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
Â
SPECIFICATIONS:

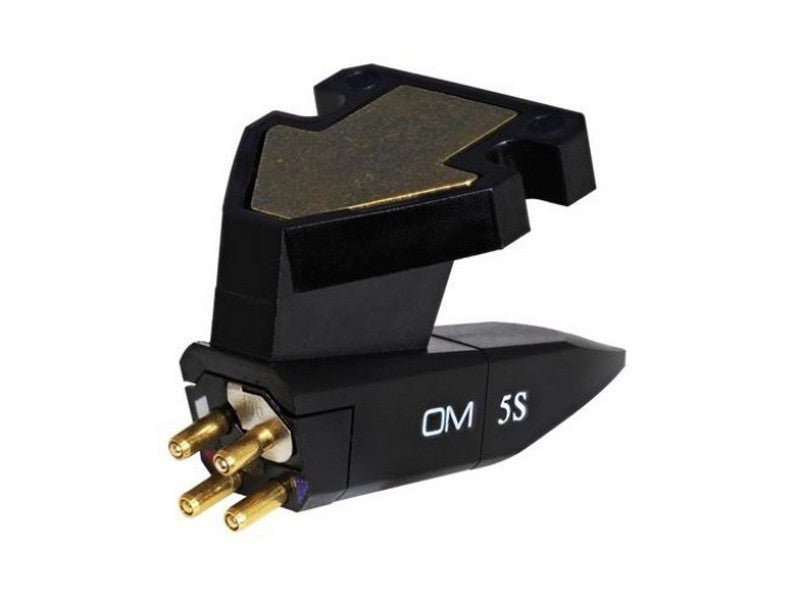

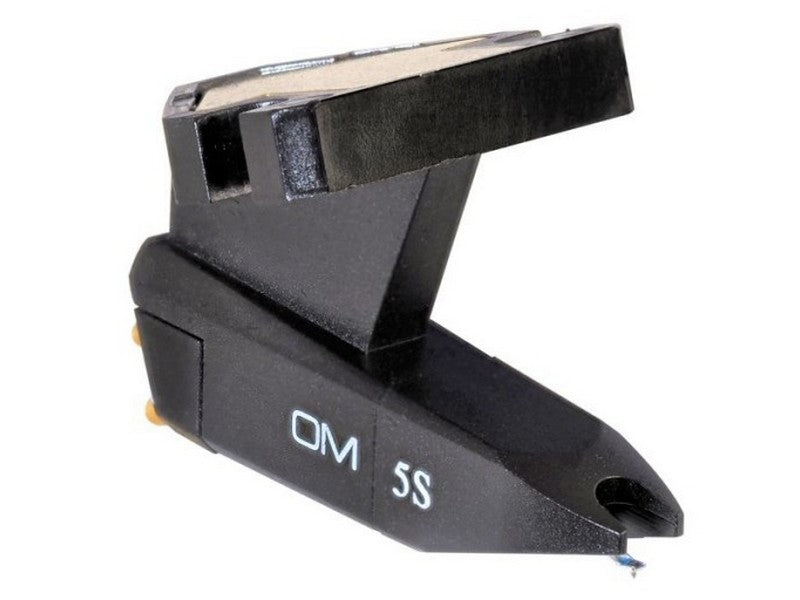

OM 5S Technical data
- Output voltage at 1000 Hz, 5cm/sec. – 4.5 mV
- Channel balance at 1 kHz – 2 dB
- Channel separation at 1 kHz – 20 dB
- Channel separation at 15 kHz – 12 dB
- Frequency range at – 3dB – 20-20.000 Hz
- Frequency response – 20-22.000 HzÂ
- Tracking ability at 315Hz at recommended tracking force *) – 60 µm
- Compliance, dynamic, lateral – 20 µm/mN
- Stylus type – Spherical
- Stylus tip radius – R 18 µm
- Tracking force range – 1.5-2.0 g (15-20 mN)
- Tracking force, recommended – 1.75 g (17.5 mN)
- Tracking angle – 20°
- *) Typical value
- Internal impedance, DC resistance – 750 Ohm
- Internal inductance – 450 mH
- Recommended load resistance – 47 kOhm
- Recommended load capacitance – 200-500 pF
- Cartridge colour, body/stylus – Black/Black
- Cartridge weight incl. extra weight – 5 g
- Cartridge weight excl. extra weight – 2.5 g
- Replacement stylus unit – Stylus 5S
