Description

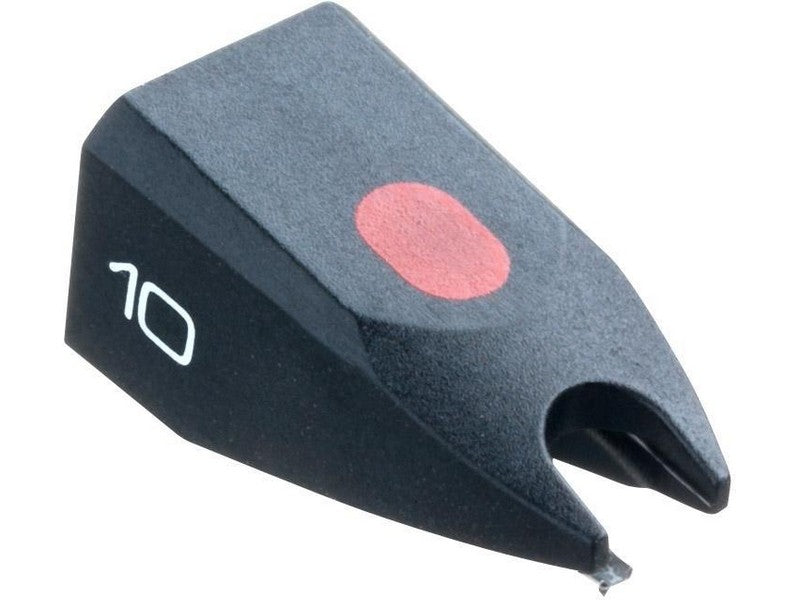

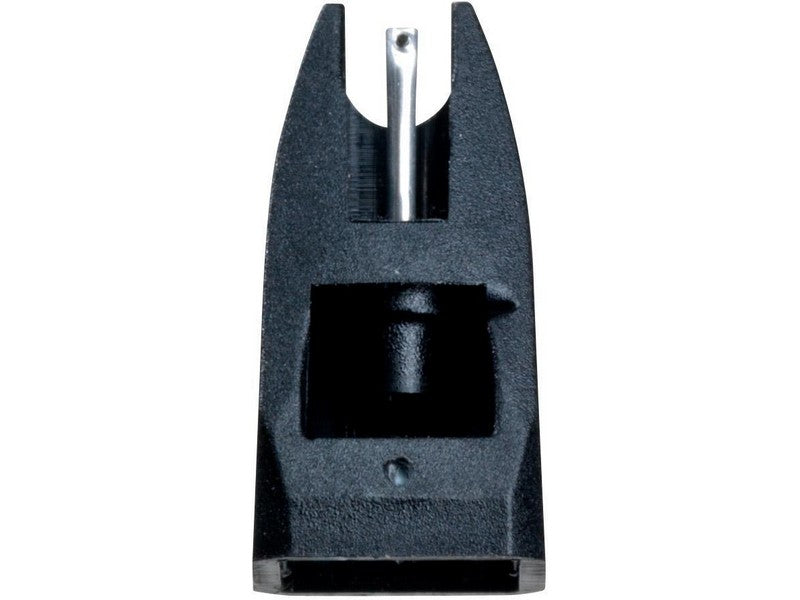

Replacement stylus for Ortofon 10 series cartridges
- Frequency range | 20-24,000 Hz
- Frequency response | 20-20,000 Hz + 3 / – 1 dB
- Tracking ability at 315Hz at recommended tracking force | 70 µm
- Compliance, dynamic, lateral | 25 µm/mN
- Stylus type | Elliptical
- Stylus tip radius | r/R 8/18 µm
- Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
- Tracking force (recommended) | 1.5 g (15 mN)
- Tracking angle | 20°
- Stylus colour | Black
- Recommended for following cartridges | Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12, Concorde STD, Dual ULM 65E, Dual ULM 66E
