Description

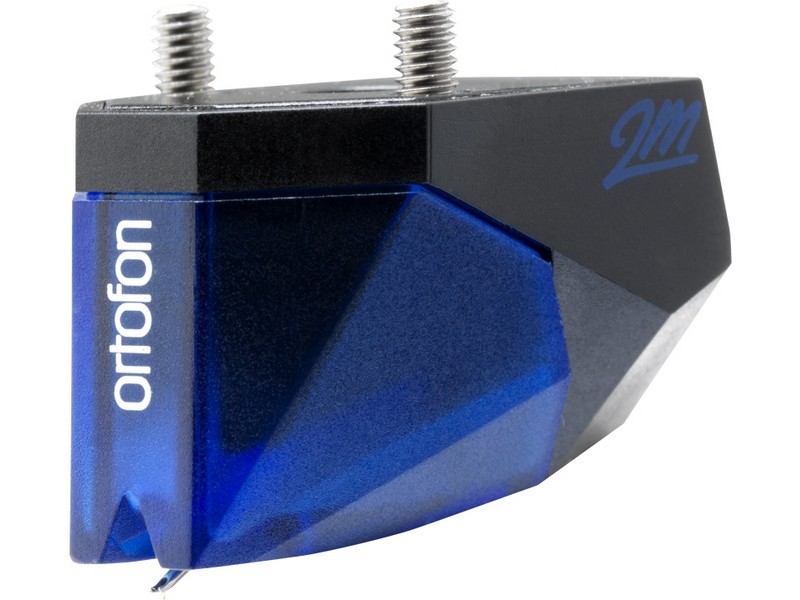

Replacement Cartridge for All Turntables
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, with minimal colouration.
Features
- Ortofon moving magnet cartridge
- Nude elliptical diamond stylus & split pole pins with a copper wire
- Supplied as replacement for faulty/worn stylii on all turntables
Specifications
- Output voltage at 1000 Hz, 5cm/sec: 4 mV
- Channel balance at 1 kHz: 2 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at – 3dB: 20-25,000 Hz
- Frequency response: 20-20,000 Hz ± 2 dB
- Tracking ability at 315Hz: 65 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.5-2.0 g (15-20 mN)
- Tracking force, recommended: 1.75 g (17.5 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-600 pF
- Cartridge colour, body/stylus: Black/Black
- Cartridge weight: 5 g
- Replacement stylus unit: Stylus 5 E
Output voltage at 1000 Hz, 5cm/sec: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 15 dB
Frequency range at – 3dB: 20-25,000 Hz
Frequency response: 20-20,000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1.3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Blue
Cartridge weight: 7.2 g
Replacement stylus unit: 2M Blue(interchangeable with 2M Red )
Stylus protection guard: 2M Blue
