Description

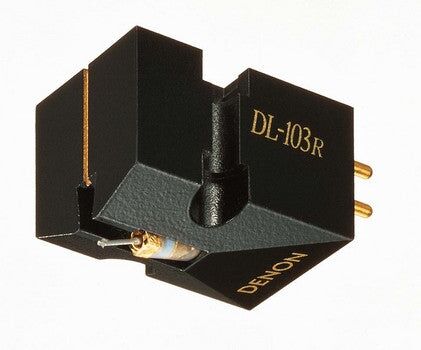

DL-103R- Moving Coil Cartridge
The DL-103R is an updated version of the classic DL-103. It provides improved sound by using 6N copper coils wound with precision to the cantilever shaft. Audio lovers will delight with detail that is brought out by this outstanding phono cartridge.
Specifications
- Principle Moving coil (MC) type
- Output Voltage 0.25 mV (1 kHz, 50 mm/s horizontal direction)
- Channel Balance 1 dB max. (1 kHz)
- Channel Separation 25 dB min. (1 kHz)
- Electrical Impedance 14 ohms ±20%
- Compliance 5 x 10-3 m/N (Using a 100 Hz record)
- Stylus 0.2 mm square solid diamond
- Tracking Force 25 mN ±3 mN (2.5 g ±0.3 g)
- Frequency Response 20 Hz to 45 kHz
- Mass 8.5 g
- Load Impedance 100 ohms min. (40 ohms when using a transformer)
