Description
Features
- PBTL Mono Mode Support
- XLR Input / 12V Trigger in
- Op-Amp Rolling: SS3602, MUSES02, OPA2134PA
- Replaceable Knobs: Black Knob

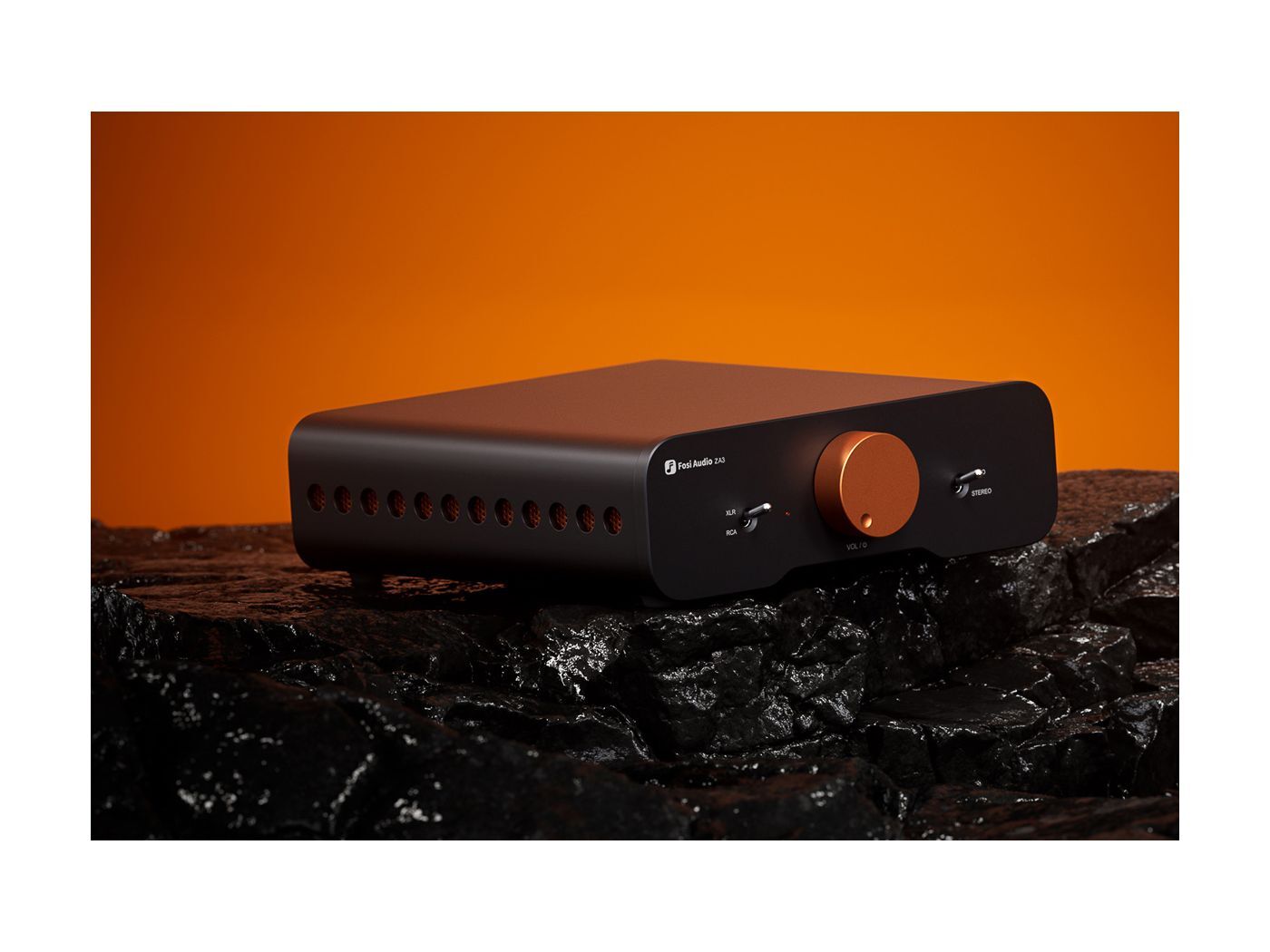

Dual-Mode Innovation. This new generation mini amplifier offers both stereo and mono modes, adapts flexibly to your diverse needs, allowing seamless mode switching. In stereo mode, it delivers a robust output of up to 180W, while in mono mode, the power soars to a maximum of 235W. Pair two ZA3 units in mono configuration to create a powerful audio system, significantly enhancing your listening experience.

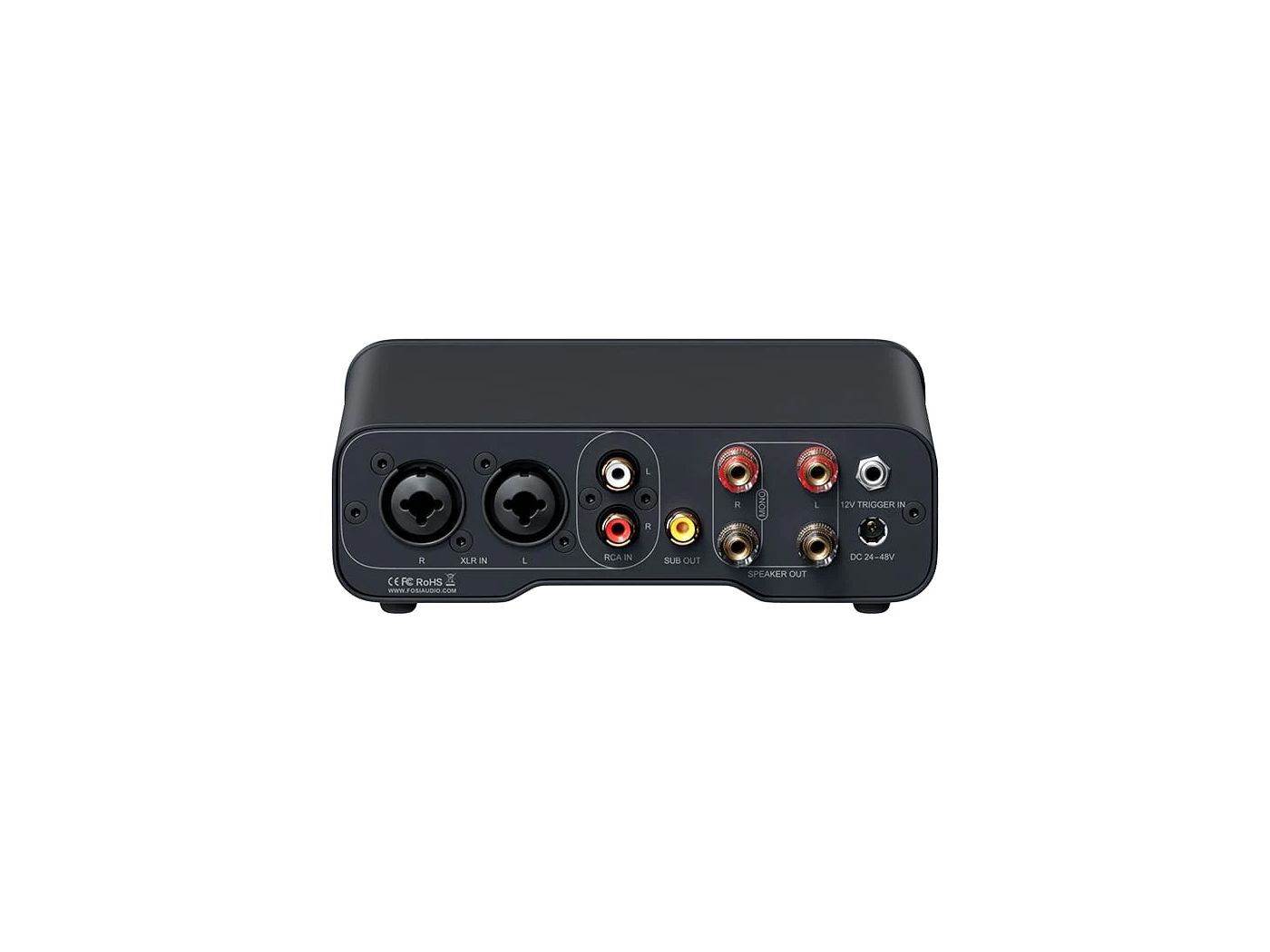

Richer Connectivity. Debut amplifier with balanced input and trigger in, the ZA3 features a balanced combo audio signal input connector supporting both XLR and 1/4” TRS plugs. This design minimizes interference and reduces noise floor. The 12V trigger-in connector enables synchronization with other devices, streamlining the process of turning on/off without individual operations.
Audiophile-Grade Components. The ZA3 features the TPA3255 high-end Class-D amp chip and utilizes premium Japanese NCC, ELNA, and German WIMA capacitors, and Japanese Sumida inductors for exceptional audio quality. With a SINAD rating of up to 89dB, an SNR of up to 106dB, and a low noise floor of only 150μV, it delivers exceptional clarity and low distortion.
Advanced Heat Dissipation. Based on V3’s groundbreaking heat dissipation design, we upgraded ZA3’s cooling system by featuring a larger chassis, moving vents to the sides, and adding dust covers to achieve better
ventilation for a sustained and stable high power output.
Enhanced Scalable Fun. Personalize your audio experience with the op-amp rolling feature! The ZA3 stocks five swappable op-amps for left and right channel outputs, balanced input, and subwoofer output. Experiment with compatible DIP8 dual op-amps such as Sparkos SS3602, MUSES02, OPA2604, OPA2134PA, OP249, AD827, RM4558, LM4562, LME49720HA, etc. to finetune your sound to perfection.
Specifications
| Specification | Detail |
|---|---|
| Chip Set | Texas Instruments TPA3255 |
| Output Power | With 48V / 5A PSU: Stereo 155W × 2 @ 4Ω; Mono 235W × 1 @ 4Ω |
| Terminating Impedance | 2–8Ω |
| Input Mode | RCA, XLR, 1/4″ TRS |
| Output Mode | Speaker Output (supports banana plug or bare wire connection), Active Subwoofer Output |
| Frequency Range | 20Hz – 20kHz (±0.1dB) |
| SINAD | 89dB |
| THD | < 0.006% |
| SNR | ≥ 106dB |
| Dynamic Range | ≥ 106dB |
| Device Dimensions | 15.49 × 18.39 × 5.08 cm |
| DC Input Range | 24–48V |
| Power Supply | 48V / 5A |
