Description
2 Channel Power Amplifier
The McIntosh MC152 stereo amplifier delivers 150 watts of power into two channels at 2, 4 or 8 ohms. Both balanced and unbalanced inputs are included for connecting your preamp. Our smallest current model solid state stereo amplifier in terms of power output, the MC152 is perfect for modest sized systems where higher power output levels are not needed or in home theaters to power surround channels.
Featuring a space saving design with a slim 6” tall chassis, it can fit where larger models can’t. While it may be physically smaller than our other amplifiers, it’s still full of all the technology McIntosh is known for and will perform to the same high standards as any of our amps. McIntosh output Autoformers ensure every speaker receives full power regardless of its impedance while our unique Power Guard® circuitry prevents clipping that could damage your speakers. Our patented speaker binding posts provide a secure connection to your speaker cables.

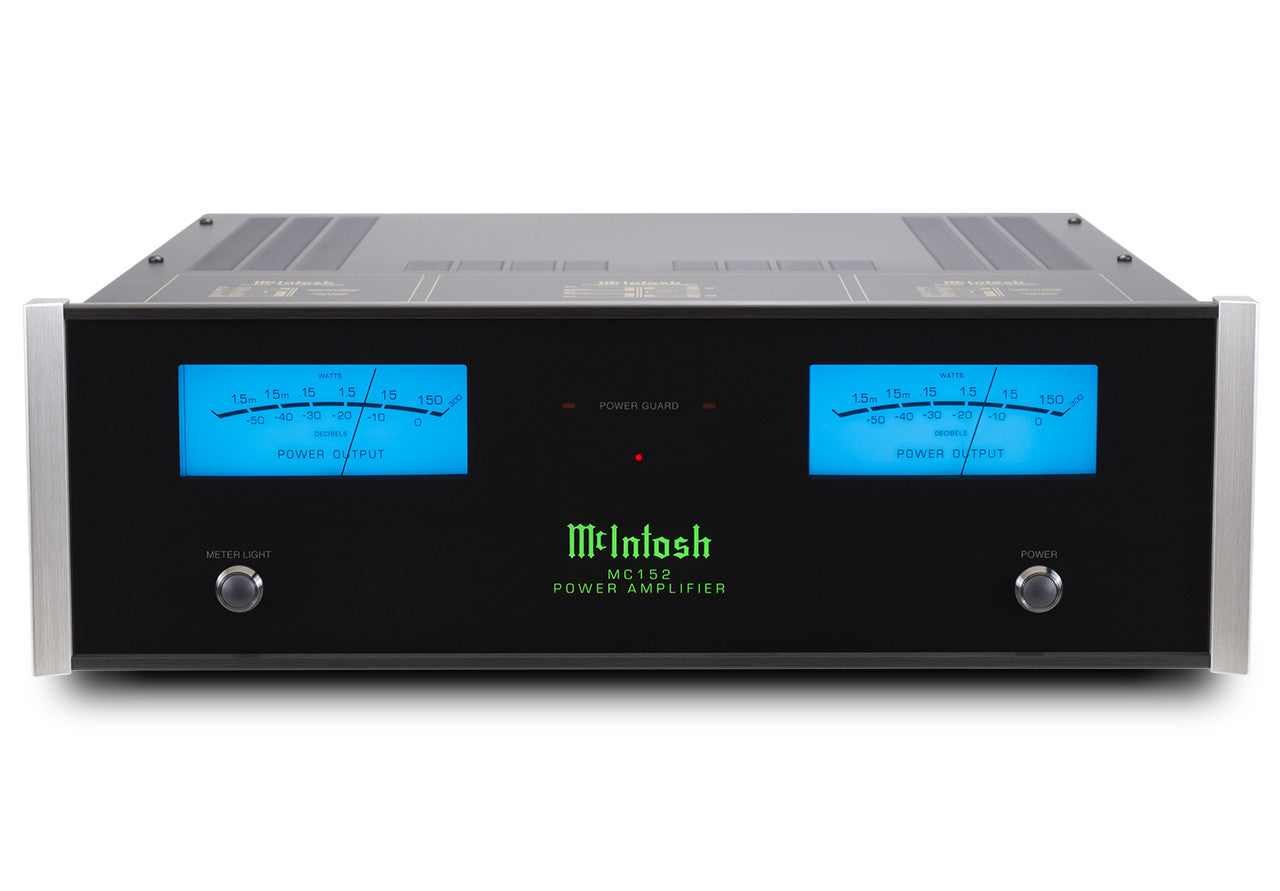

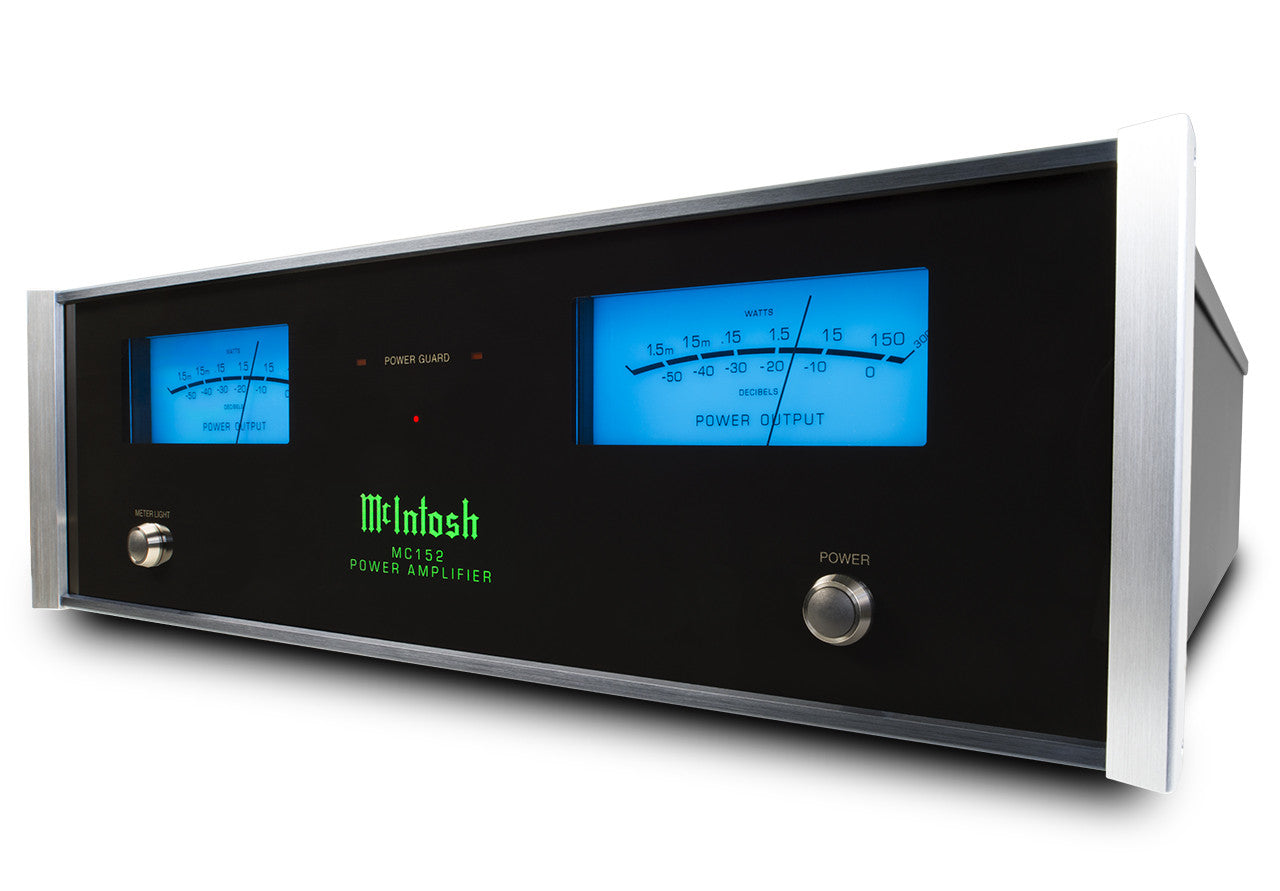

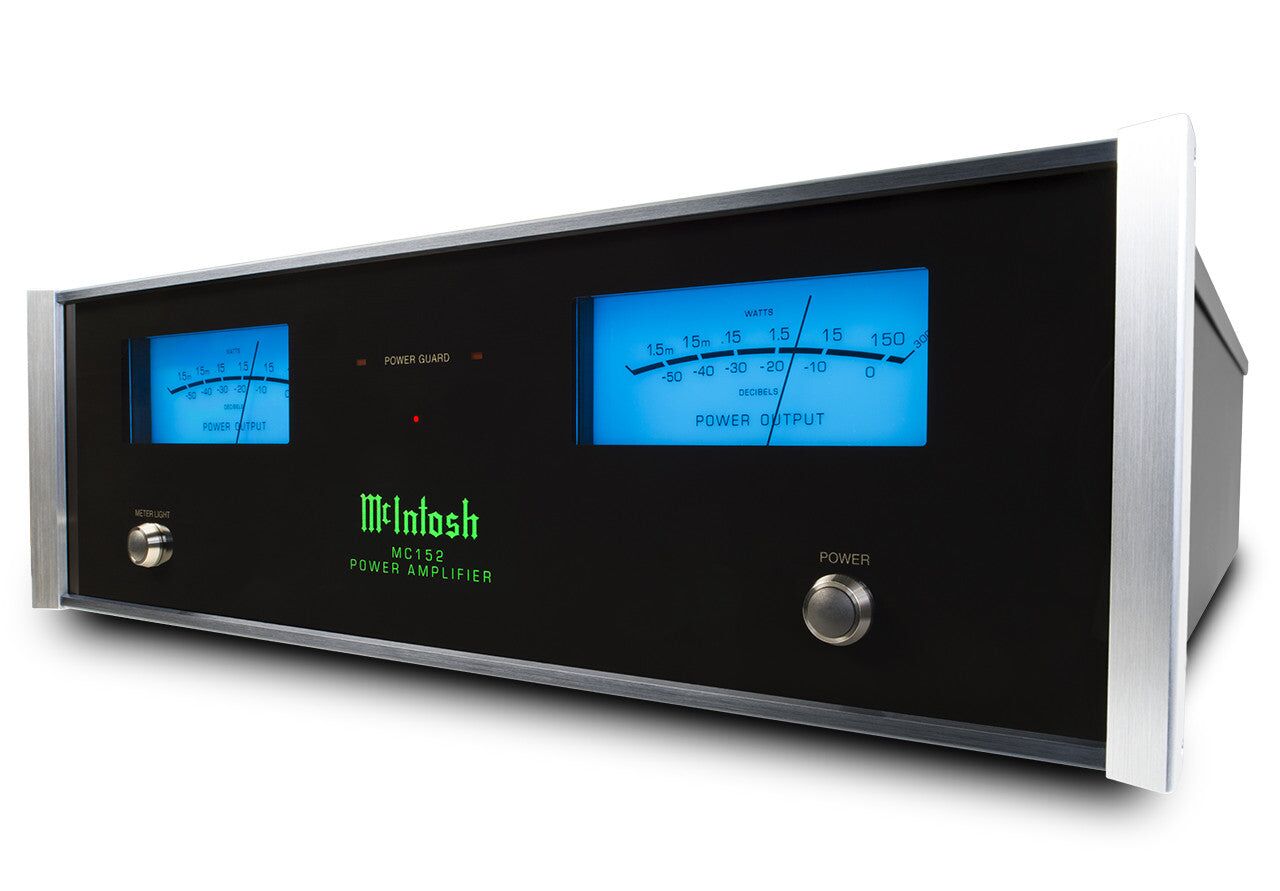

The MC152 is completed by the classic McIntosh black glass front panel, silver end caps and a pair of large, easy to read blue watt meters that are globally recognized as a symbol of quality audio. Bring the MC152 home today and introduce your friends and family to the legendary performance only McIntosh can deliver.
ELECTRONIC SPECIFICATIONS
- POWER OUTPUT PER CHANNEL 150W @ 2, 4 or 8 Ohms
- NUMBER OF CHANNELS 2
- TOTAL HARMONIC DISTORTION 0.005%
- S/N BELOW RATED OUTPUT
- 118dB Balanced
- 115dB Unbalanced
- DYNAMIC HEADROOM 2.0dB
- DAMPING FACTOR >40 Wideband
- RATED POWER BAND 20Hz to 20kHz
- FREQUENCY RESPONSE
- +0, -0.25dB from 20Hz to 20,000Hz
- +0, -3.0dB from 10Hz to 100,000Hz
CONTROL
- REMOTE POWER CONTROL Yes
- MULTI-CHANNEL DB25 CABLE No
GENERAL SPECIFICATIONS
- CIRCUIT CONFIGURATION Push-Pull Complementary
- CIRCUIT DESIGN Transistor
- MONO BRIDGE No
- MONO PARALLEL No
- AUTOFORMER Yes
- METERS Yes
- METER LIGHT SWITCH Yes

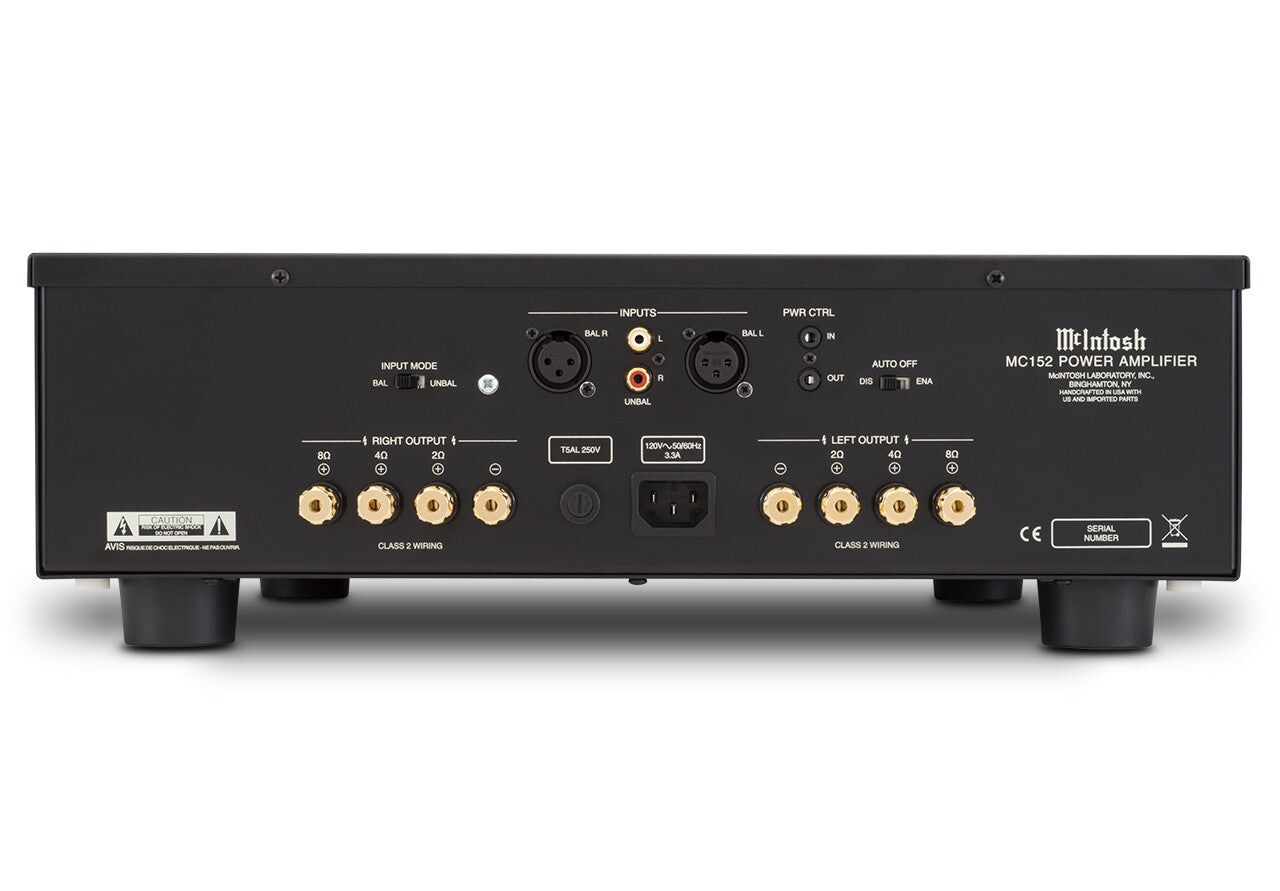

- BALANCED INPUT 1 Stereo
- FRONT PANEL Glass
- ILLUMINATION LED Fiber Optic
- CHASSIS STYLE Enclosed Steel
- GOLD PLATED BINDING POSTS Yes, New Style McIntosh
WEIGHTS & DIMENSIONS
- DIMENSIONS (W X H X D) 17-1/2″ (44.45cm) x 6″ (15.24cm) (including feet) x 21″ (50.8cm) (including front panel and cables)
- WEIGHT 75 lbs (34 kg)
- SHIPPING WEIGHT 85 lbs (38.6 kg)
