Description
Advance Paris X-A600 EVO Stereo Power Amplifier Black
The X-A600 stereo power is the new stereo power amplifier from Advance Paris.
The X-A600 stereo power block is the new stereo power amplifier from Advance Paris.

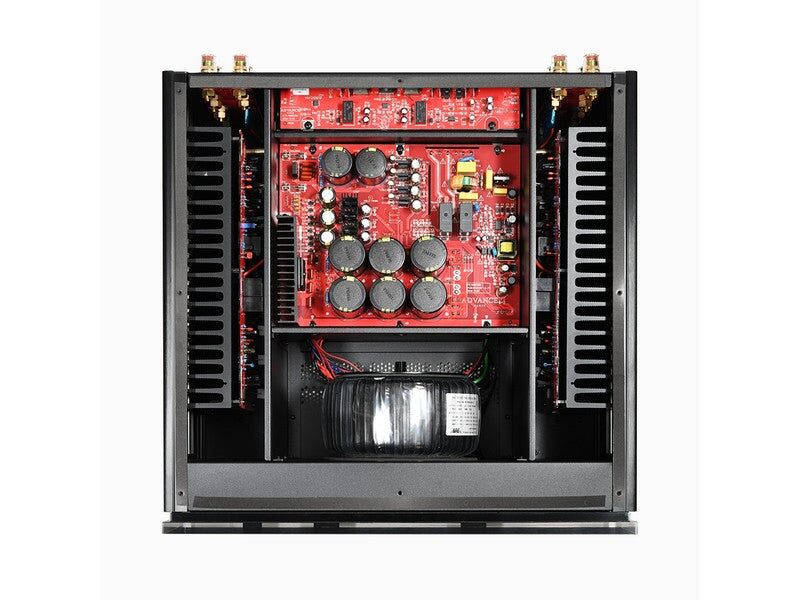

The linear type power supply is based on a 700VA toroidal transformer and a set of 6 capacitors for a total of 60000μF. Combined with “very high current” power transistors (NJW0281G -NJW0302G), we guarantee dynamic sound even under heavy load. .
The X-A600 delivers a power of 200 W per channel in class AB under 8Ω. A “High BIAS” switch located at the rear of the device allows the X-A600 to deliver the first Watts in sliding class A. Beyond this power, switching to class AB takes place automatically.
Features:
- 2 x 200W @ 8Ω / 300W @ 4Ω – Class AB
- Large 700VA toroidal transformer
- “High Bias” mode for Class A operation in first few watts
- 6x 10,000uF / 80V filter capacitors

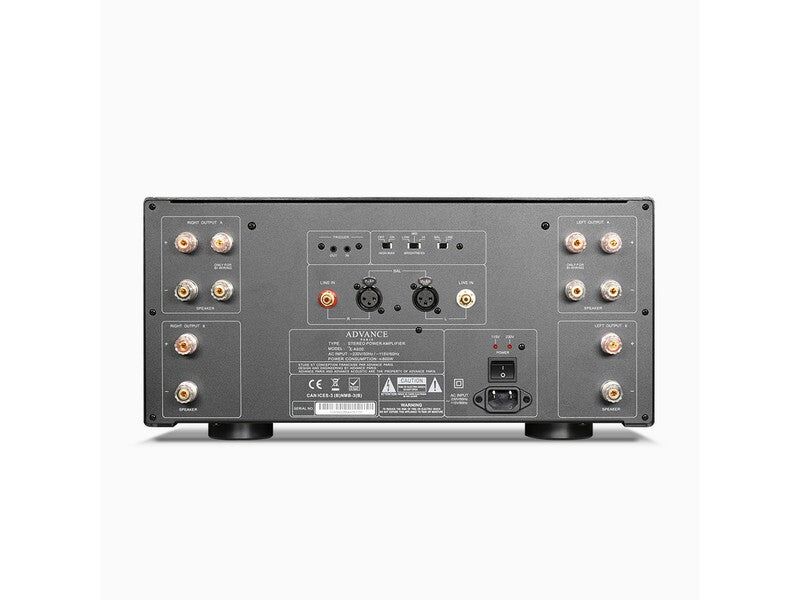

- Balanced (XLR) and unbalanced (RCA) inputs
The X-A600 benefits from a chassis with significant rigidity thanks to its mechanical design. Each circuit is separated from the others by a compartmentalized construction ensuring effective shielding. The separate power block is an essential element of any advanced audio system.
Combined with the X-P700 pre-amplifier, you can build a high-quality audiophile package capable of delicately driving all the loudspeakers while exercising absolute control of the bass drivers.
Equipped with RCA and XLR sockets, the A-X600 can be used in High-Fidelity or Home-Cinema. For more discretion during your session, you can turn off the VU meters.
Specifications:
Output power 8Ω
2 x 200W RMS
Output power 4Ω
2 x 300W RMS
Frequency response
10 Hz – 80 kHz
Distortion
Inf. At 0,007%
Signal to noise ratio
113 dB
Crosstalk
108 dB
AC input compatibility
115V / 230V
Standby consumption
Inf. At 0,5W
consumption max.
575 W
Transformer power
700 VA
Transformer type
Toroidal
Starter
LINE level on RCA and XLR socket
Input Selection (RCA / XLR)
Rear panel selector
Outings
Bare cable, Banana plugs, Forks
High-Bias adjustment
Yes
VU-meter brightness adjustment
Yes (ON / OFF / Low / Medium / High)
Remote control
No
Trigger socket
2 (IN/OUT) 12V
Height
210 mm
Width
431 mm
Depth
464 mm
Net weight
25 kg
Gross weight
30 kg
VU-Meter
Yes
