Description

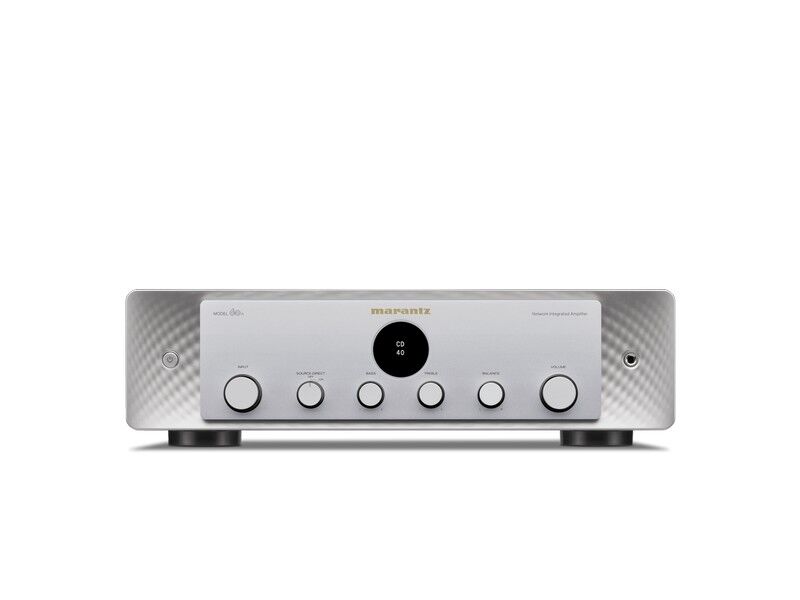

Marantz MODEL 60n Network Integrated Amplifier
The Marantz MODEL 60n is a high-performance network integrated amplifier designed to offer outstanding hi-fi sound quality and future-ready features. Whether you’re a vinyl lover, a digital streaming enthusiast, or someone who enjoys cinematic sound from your TV, the MODEL 60n provides a comprehensive set of connectivity options.
With Marantz’s iconic sound engineering, enhanced by their proprietary HDAM® circuit technology, this amplifier is perfect for anyone looking to create a top-tier audio experience at home. Its sleek design and cutting-edge features will make it the heart of your hi-fi system for years to come.
Features:
• 2 x 60W (8 ohm, 20Hz-20kHz) / 2 x 80W (4 ohm, 20Hz-20kHz)
• Supports HEOS, AirPlay2, Spotify Connect, Roon-Ready
• HDMI ARC with CEC support for superior TV and gaming sound
• 192/24 High-Resolution music support (FLAC, ALAC, WAV, DSD)
• Marantz proprietary HDAM® circuits
• Gold-plated RCA inputs for CD, MM phono inputs etc
• Marantz custom speaker terminals
• Rear USB-A input for USB Mass Storage device
• Amazon Alexa, Apple Siri voice control
• Full-range stereo and subwoofer preamp output
Sound Master Tuned
Marantz has a long-standing reputation for producing some of the most musically engaging audio equipment, and the MODEL 60n is no exception.
The Sound Master Tuned feature means that Marantz’s experts meticulously handpick components and fine-tune every aspect of the amplifier to ensure it delivers the brand’s signature “Most Musical Sound.” This is perfect for audiophiles who crave detailed, rich, and warm sound, with the texture and nuance that make instruments and vocals feel incredibly lifelike.
Marantz HDAM® Technology
The HDAM (Hyper Dynamic Amplifier Module) technology is proprietary to Marantz and sets it apart from other amplifiers in its class. This technology replaces the typical integrated circuits found in most amps with discrete components that ensure a wider dynamic range and lower distortion.
The result is clearer sound with exceptional detail and precision across the full audio spectrum. Whether you’re playing vinyl, CDs, or streaming high-res music, HDAM® ensures you’ll hear every subtlety in your music, making the listening experience more immersive.
HEOS® Built-in
In today’s digital age, streaming music is essential, and the MODEL 60n comes with HEOS® Built-in, allowing you to stream music in high resolution from platforms like TIDAL, Spotify, and Amazon Music. You can control everything through the HEOS app, or even by voice using Apple Siri, Google Assistant, or Alexa.
This feature is great for music lovers who want convenience and high-quality audio in one. Plus, HEOS offers multi-room support, meaning you can wirelessly connect and stream music throughout your home with compatible devices.
Comprehensive Connectivity
The MODEL 60n offers a host of connectivity options that make it ideal for building a complete hi-fi system. It features HDMI ARC for TV connections, giving you the ability to enjoy superior sound while watching films or gaming.
The Phono MM input ensures seamless connection to your turntable, making it perfect for vinyl enthusiasts. It also comes with optical and coaxial digital inputs, along with three analog inputs, USB-A, and a subwoofer output, which gives you the flexibility to add various components like CD players, external DACs, or even a subwoofer for deeper bass. This versatility makes it a central hub for all your audio needs.
Enhanced TV and Gaming Sound
While the MODEL 60n excels in music playback, it also improves your home entertainment setup by enhancing TV and gaming sound.
The HDMI ARC connection provides clear, dynamic sound when paired with your television, delivering sharper dialogue and more immersive soundscapes for movies, TV shows, and even gaming. This feature is particularly great if you’re tired of the thin, tinny sound that most built-in TV speakers provide.
Elegant and Upgrade-Friendly Design
These features make the MODEL 60n not just a versatile amplifier, but also a future-proof investment. Whether you’re a vinyl lover, a streaming enthusiast, or someone who enjoys immersive movie and gaming sound, this amplifier covers it all with superior performance.
The high-end audio technology, flexible connectivity options, and elegant design make it a perfect centrepiece for both audiophiles and casual listeners alike. Its balance of quality, versatility, and ease of use is what sets the MODEL 60n apart from other amplifiers in its class.
Specifications:
Amplifier
Rated Output Power:
• 60W + 60W (8 ohm, 20Hz-20kHz)
• 80W + 80W (4 ohm, 20Hz-20kHz)
Speaker Impedance: 4 ~ 16ohm
Frequency response: 5Hz – 100kHz ±3dB
Total Harmonic Distortion: 0.02%, CD to SP OUT (20-20kHz, 8 ohm)
Damping Factor: 100 and over (8 ohm、20Hz–20kHz)
Input Sensitivity: Phono input: 1.9 mV / 47 kohm
RIAA Deviation: 20 Hz – 20 kHz ±0.5 dB
Phono Maximum Input: 80mV / 1 kHz
Input Sensitivity: CD/LINE/RECORDER: 200 mV/16 kohm
S/N Ratio: PHONO: 87dB
CD: 113dB
Tone Control:
• BASS : 50Hz ±10dB
• TREBLE : 15kHz ±10dB
Power Consumption: 220W
Power Consumption at Standby: 0.3W
Power Consumption at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB): 2.0W
Power Amp Output circuit Structure: Single Push-Pull
Power Transformer: Toroidal
Pre Amplifier Circuit: New HDAM+HDAM-SA3
Volume: Electric Controlled by Encoder, Variable Gain
Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
Type of Tone Control: Electric Controlled by Encoder
Headphone Circuit: Use Power Amplifier
Source Direct: Yes (Remote Only)
Subwoofer Pre-out Low Pass Filter: Filtered, Fc 150Hz
Digital Filter: Fixed (Filter1)
Lock Range: Yes (Narrow / Mid / Wide)

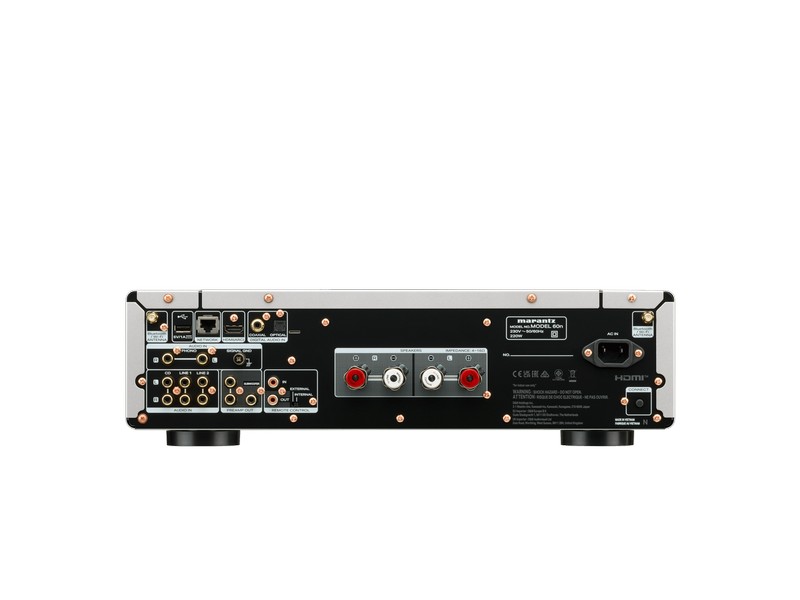

Connectivity
Phono Input: Yes (MM)
Analog Input (include Phono) / REC Out (RCA): 4 / 0
Analog Input (include Phono) / REC Out (RCA): (PHONO, CD, Line1, Line2) (All terminals : Gold Plated)
Optical input / output (Maximum Support): 1/ 0 (192kHz/24bit)
Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
HDMI input / output: 0 / 1 (ARC) PCM only, SPDIF through External Buffer
Pre out: Yes(L/R, Sub woofer)
Speaker Terminal: Marantz Original SPKT-1+
Headphone Output: 1 (Turns off the speaker when inserting headphone automatically)
Remote Control Bus Terminal: Yes (RC-5 In / Out)
Remote Internal / External Switch: Yes
AC Inlet: Yes
Engine (Module or Controller): HEOS (AIOS6.5)
Ethernet: Yes
Network & USB-A Off OFF mode: Yes
Wi-Fi: 2.4GHz (11b/g/n), 5GHz (11a/n/ac)
Wi-Fi antenna: 2 External Detachable Antenna
WPS (Wi-Fi Protected Setup): Yes
Wi-Fi Sharing: Yes (WAC)
WMM: Yes
OFF mode: Yes
HEOS: Yes
Apple AirPlay2: Yes
(DLNA 1.5 certification / Windows certification): (Self certification only)
Supported Audio File Type:
• MP3: Yes
• WMA: Yes
• AAC: Yes
• WAV: Yes (~192kHz/24bit), 384kHz/32bit support after launch
• FLAC: Yes (~192kHz/24bit), 384kHz/32bit support after launch
• ALAC: Yes (~192kHz/24bit), 384kHz/32bit support after launch
• DSD (DIFF / DSF): Yes (~11.2MHz)
• DSD Native Playback: Yes
Gapless Playback: Yes
Internet Radio: Yes (TuneIn)
Pandora: Yes (NA)
Sirius XM Internet Radio: Yes (NA)
Spotify Connect: Yes
Deezer Premium+ / Deezer HiFi: Yes / – (NA / EU)
Sound Cloud: Yes
Tidal: Yes (NA / EU)
Amazon Music Unlimited / Amazon Music HD / Prime Music: Yes / Yes / Yes
Napster: Yes
iHeartRadio: Yes (NA)
Mood Mix: Yes (NA / EU)
AWA: Yes (Japan)
AirPlay: Yes (AirPlay2)
Roon Certification: Yes (Roon Tested)
Firmware Update: Yes
USB A: 1 (Rear), Mass Storage Class, 5V/1A
Module or Main Device: AIOS6.5
Support format: FAT16/32, NTFS
Supported Audio File Type:
• MP3: Yes
• WMA: Yes
• AAC: Yes
• WAV: Yes (~192kHz/24bit), 384kHz/32bit support after launch
• FLAC: Yes (~192kHz/24bit), 384kHz/32bit support after launch
• ALAC: Yes (~192kHz/24bit), 384kHz/32bit support after launch
• DSD (DIFF / DSF): Yes (~11.2MHz)
• DSD Native Playback: Yes
Gapless Playback: Yes (WAV, FLAC, ALAC, DSD)
USB Firmware Update: Yes
Module or Main Device: AIOS6.5
BT Rx: Yes (SBC)
BT Tx: Yes (SBC)
OFF mode: Yes
General
Unit (W x H x D mm): 442 x 129 x 431
Cabinet Size: 442 x 129 x 380
Net weight: 13kg
Panel Color: SG / BK
Front (Centre) Panel: Aluminium
Side screw: Copper plated, Φ4mm
Bottom Layer: Double incl. Chassis, Bottom 1st plate : t1.0mm
Other
App: HEOS App
Remote Controller: System Remote (Amp, Network and CD Player Control)
Front Panel Display: Yes (OLED 128 x 100 dot)
Dimmer for Front Display: Bright / Dim / Dark / Off
Volume Display: 0 – 100
Works with Google Assistant: Yes
Works with Apple AirPlay (Siri): Yes
CD Player Control with App: Yes
Setup Assistant: Yes (Use App)
TV Auto-play (Opt/Coax digital-in detector): Yes
Last Function Memory: Yes
Volume Limit: Off / 95 / 90 / 85 / 80
Sleep Timer: Off / 90 / 80 / 70 / 60 / 50 / 40 / 30 / 20 / 10 min
Auto Standby Mode: Yes
HEOS Multi room distribution source: Coax, Opt, HDMI ARC (PCM Only)
IP Control (AMX /Crestron Command): Yes
Control4 Certified: Yes
Control4 SDDP: Yes
Remote Controller: RC006PM
Battery: Yes (AAA x2)
Power Cord: Yes
Other: Wi-Fi Antenna x2
