Description

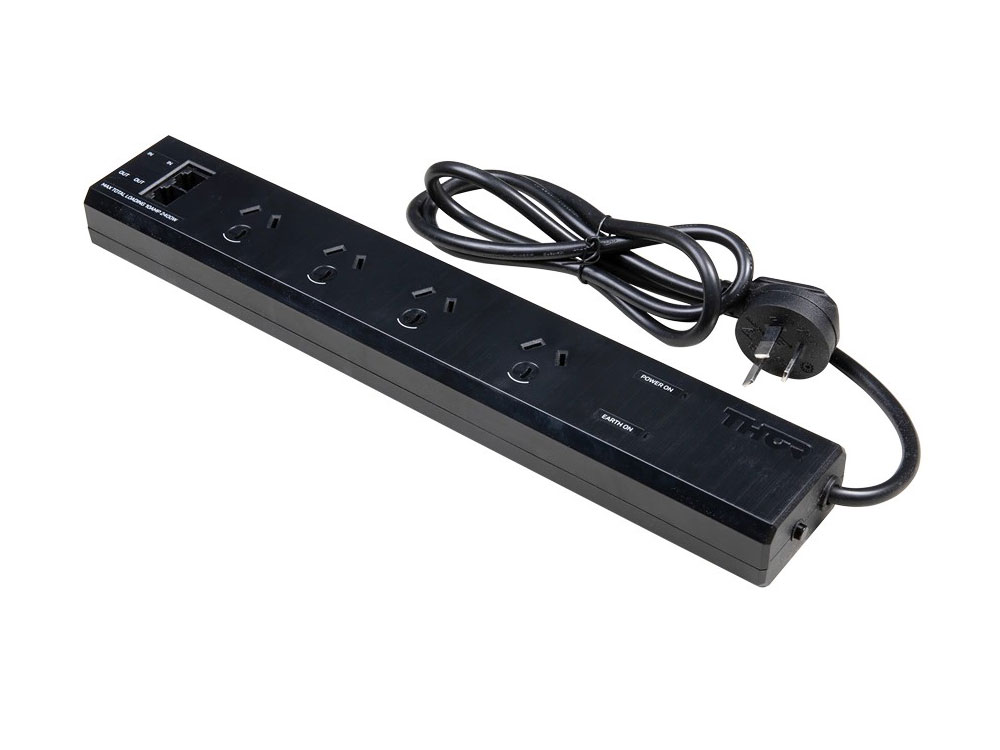

The THOR Smart Protect 4 E145A delivers intelligent surge protection and electrical noise filtration in a compact, space-saving design.
Four protected outlets provide convenient protection for AV systems, active speakers, computers, printers, security systems and other sensitive electronic equipment.
THOR’s Joule Bank Saving Technology uses Earth Diversion Technology to handle everyday spikes and surges while preserving the Joule bank for more extreme events.
The integrated SmartBrain system also filters electrical frequency noise, helping deliver cleaner power for improved picture and sound quality. Thor 4 Outlet – E1-45A
Key Features
- 4 protected AC outlets
- Single filtered and surge-protected bank
- Joule Bank Saving Technology
- Smart Buzzer
- Antenna protection
- RJ45 data protection
- NBN compatible
- Large plug adaptor support
- Resettable 10A safety circuit breaker
- Less than 1 nanosecond reaction time
- 6-year replacement warranty
- $100,000 connected equipment warranty Thor 4 Outlet – E1-45A
Specifications
| Manufacturer Model | E1/45A |
| Supply Voltage | 230–240VAC, 50Hz |
| Maximum Current | 10A |
| Maximum Load | 2400W (VA) |
| Reaction Time | <1 nanosecond |
| Clamping / Let Through Voltage | 510VAC |
| Maximum Energy Dissipation | 2115 Joules |
| UL1449 Equivalent | 705 Joules |
| Protected Outlets | 4 |
| Antenna Protection | F-type, 1 in / 1 out |
| RJ45 Protection | 1 in / 1 out |
| Cable Length | 1.2m |
| Operating Temperature | -10°C to +60°C |
