Description

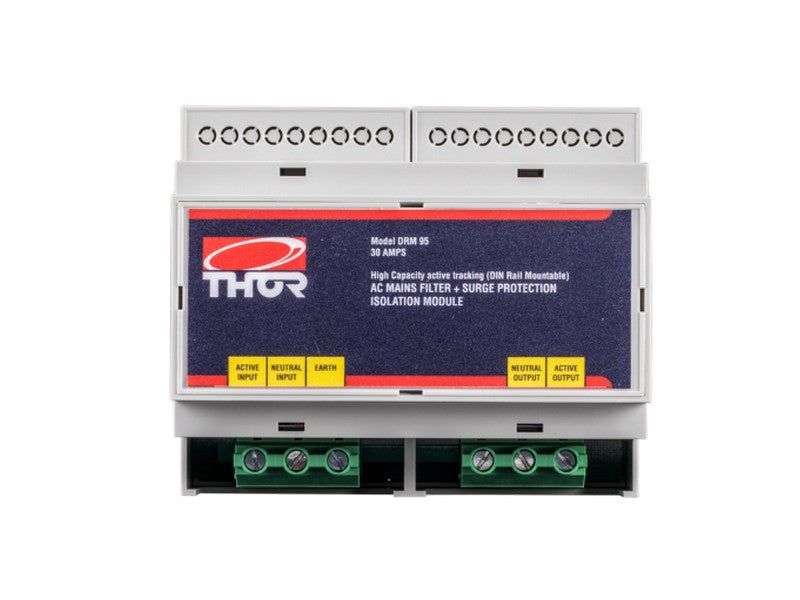

The THOR DRM95-30A Smart Series provides high-capacity whole-circuit AC mains filtration and surge protection for installations requiring a higher 30 Amp capacity.
Featuring THOR’s Dynamic Active Tracking filter technology, the DRM95-30A combines active electrical noise filtration with comprehensive spike and surge protection for sensitive electronic equipment.
The Dynamic Active Tracking system is designed to clean unwanted electrical frequencies across both the upward and downward curves of the AC sine wave. THOR states that this provides filtration across approximately 70% more frequencies compared with other filters, helping reduce electrical noise that may affect sensitive electronics.
Potential benefits include helping reduce or eliminate issues such as error codes, file corruption, system hangs and programming glitches caused by electrical interference. THOR Din Rail – DRM95 30AMP
High-Capacity Surge Protection
The DRM95-30A provides 2520 Joules of maximum energy dissipation and has survived surge hits exceeding 150kA.
Its protection operates across all three conductors — Line-Neutral (L-N), Line-Earth (L-PE) and Neutral-Earth (N-PE) — while its reaction speed of less than 1 nanosecond provides extremely fast response to electrical disturbances.

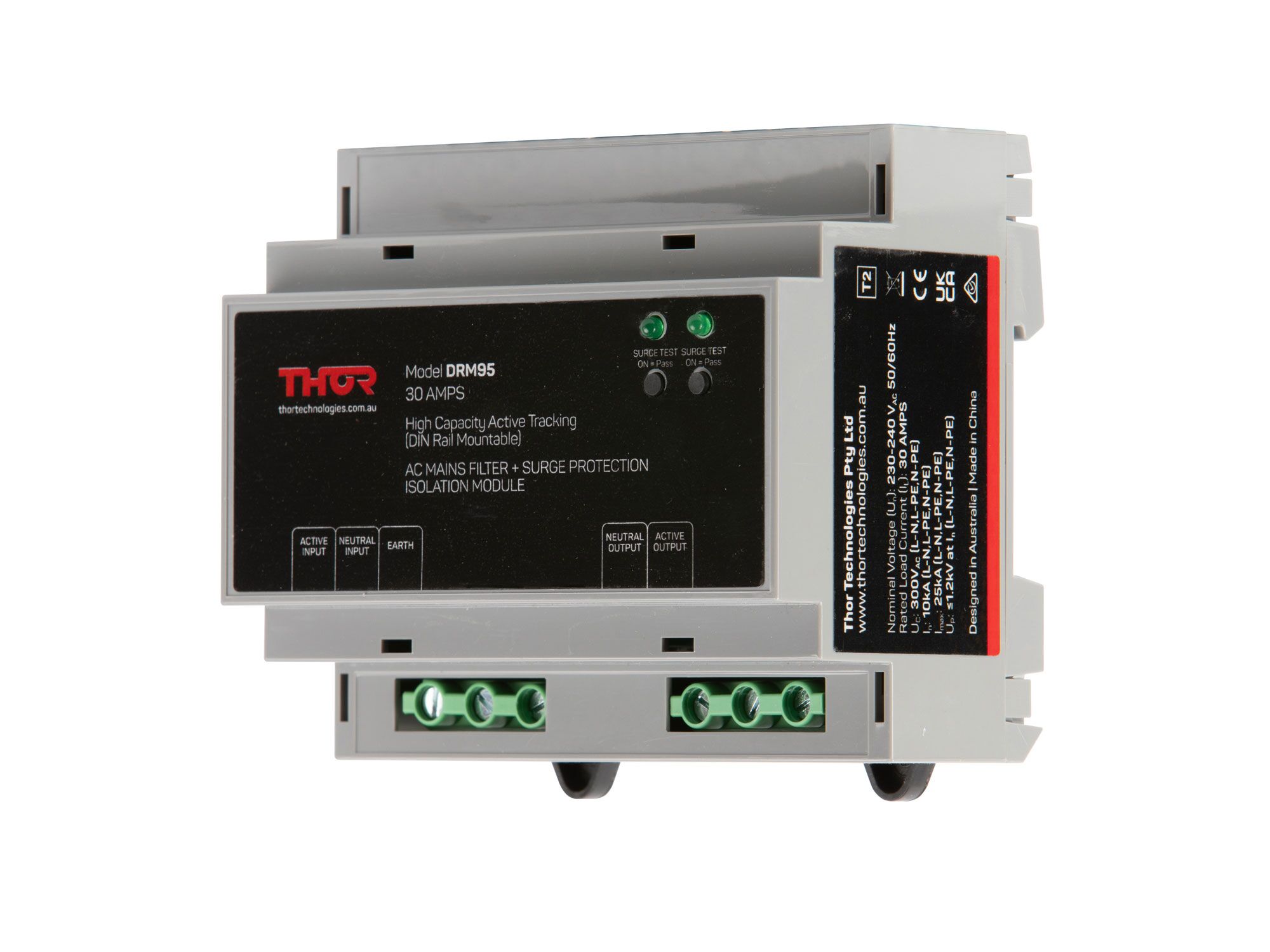

The 30A model measures 105mm wide × 90mm high × 60mm deep, making it wider than the 20A version while retaining the compact DIN rail format. THOR Din Rail – DRM95 30AMP
Spike & Surge Test Technology

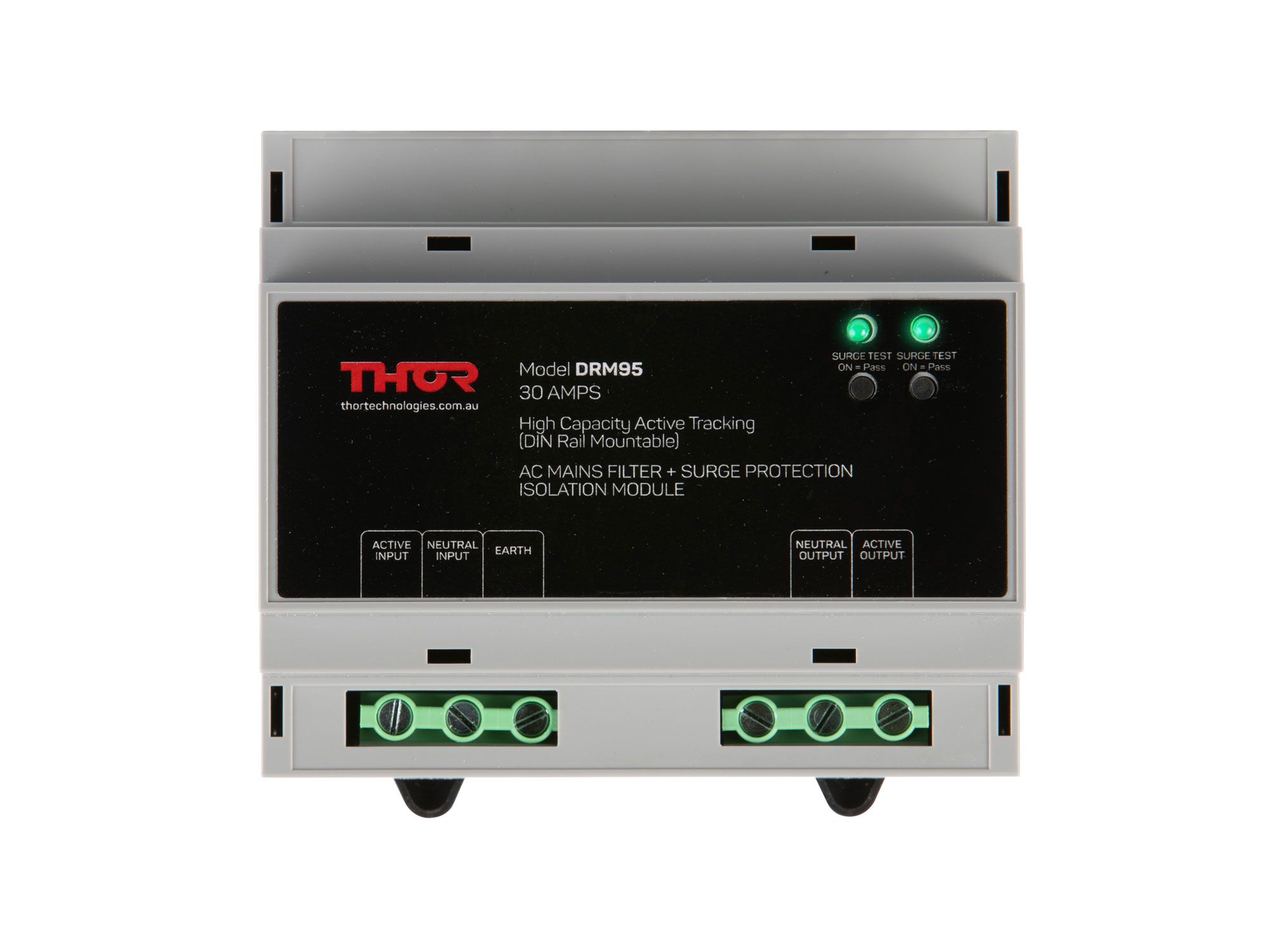

THOR’s integrated Spike & Surge Test technology provides a method of verifying that the surge protection circuit remains intact and continues to function as designed. THOR Din Rail – DRM95 30AMP
Designed for Whole-Circuit Protection
The DRM95-30A is suitable for protecting and filtering power supplied to applications including:
- AV and sound circuits
- LED lighting systems
- Air-conditioning systems
- PCBs and other sensitive electronic equipment
- Systems affected by speaker hissing
- Subwoofer thumping
- Hum and electrical noise
- Picture pixelation
- Blurred or scrambled video THOR Din Rail – DRM95 30AMP
Technical Specifications
Model: DRM95-30A
Capacity: 30 Amp
Supply Voltage: 230–240VAC, 50Hz
Dimensions: 105mm (W) × 90mm (H) × 60mm (D)
Maximum Energy Dissipation: 2520 Joules
Clamping Voltage: 300V
Nominal Discharge Current: 10kA
Maximum Discharge Current: 25kA
Reaction Speed: Less than 1 nanosecond
Earth Leakage: Less than 1mA
Operating Temperature: -10°C to +60°C
Protection Modes: L-N, L-PE and N-PE
Installation: Requires an electrician
Warranty: 6-Year Replacement Warranty
