Description

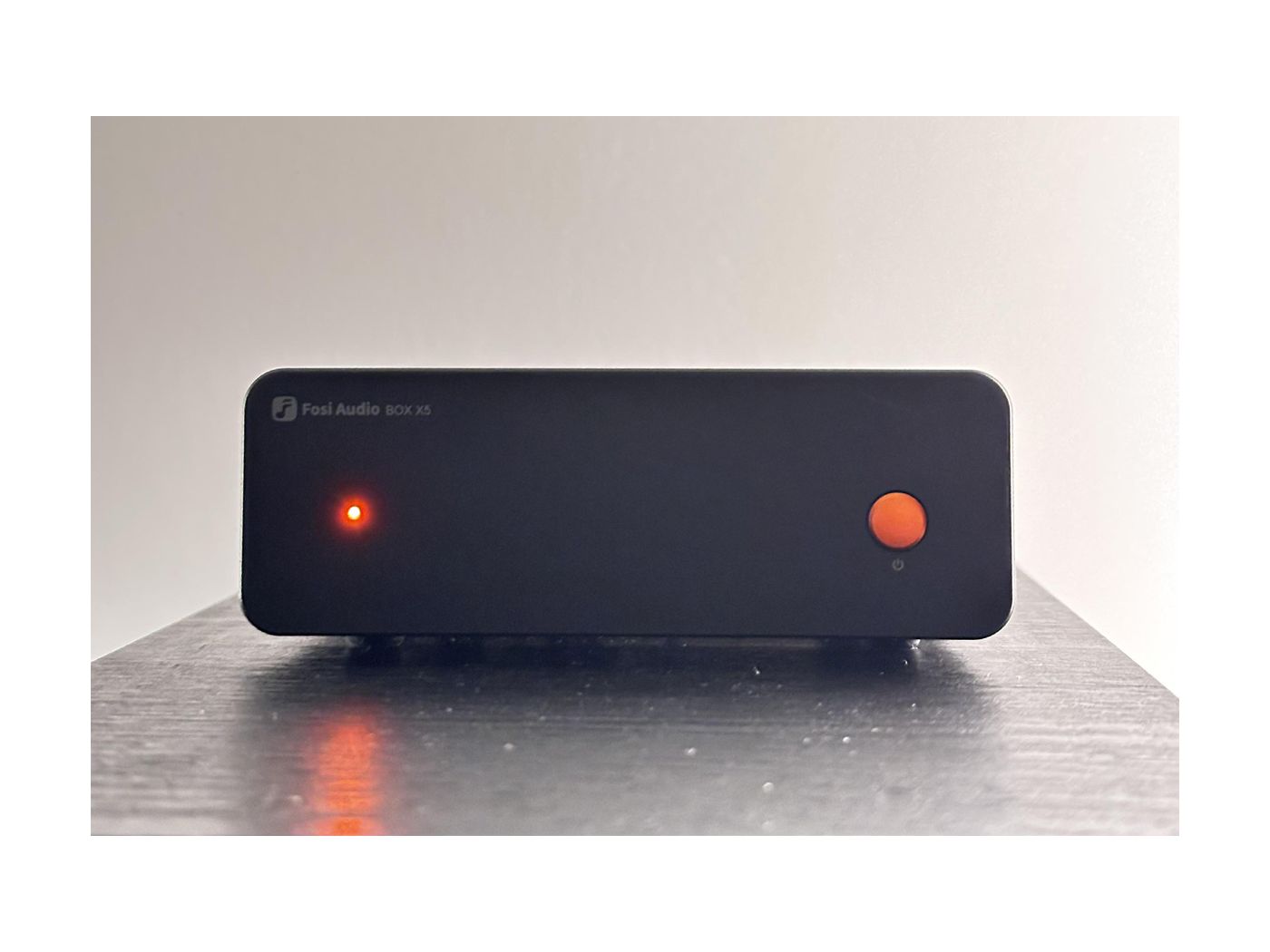

The Fosi Audio Box X5 phono preamplifier is a small, high-quality device that accepts MM and MC cells. Based on the use of OPA1612 in DIP8 and high-fidelity RIAA equalization, it delivers highly qualitative sound reproduction of your favorite vinyl records. It also features 4 levels of gain adjustment, enabling it to adapt to a variety of sources. Gain can be set at 66dB, 56dB, 48dB and 38dB. The Fosi Audio Box X5 is powered by 16V AC.
Fosi Audio Box X5: MM/MC compatibility and 4 gain levels
The Fosi Audio Box X5’s four gain levels ensure compatibility with different sources. In addition, a switch lets you set the input impedance to 47kOhm for MM cells or 100kOhm for MC cells.

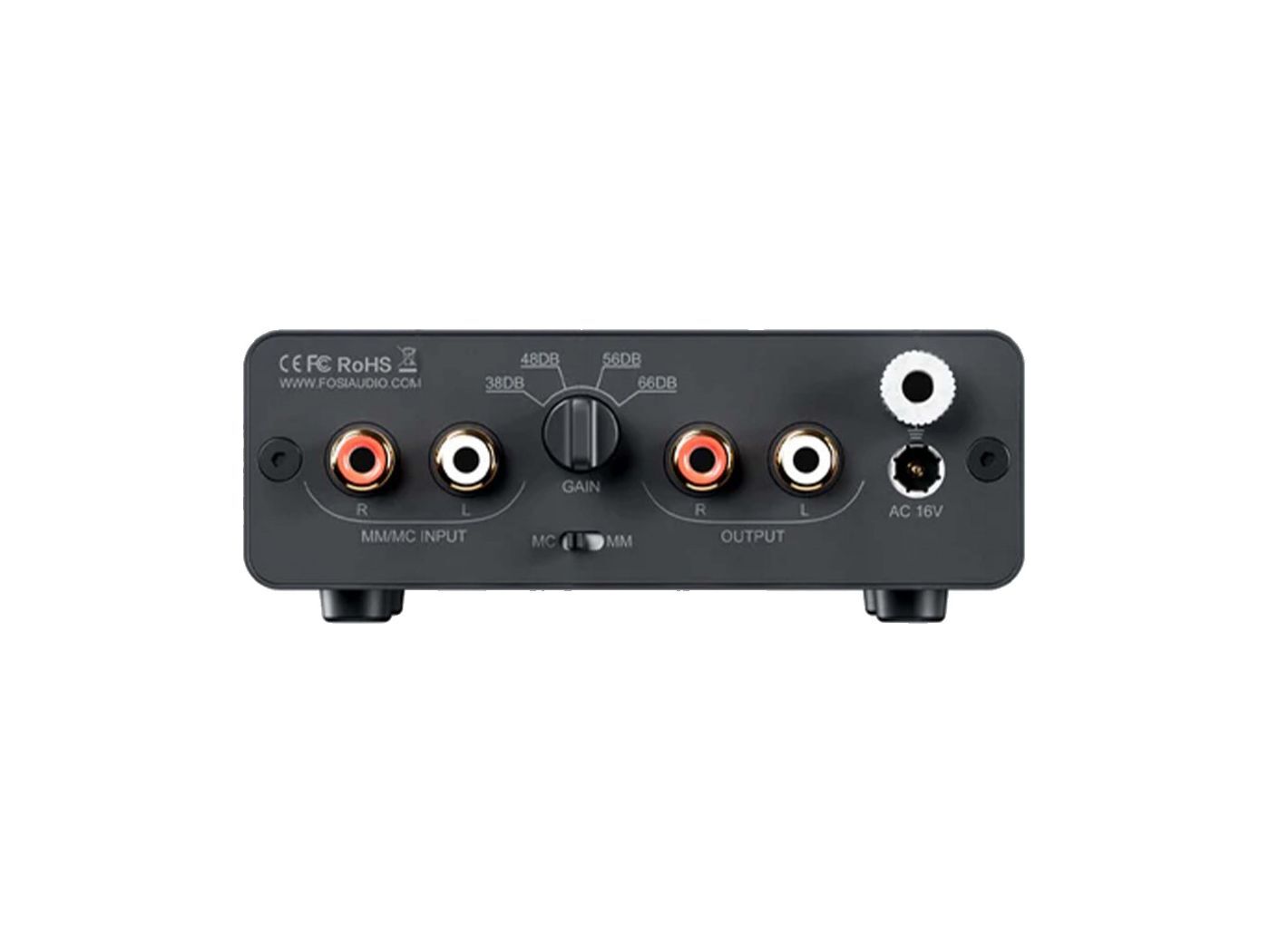

Gain can be set to the following values via a rotary switch on the rear of the unit: 66dB, 56dB, 48dB or 38dB.
Fosi Audio Box X5: high-fidelity RIAA equalization
The equalization of the Box X5 ensures a level of detail and clarity in the final sound reproduction for a rich listening experience. This equalization significantly reduces noise levels and delivers a wide dynamic range.
Fosi Audio Box X5: Dual OPA1612
The DIP8-mounted OPA1612s on the Box X5’s circuit offer a high-quality audio experience, and are also easily replaceable for any user wishing to customize their listening experience.
Specifications
| Specification | Detail |
|---|---|
| Product Type | Phono preamplifier |
| OPA | OPA1612 DIP8 format |
| Input | 1× RCA phono input (MM / MC) |
| Output | 1× RCA output |
| THD | ≤ 0.009% |
| SNR | ≥ 92dB |
| Frequency Response | 20Hz – 20kHz (±0.15dB) |
| Gain Adjustment | 66dB / 56dB / 48dB / 38dB |
| Power Supply | 16V 1A |
| Dimensions | 104 × 165 × 356 mm |
“Fosi innovates by bringing best in class performance while packaging the unit in an attractive enclosure while keeping the cost very reasonable. There is nothing more to ask! I am happy to recommend Fosi Box X5 phono stage.”
-Fosi Audio Box X5 test by Audio Science Review
