Description

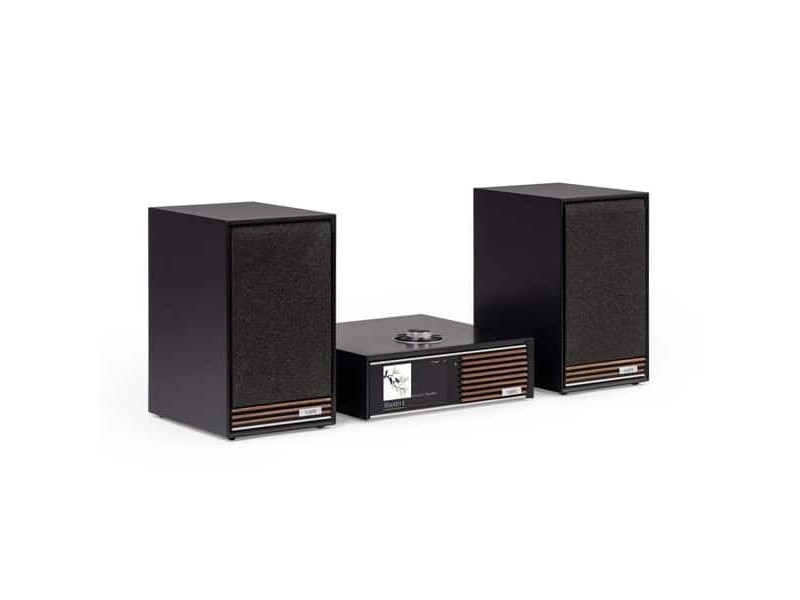

Ruark Music System (R610 Music Console + Sabre-R Bookshelf Speakers) Charcoal + BONUS RS1 Subwoofer

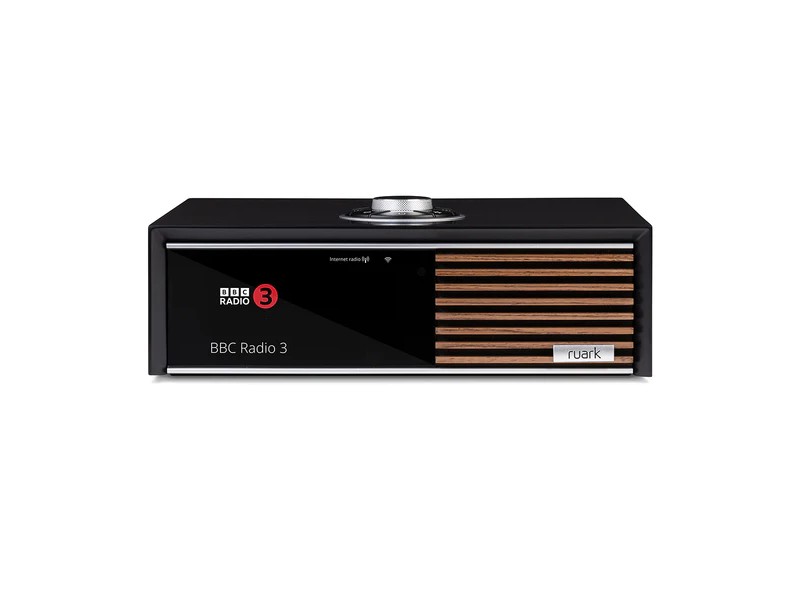

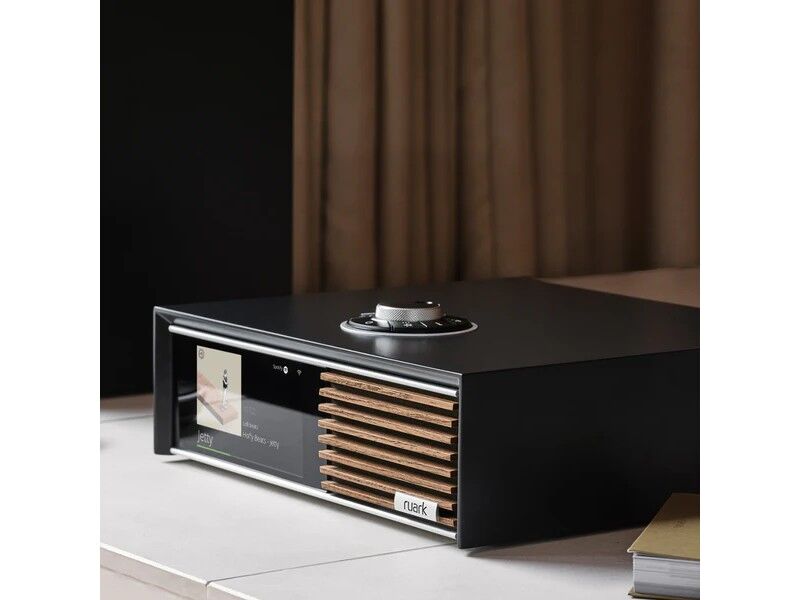

About Ruark R610 Music Console
With comprehensive connection and streaming capabilities, R610 has been painstakingly designed for musical performance, to get people back into the joy of music.
Get Back to Music
The Stereo Music Centres of the 1970s started the hi-fi revolution and our new R610 Music Console brings this highly popular concept back and completely up to date. With comprehensive connection and streaming capabilities, R610 has been designed and crafted for sound, to get people back to the joy of music.
- Apple AirPlay and Google Cast
- Spotify Connect and TIDAL Connect built-in
- Apple Music, BBC Sounds, Deezer, Qobuz and more
- Hi-Res music file support up to 32-bit 384kHz
- Internet/DAB/DAB+ and FM tuners
- HDMI ARC/eARC connection
The R610 streaming amplifier provides all the connectivity you are ever likely to need, and with a powerful processor it is capable of handling the highest quality audio streams. With Internet Radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast all built in, a vast selection of music awaits to be discovered.
R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback we will soon be unveiling our own Compact Disc Player called R-CD100. This will integrate and connect with R610 and our other 100 Series models via the USB socket on the rear. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.
Our RotoDial controller has been a distinctive part of our products since 2006. For 100 Series we have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5″ TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.
R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system’s motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 watts per channel, R610 is controlled and dynamic – but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.
Specifications:
Audio
Amplifier: 2 × 75W per channel Class-D
Frequency response: 22Hz-22kHz +0/-3dB
Enhancements: Stereo+, bass, treble, loudness
DAC: Up to 32-bit/384kHz resolution
Features
Display: Hi-contrast 5″ colour TFT
Auto-Standby: Automatic power saving mode
Adjustable input levels: Line-in, phono-in, optical and HDMI
USB Charge Port: USB-C 5V 1A (5W)
Software Updates: Over-the-air and USB
Controller: Ruark RotoDial control system
Remote control: Ruark RotoDial Bluetooth rechargeable remote
Presets: 20 global presets
App control: Via Spotify, BBC Sounds and more
User interface languages: Multilingual

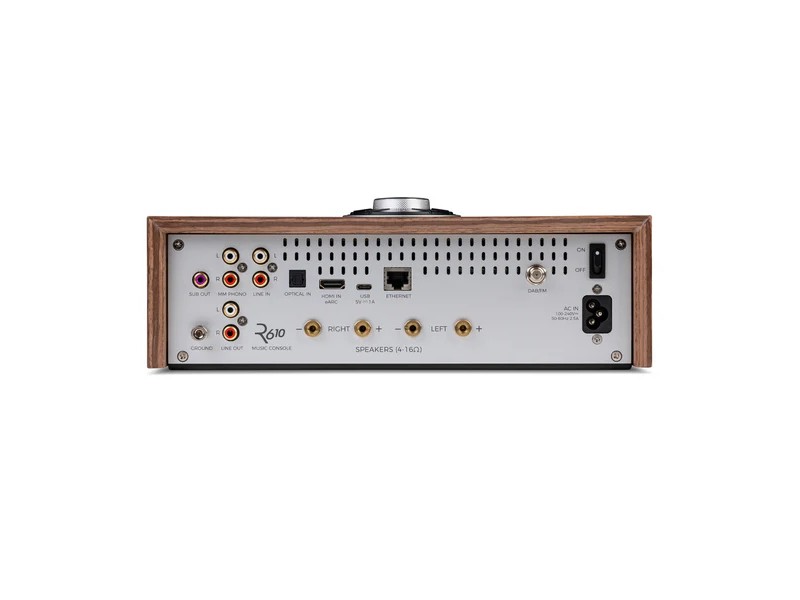

Connectivity
Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
Multiroom capable: Via Apple AirPlay and Google Cast
Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Streaming: Apple AirPlay and Google Cast
Built-in music services: Spotify Connect and TIDAL Connect
Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and more
Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
Ethernet: RJ45 connector 10/100 Mbps
DLNA: UPnP™ DLNA media server compatible
CD support: CD playback via external USB CD drive (optional)
HDMI: ARC and eARC
Line-input: Stereo RCA input (up to 2.3Vrms)
Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors
Subwoofer-output: Volume related full-frequency mono RCA connector
Optical input: TOSLINK digital input up to 24-bit 192kHz
USB-C: playback port
Aerial connector :75Ω F-type
Supported Audio Formats
FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
MP3: up to 48kHz 320kbps
AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
General Specifications
Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer
Product dimensions:
H95 × W300 × D280mm (cabinet)
H107 × W300 × D280mm (with Rotodial controls)
Product weight: 4.1kg
Product power input: 90-240VAC, 50-60Hz, 2.5A
Power consumption: 2.0W network standby, 8.0W idle
Gift Box Content:
R610 Music Console,
3m speaker cables,
rechargeable Bluetooth RotoDial remote with charge cable,
telescopic aerial,
aerial spanner,
mains power lead,
user guide

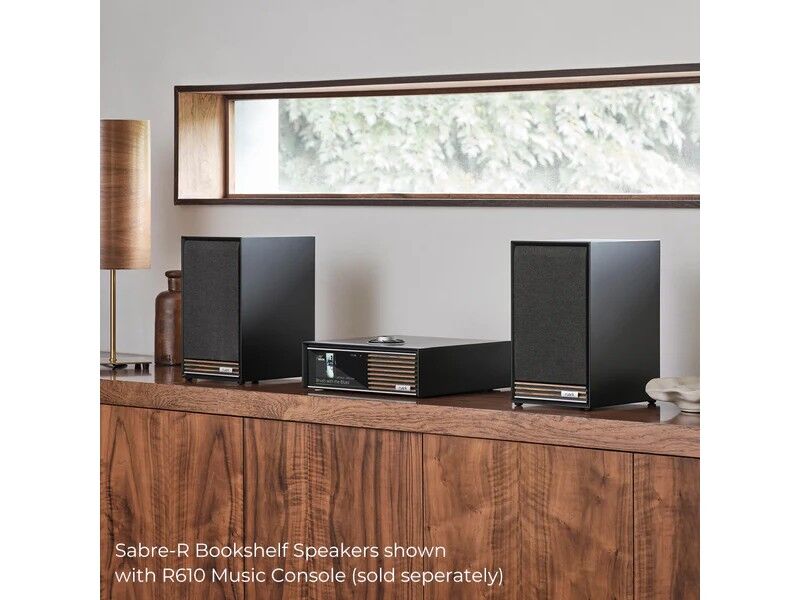

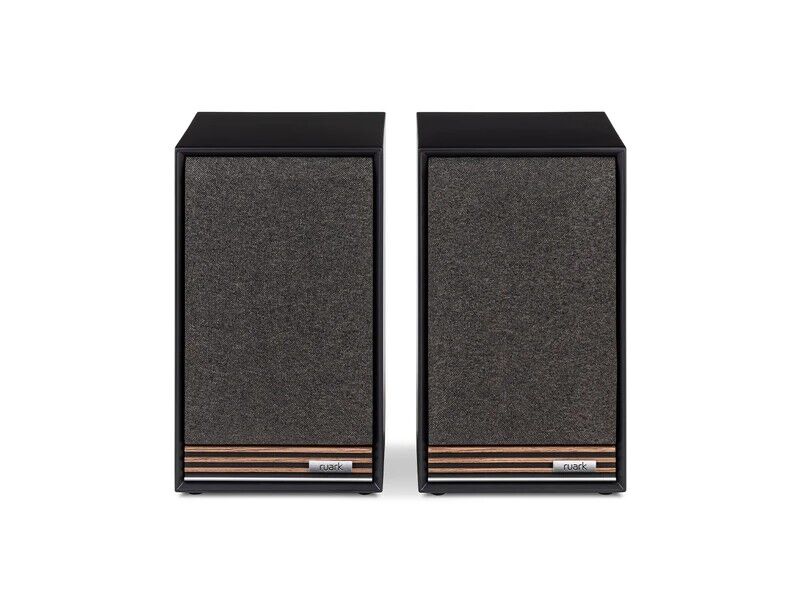

About Ruark Sabre-R Bookshelf Speaker Pair Charcoal
With many customers still enjoying our original Sabre loudspeakers, launched in 1985, the Sabre-Rs have likewise been designed to last and enthral a new generations of music lovers.
A celebration of Ruark’s heritage, Sabre-Rs have been exquisitely crafted and refined with the understanding of how materials and components combine to deliver musicality that you will enjoy endlessly.

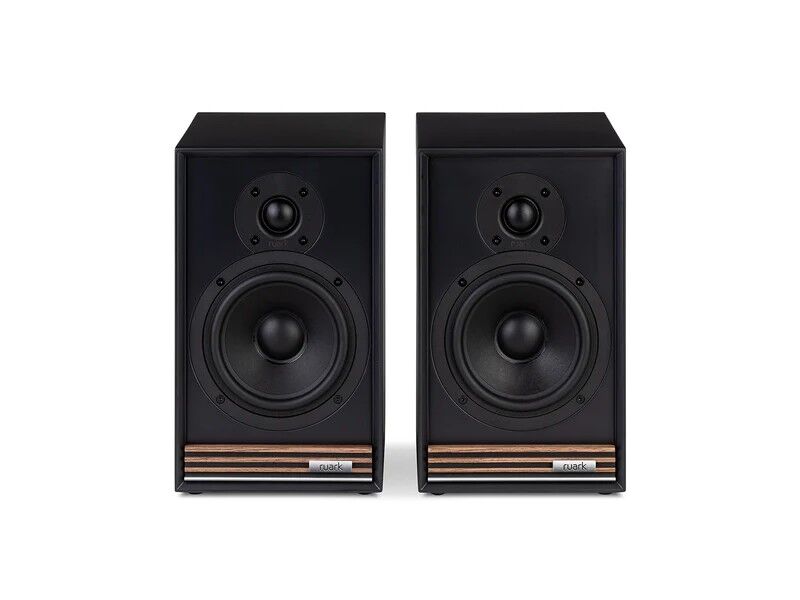

- Crafted with over 40 years of audio heritage
- For stand-mount or bookshelf use
- 2-way tuned bass reflex design
- Ruark 26mm silk dome tweeter
- Ruark 15cm treated natural fibre cone woofer
Creating a great sounding speaker is an art that can only be learned through years of experience. The cabinets for Sabre-R have been carefully tuned and optimised to provide ideal working conditions for our long-throw bass-mid drivers and endless hours have been spent developing and fine tuning the crossovers, so a seamless integration between the drivers is attained. The end result are speakers with a remarkable performance that breathe zest and life into every song.
Sabre Heritage
For over 40 years our ethos has always been to design products that we ourselves would be proud to own. It was our founders shared passion for sound that led son Alan, and father Brian O’Rourke to form Ruark Acoustics and launch their first loudspeaker called Sabre to great acclaim in 1985. Our latest Sabre-R speakers bring us full circle to continue this mission, with a speaker that like our original, customers will enjoy for many years to come.
Made to Be Seen
In true Ruark style, our attention to detail is paramount and the Sabre-R Bookshelf Speakers are as pleasing to the eye as they are to the ear. Hand-crafted and clad with finishes usually only found on fine furniture, the Sabre-Rs bring understated elegance to both classic and contemporary interiors. The veneers used also have true eco credentials, where sustainable woods are skillfully spliced and recomposed to resemble slow-growing hardwoods with unique and eye-catching grain patterns.
Designed for Sound
Creating a great sounding speaker is an art that can only be mastered through years of experience. Like a chef who can make your taste buds dance, the key is knowing the ingredients to use and how to best use them. The cabinets for Sabre-R have been carefully tuned and optimised to provide ideal working conditions for our custom long-throw bass-mid drivers and endless hours have been spent fine tuning the crossovers, so a seamless transition between the drivers is attained. The end result are speakers with a remarkable musical performance that breathe zest and life into every song.
Specifications:
- Cabinet: damped and braced, wood composite construction
- Design: 2-way bass reflex. Double flared port tuned to 55Hz
- Woofer: Ruark 15cm treated natural fibre cone, 30mm 4-layer voice coil, long-throw motor with precision cast chassis
- Tweeter: Ruark 26mm silk dome, neodymium motor system with aluminium heatsink
- Nominal impedance: 6 Ohm (min 4.2 Ohm)
- Frequency response: 50Hz – 20KHz +/- 3dB (free space conditions)
- Sensitivity: 86dB/W/m
- Crossover frequency: 2.2kHz
- Recommended amplifier: 25-100W
- Input connectors: two sets of 4mm gold plated binding posts for single or bi-wire connection
- Grille: removable magnetic frame with acoustically transparent cloth
- Placement: stand or bookshelf
- Cabinet dimensions: H290 × W175 × D215mm (D245mm inc. connectors)
- Finishes: Fused Walnut veneer or Satin Charcoal lacquer
- Weight: 5.0kg each
- Box contents: 2 × Sabre-R, optional elastomer feet, quick start guide

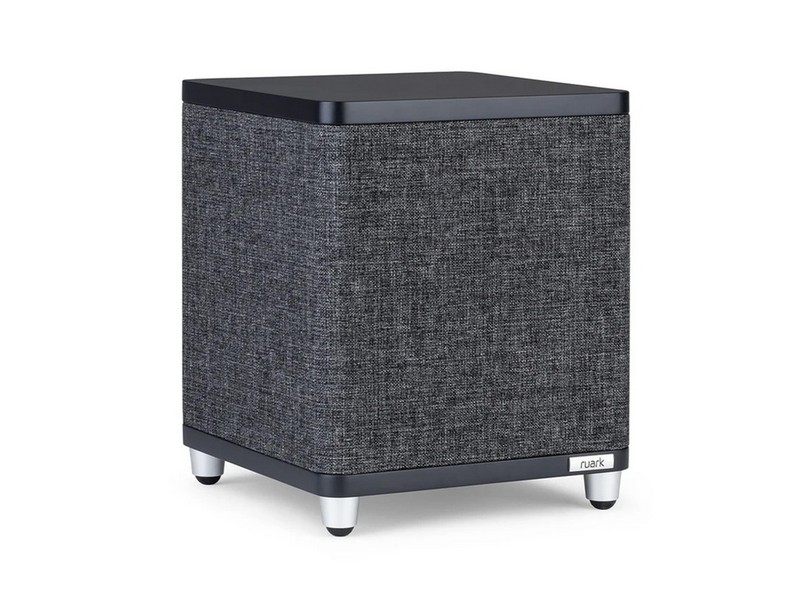

About RUARK RS1 Subwoofer
The Foundation of Music
Bass is the foundation of music. It is the element that makes you feel the rhythm, the groove, and the emotion of a song. Bass can make your heart beat faster, your body move, and your mood change. Whether you listen to rock, pop, hip hop, jazz, or classical music, clean and extended bass adds a new dimension to musical enjoyment.
Controlled Delivery
At Ruark Audio, designs focus on elevating the music experience. RS1 delivers precise and controlled bass that is both musical and powerful — thanks to its custom-tuned enclosure and drivers.
Its 100-watt Class D amplifier provides robust power in any setting, with built-in soft clipping protection to prevent damage from overloading. Plus, it features auto-on/standby for easy setup and adjustment with no extra effort.
Developed Through Demand
The RS1 was developed due to the overwhelming demand from customers requesting a companion sub for the award winning MR1 Bluetooth speakers.
Being Ruark Audio, they also saw that there was a need for a subwoofer with style. Where many subs look unattractive in a domestic environment, the tailored grille and hand-crafted wood panels of RS1 means it fits seamlessly with other furnishings, making it a product that anyone will be proud to display in their home.
Enhancing Your Experience
RS1 offers powerful low tones that are beyond the capacities of smaller speakers, resulting in a more convincing and fulfilling listening experience. It’s an ideal complement to the MR1 and R3S models and virtually any other setup in need of a stylish and top-quality subwoofer, allowing users to enjoy a richer sonic experience every time.
Specifications:
- Frequency response 25Hz – 200Hz
- Cabinet Tuned passive radiator enclosure
- Drivers 170mm treated fibre long-throw active driver & 170mm passive radiator
- Amplifier 100W RMS Class D with soft clipping filter
- Controls Adjustable crossover 50–180Hz, input/volume level control and 180 degree phase switch
- Auto on Automatically turns on and sleeps after 15 minutes when no signal is detected
- Input Sub-input via Mono RCA input (up to 2.3Vrms)
- Finish Lead Grey cabinet cloth with Rich Walnut top and bottom panels
- Product compatibility RS1 is compatible with MR1, R3S and R410 models or any other active speaker or amplifier with subwoofer or pre-out phono connectors
- Box contains RS1 subwoofer, mains lead, 1.5m RCA connector lead and quick start guide
- Power consumption 0.5W standby, 2.0W idle
- AC power input 100-240V, 50-60Hz
- Product dimensions H300 × W250 × D265mm (inc. feet and controls)
- Product weight 6.7kg
