Description

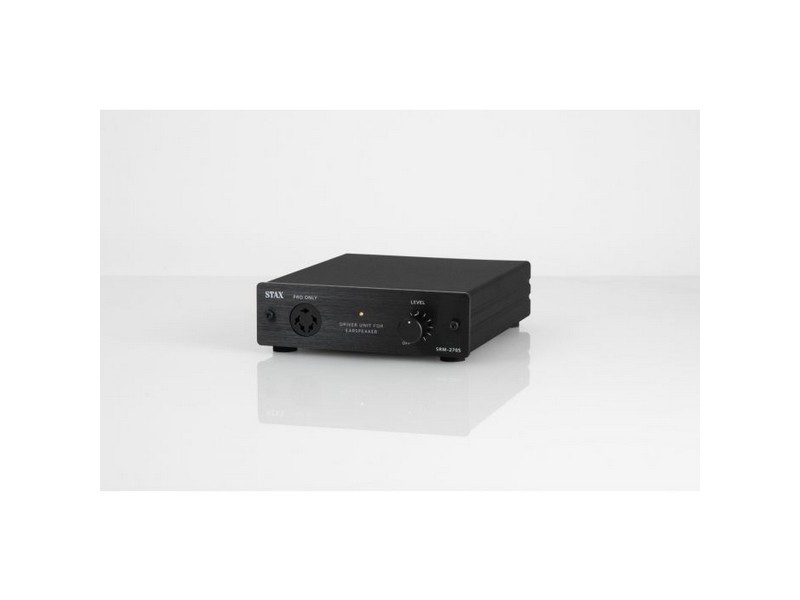

Stax SRM-270S Elecrostatic Driver
SRM-270S is an electrostatic driver designed for use with elecrostatic ear speakers such as SRS-X1. It is not compatible with standard headphones.
The SRM-270S has updated the design of the previous model (SRM-252S), including a higher quality RCA pin jack, a 3mm thick front aluminum panel, and an extruded aluminum case with increased size and improved heat dissipation. The first stage of the amplifier is selected from the latest low-noise FET, and the output stage is equipped with a refined emitter follower circuit. The latest design know-how from recent driver development trends is condensed into a compact housing. It is equipped with parallel output terminals for input and output, so it can be easily combined with your current system.
Features:
- Enhanced Heat Dissipation: A 3mm-thick front aluminum panel and a larger aluminium extrusion case for effective heat management. aluminum case for effective heat management.
- High-Grade Connectivity: RCA pin jacks and a 3mm-thick front aluminum panel ensure a pristine connection.
- Low Noise FET: Selected for the First Stage amplifier, paired with a refined emitter follower circuit in the Output Stage for unparalleled clarity.
- Compact Chassis: Easy for placement, transportability and aesthetic appeal

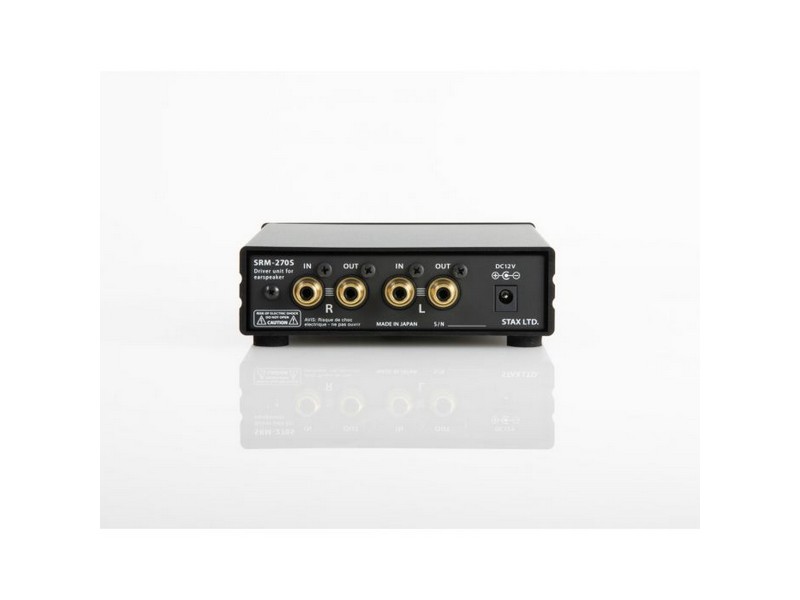

- Flexible Installation: PARALLEL OUT terminals facilitate easy incorporation into your existing audio system, whether for music enjoyment or enhancing movie experiences at your desktop or bedside.
SPECIFICATIONS:
- Frequency response DC to 35,000Hz / +0, -3dB
- Harmonic distortion 0.01% or less / 1kHz 100V r.m.s.
- Amplification 58dB (800 times)
- Maximum output voltage 280V r.m.s. / 1kHz
- Input impedance 25kΩ
- Input terminals RCA x 1
- Output terminal Parallel out x 1
- Bias voltage 580V DC
- Power supply AC adaptor included
- Power consumption 12VDC / 500mA
- External dimensions 132(W)×38(H)×153(D)mm (excluding protruding parts)
- Weight 540g (main unit only)
