Description

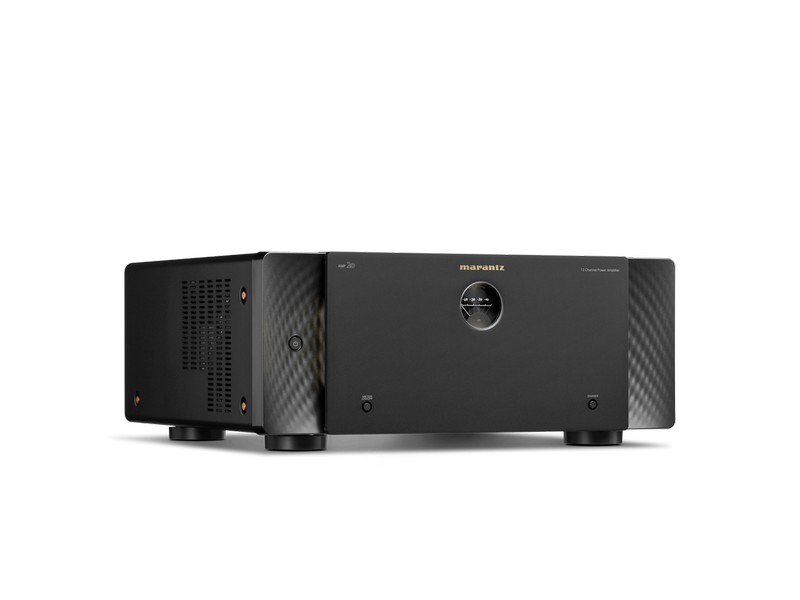

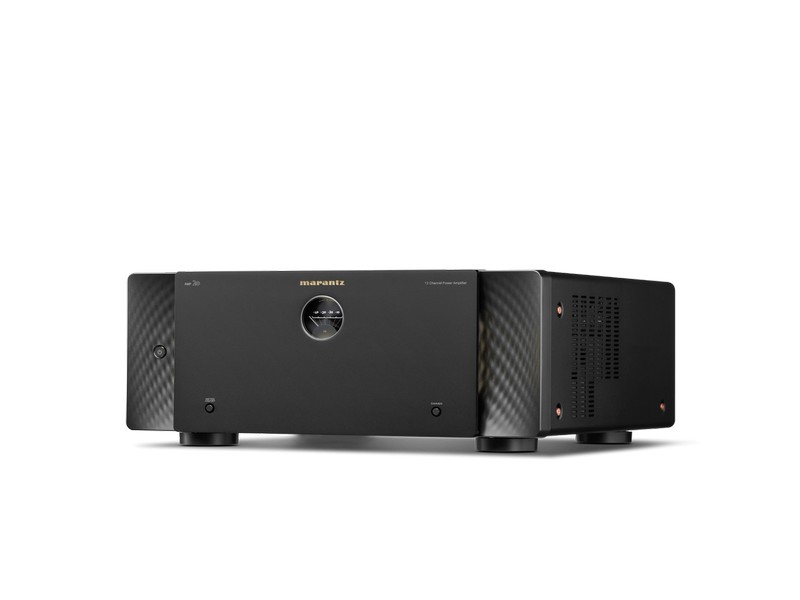

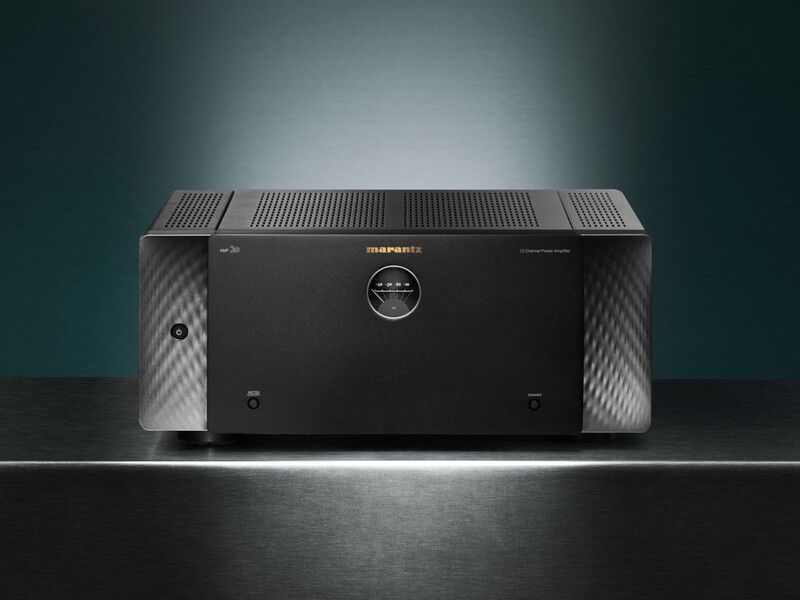

Marantz AMP 20 Reference 12ch Power Amplifier
AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.
Key Features:
- Crafted in Shirakawa, Japan
- 12 Channels
- 200 Watts per Channel
- Exclusive HDAM
- Custom Switching Amplifiers
- Selectable Output Modes
- Detailed and immersive sound transforms your home theatre
- 200 watts per channel into 8Ω / 400 watts per channel into 4Ω
- 12 channels powers large home theatres
- Bi-amp mode drives high- and low-frequency sections of loudspeakers independently
- BTL Mode (Bridge mode) combines two channels into a single 400-watt per channel into 8Ω
- Perfect match for Marantz AV 20 preamplifier
- Balanced XLR input is ideal for reducing input noise

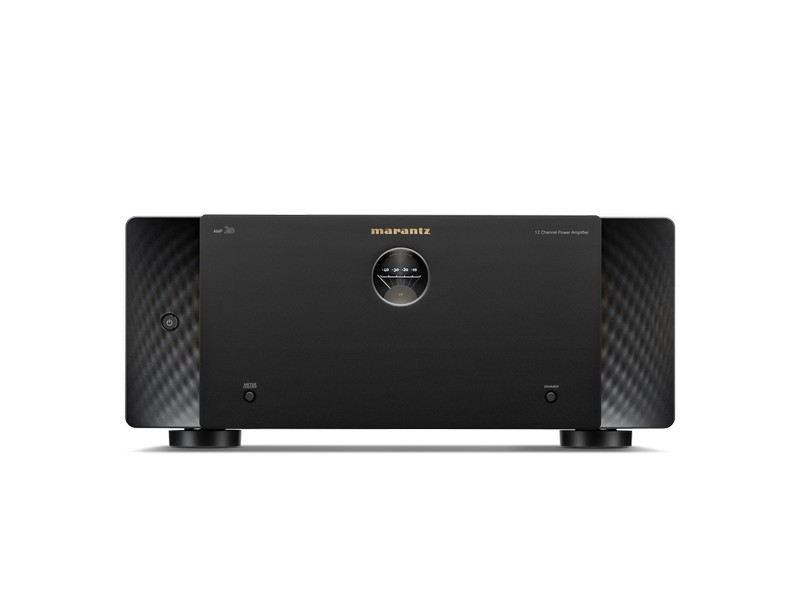

- Porthole with analogue meter measures output
- Soft side lights cast a warm glow on the front surface of the amplifier
- Elegant design matches rich, warm sound
Ultimate Performance
AMP 20 combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. When paired with AV 20, the results are unforgettable.
AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home.
Our Marantz Sound Master meticulously tuned AMP 20 for amazing performance with careful parts selection to create outstanding sound in your home.
AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels with no loss in fidelity.
Make sure you get the best possible performance from your AMP 20 by combining it with other Marantz products – such as the AV 20.
Specifications:

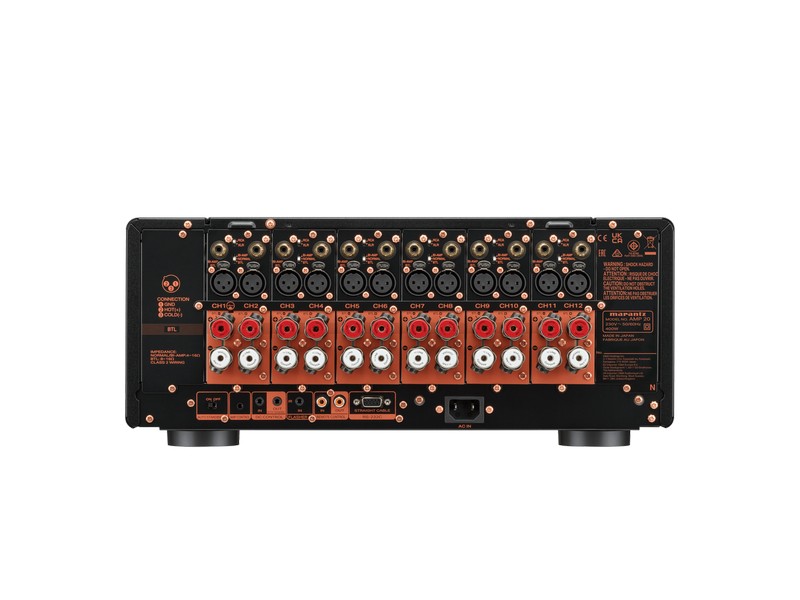

Inputs Outputs
Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 12
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chassis Copper Plated
Multi-Room CI
RS232 Control Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1
Specifications
Number of poweramps 12
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
General
Front Display Level Meter
Auto Power Off Yes
Metal Front Panel Yes
Power Consumption 400W
Power Consumption, No-Sound 110W
Standby Consumption 0.2W
Maximum Dimensions (W × D × H) 17.4 × 17.4 × 7.5 in.
Weight 39.7 lbs
What’s in the box:
Main unit, quick start guide,
AC cord,Amp control cable,
Remote control cable,
SP terminal wrench
