Description

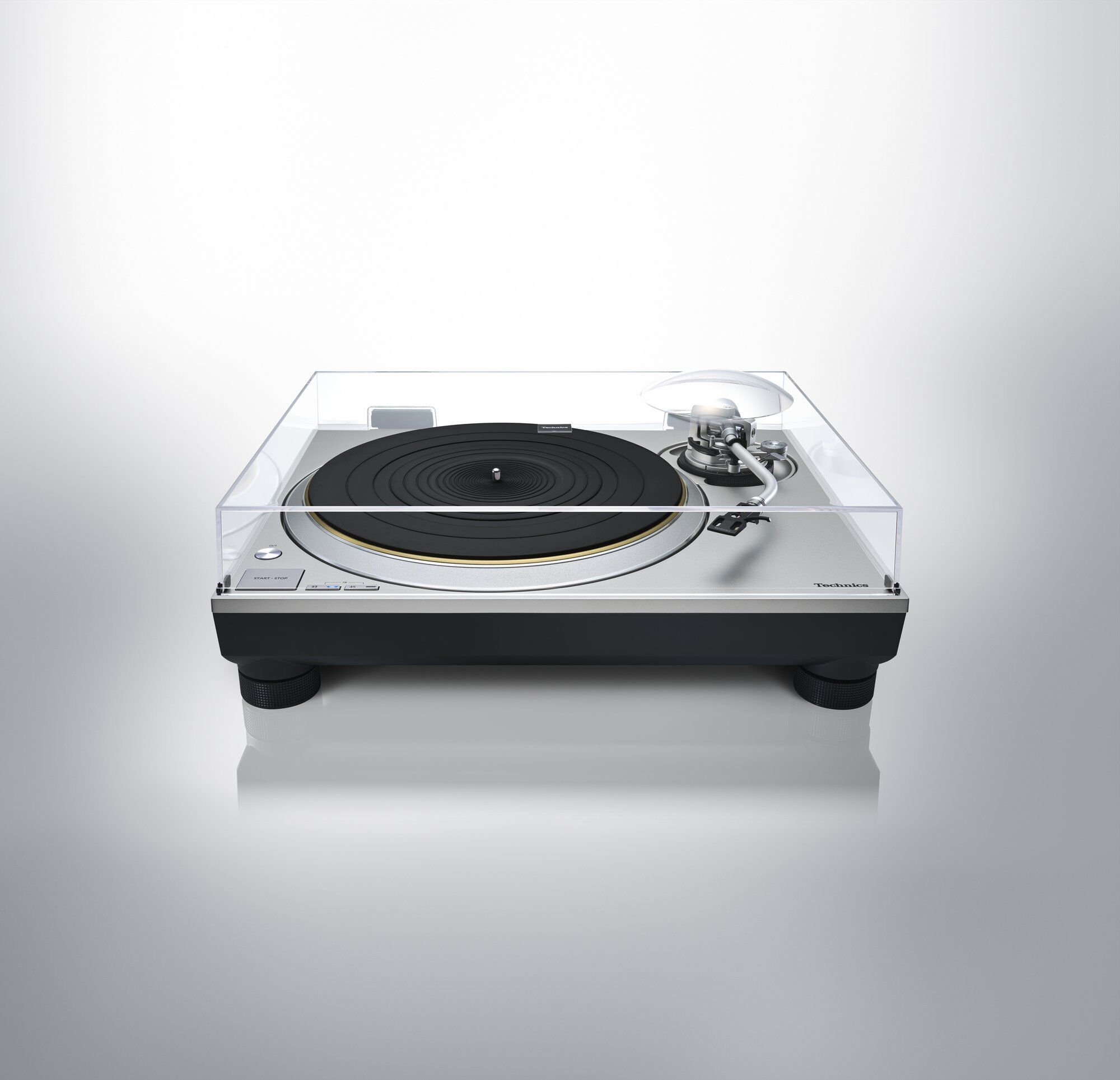

The Technics SL-1300G represents the pinnacle of direct drive turntable engineering, combining decades of Technics expertise with cutting-edge ΔΣ-Drive (Delta Sigma Drive) motor technology. This Grand Class turntable delivers exceptional rotational accuracy and vanishingly low vibration, ensuring pristine analog reproduction for high-end residential and commercial installations.
Advanced Engineering for Superior Performance
Revolutionary Motor Technology: – Coreless Direct Drive Motor eliminates cogging for perfectly stable rotation – Twin-rotor construction reduces bearing load while maintaining high torque – ΔΣ-Drive system harnesses PWM signal processing to suppress motor vibrations and harmonics – Starting torque of 0.32 N·m with 0.7s build-up time to 33-1/3 rpm – Industry-leading wow and flutter of just 0.025% W.R.M.S.

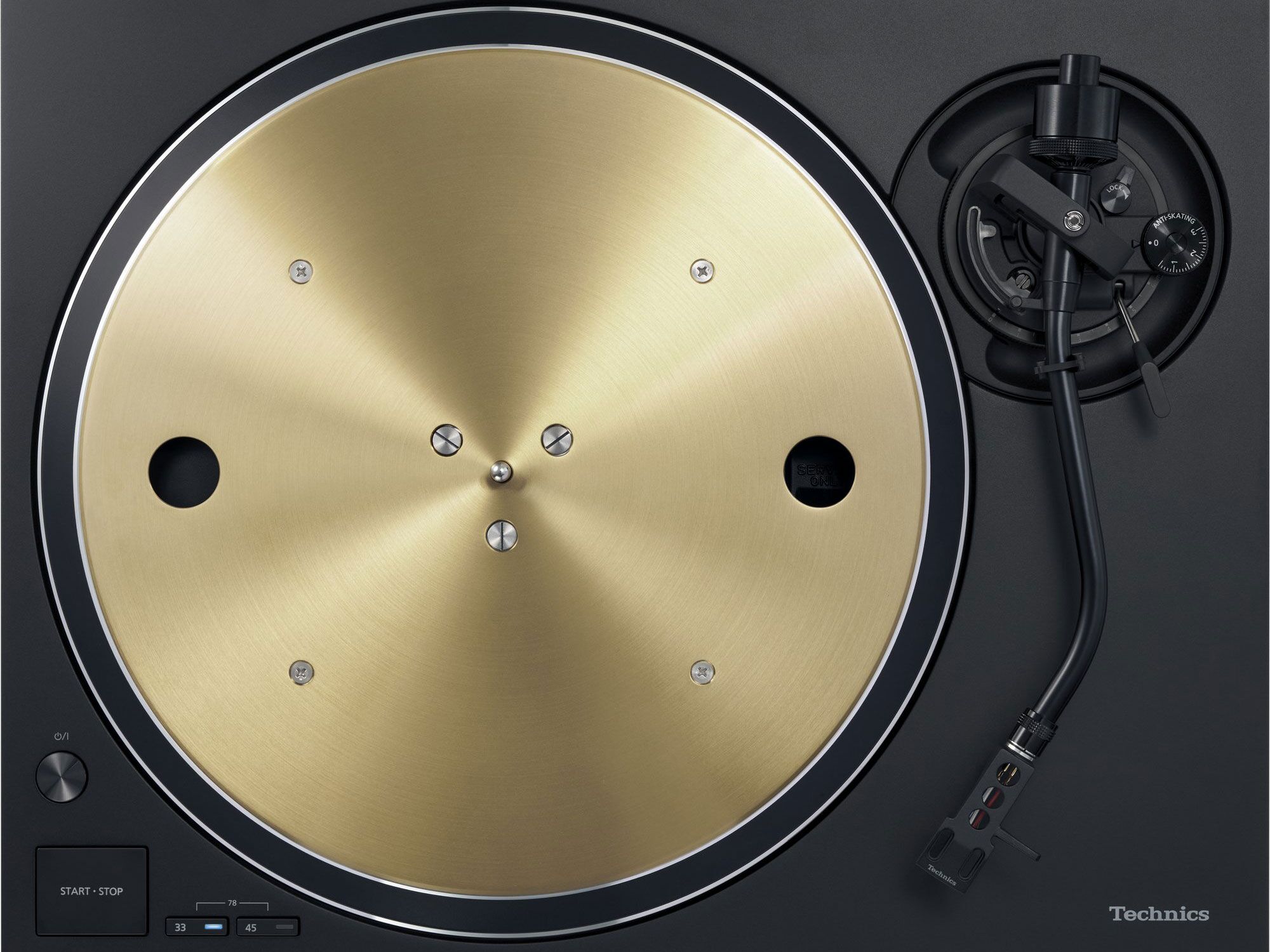

Vibration-Resistant Construction: – Three-layered platter (brass and aluminum die-cast, 3.6kg) with deadening rubber for superior inertial mass – Two-layered cabinet with BMC and aluminum die-cast chassis for exceptional rigidity – High-precision factory balance adjustment on every unit (certified with “BALANCED” sticker) – High-damping silicon insulators and reinforced ribs between motor and tonearm
Precision Tonearm & Clean Signal Path

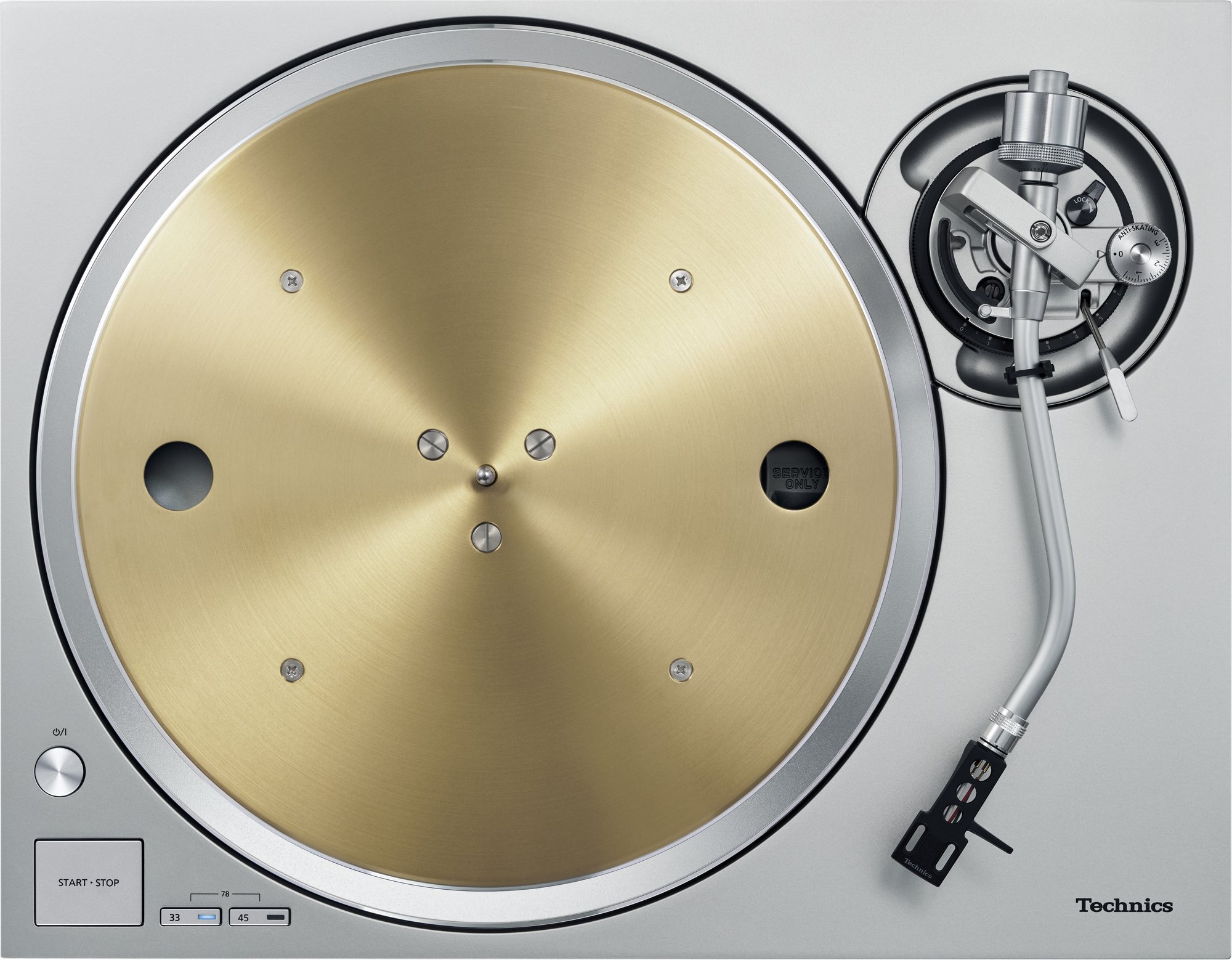

The static-balance universal S-shaped tonearm features a lightweight aluminum pipe with gimbal suspension and high-precision bearing, hand-assembled by skilled artisans for exceptional initial-motion sensitivity. The 230mm effective arm accommodates cartridges from 5.6-28.5g (with optional auxiliary weights), while gold-plated phono terminals and internal metal shielding ensure pristine signal integrity.
Multi-Stage Silent Power Supply with current injection active noise cancelling and high-speed switching (>100kHz) eliminates transformer-induced vibrations while providing stable, noise-free power delivery across the audio bandwidth.
Specifications
- Speeds: 33-1/3, 45, and 78 rpm
- Effective tonearm length: 230mm with 15mm overhang
- Tracking error: Within 2°32′ outer groove, 0°32′ inner groove
- Stylus pressure range: 0-4g direct reading
- Dimensions: 453 x 173 x 372mm | Weight: 13.0kg

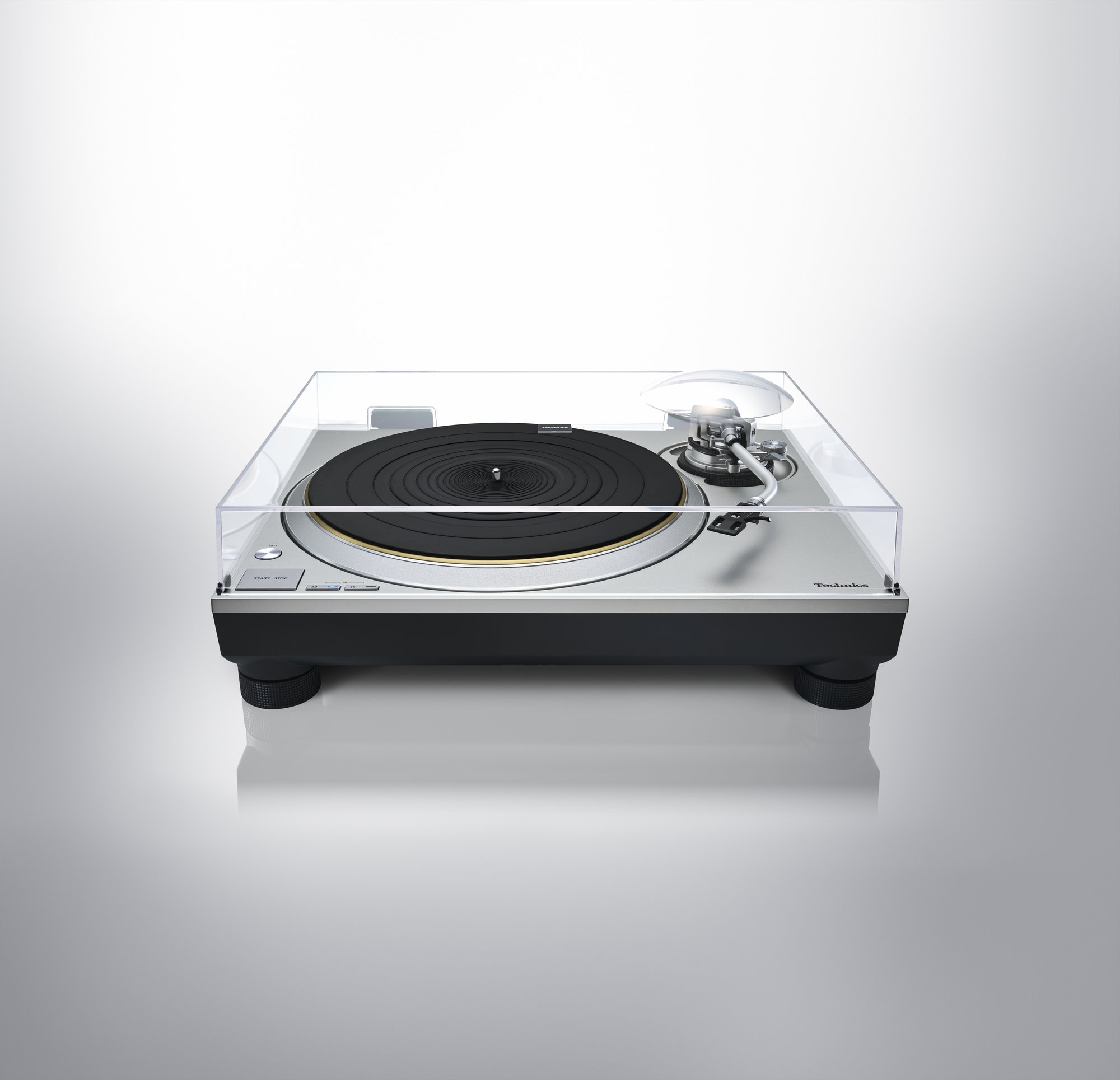

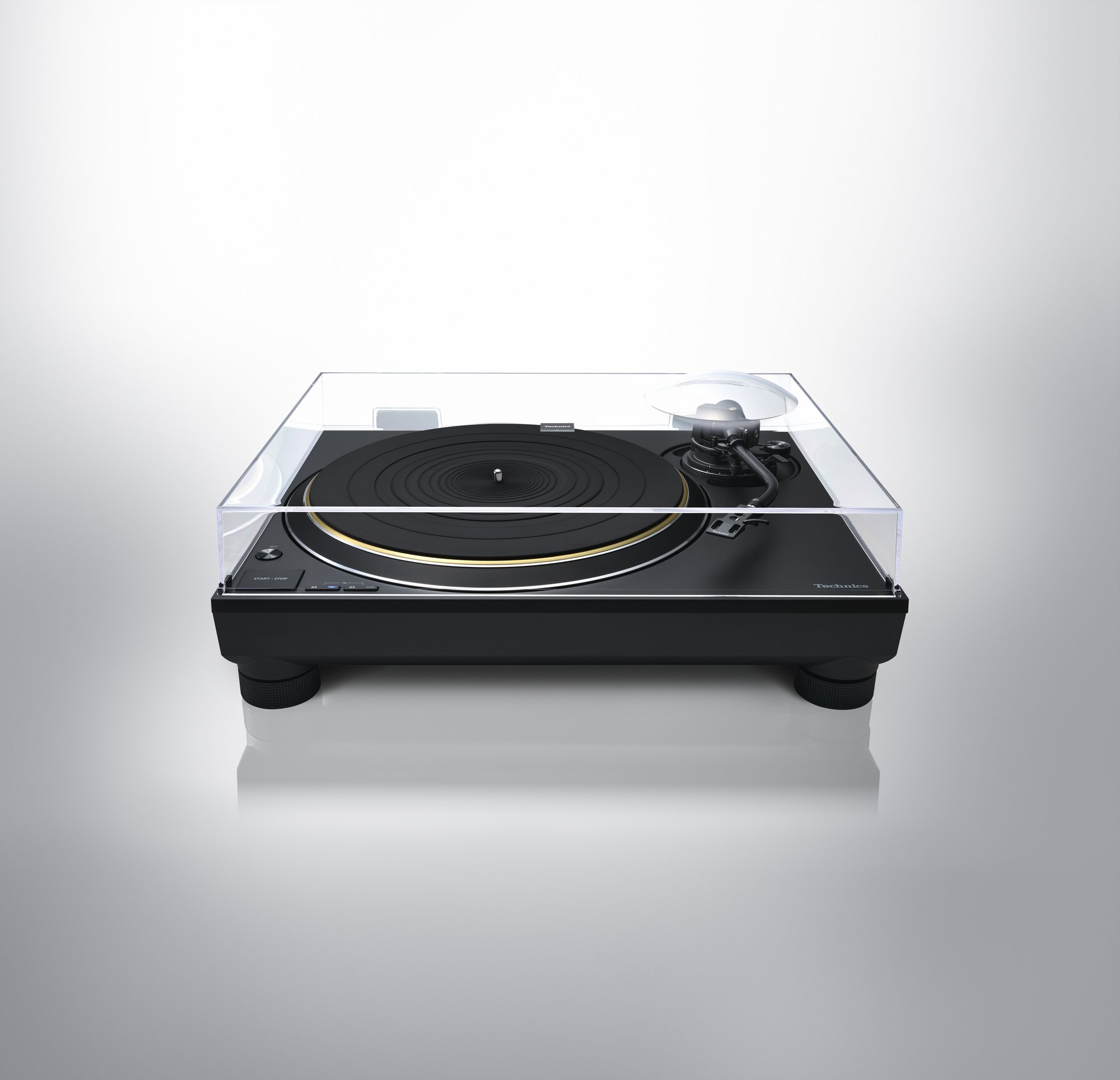

- Includes: Dust cover, headshell, overhang gauge, phono cables, and complete accessory set
