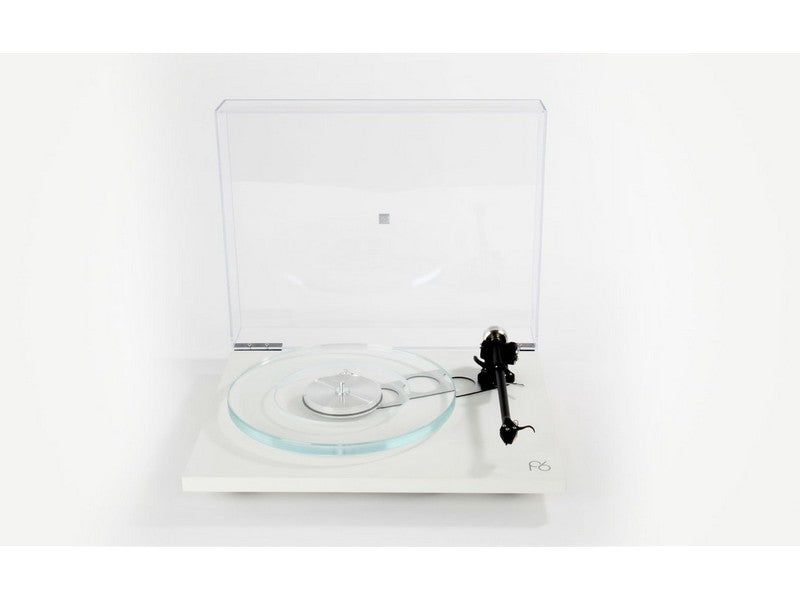

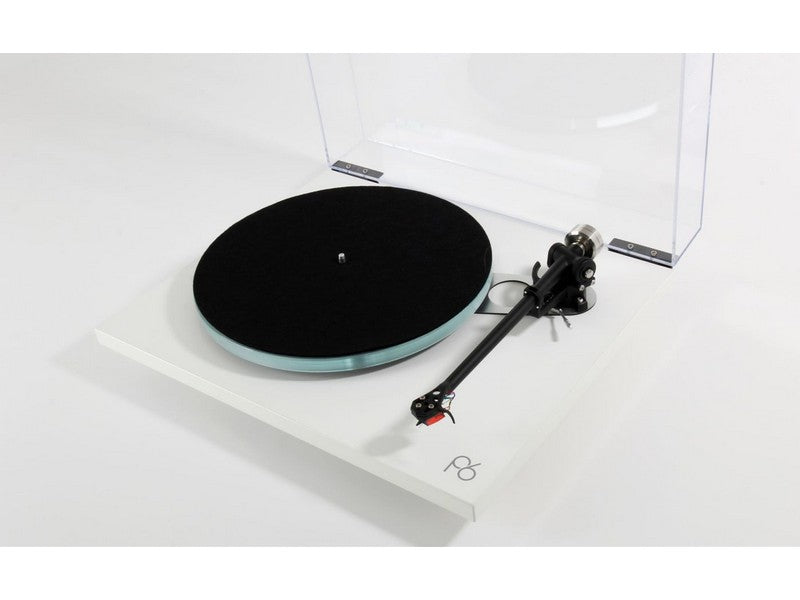

Rega Planar 6 Turntable with Nd5 MM Cartridge

The Planar 6 has one goal, to reproduce your vinyl as accurately as possible. We have engineered every aspect of this turntable to extract as much detail from the vinyl surface as possible. Advanced materials and engineering solutions have been used throughout the design to ensure the greatest level of performance.

The Neo PSU offers electronic speed change, advanced anti-vibration control and user adjustable electronic fine speed adjustment only found on the RP10 until now.

The Planar 6 is built around the huge success of the RP8 and RP10 turntables. It is the first new Rega turntable to be constructed with an ultra lightweight Tancast 8 polyurethane foam core plinth (a material developed for the aerospace industry). This material is sandwiched between a new HPL (high pressure laminate). HPL is exceptionally thin whilst extremely rigid and is presented in a stunning Polaris matt grey finished with high gloss polymer black edge trim.

The Planar 6 now benefits from a single piece, machined aluminum sub-platter, a new 24v motor hand tuned and matched to its own NEO power supply and custom drive pulley fitted with our upgrade drive belt as standard.

The Neo PSU uses the RP10 DSP (digital signal processing) generator built upon a high stability crystal. The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed. The DSP generator will also produce a near perfect sinusoidal waveform to drive the motor. This, along with an efficient drive amplifier, generates a 24V AC balanced signal of less than 0.15% distortion, which is completely un-affected by any changes in the mains/line voltage and conditions. This then drives the turntables anti-vibration circuit, which is situated beneath the turntable.

Key Features:

• NEO power supply.
• Super lightweight foam core plinth.
• Plinth laminate: New Polaris HPL (high pressure laminate). Non-marking matt finish scratch resistant high rigidity skin.
• Available in one finish ‘Polaris Grey’ matt finish with high gloss black polymer edge trim.
• Upgrade white drive belt fitted as standard.
• Custom dual layer smoked / clear float glass platter.
• Single piece aluminium sub platter.
• Custom machined high precision drive pulley.
• Patent pending, ultra-low friction central brass hub.
• Rega’s double brace technology, with integral custom matched aluminium tonearm and hub pillars to ensure maximum rigidity and accuracy.
• RB330 handmade precision tonearm with custom stainless weight.
• New high spec Rega 24v low noise synchronous motor – each motor matched by hand to its own NEO PSU ensuring optimum anti-vibration control.
• New smoked dust cover.
• New aluminium foot trims and Planar style feet.
• Available with Ania MC cartridge factory fitted / Discount available when factory fitted.

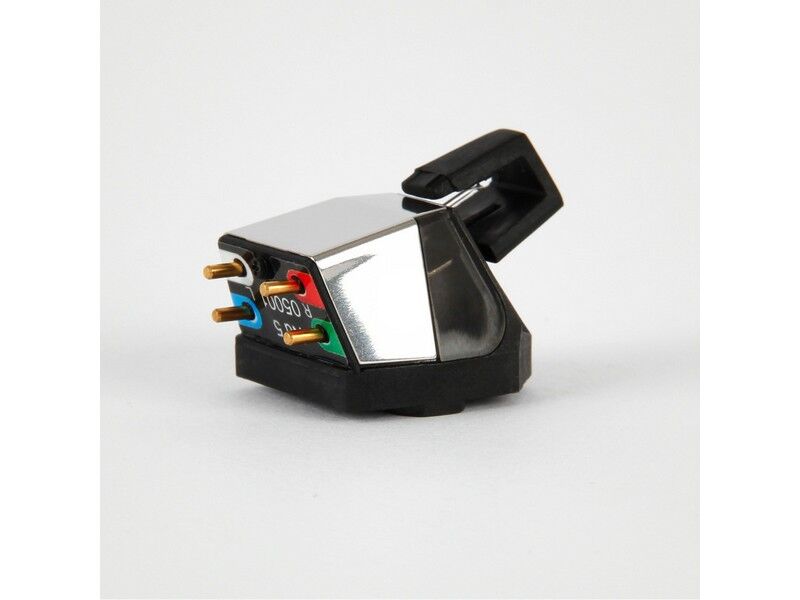

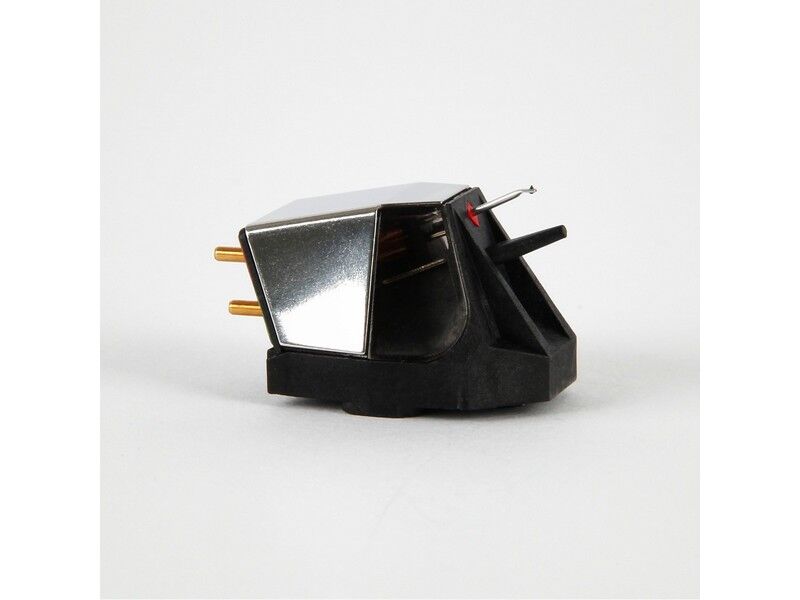

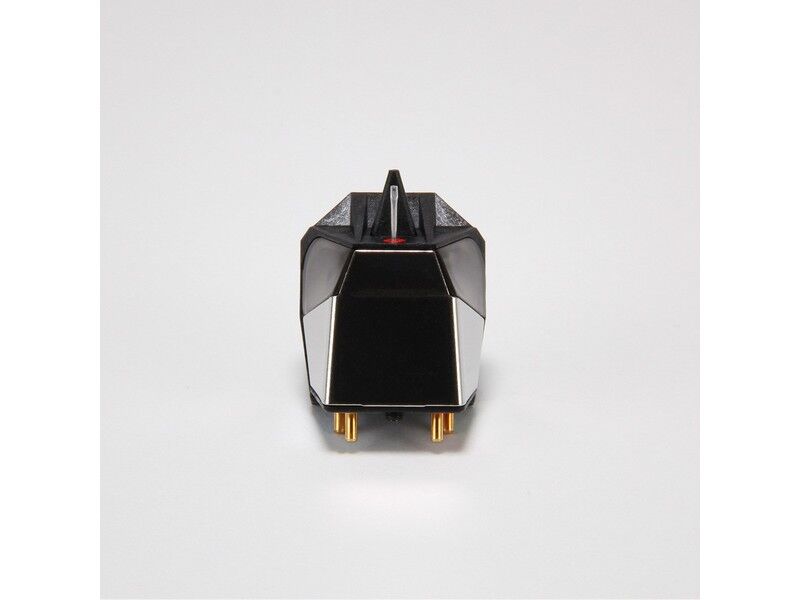

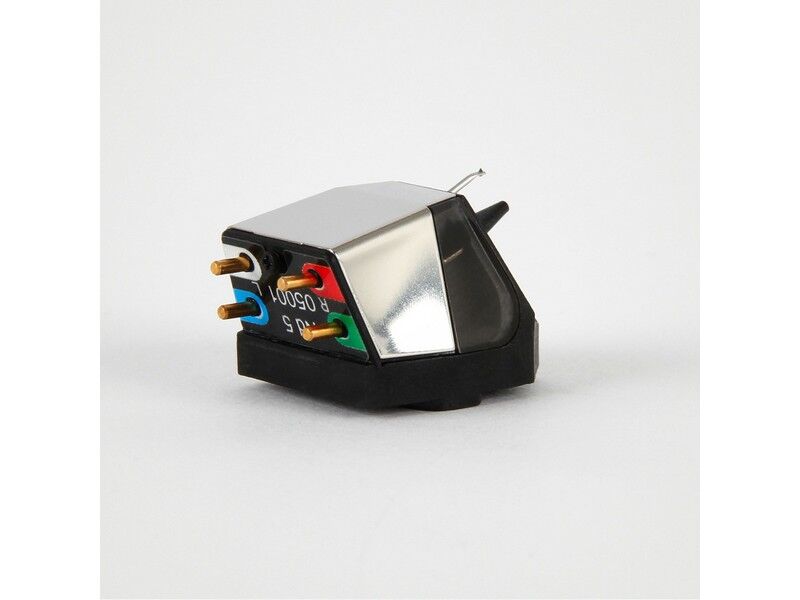

About Nd5 Moving Magnet Cartridge

The Nd5 Moving Magnet Cartridge was developed over 10 years and promises to deliver ‘next level’ performance from moving magnet technology. The Nd range (patent pending) is a world first to use an ultra-high powered Neodymium magnet which allowed Rega to create this totally unique design.

Each Nd5 is meticulously hand-made by Rega’s highly skilled technicians. The stylus profile is a perfect elliptical nude diamond. This is a true ellipse created by an elliptical grinding process made from polycrystalline manmade diamond. The design uses brand new generator geometry with perfect symmetry to achieve accurate channel balance. The Nd5 also has an optimised pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with Rega’s commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

Features:

• High Performance, High Output Moving Magnet Design
• Nude Perfect Elliptical Diamond Stylus, Powerful Neodymium Magnet, Aluminium Cantilever
• Highly Rigid Lightweight PPS Body, Rega 3 Point Mounting System
• Handmade In England, 100% Recyclable Packaging

Nd Magnet Technology: Often used in Moving Coil designs (including Rega’s own) Rega believe the Nd5 is the first moving magnet to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.

Glass Filled PPS Body: The complete assembly is housed in Rega’s zero tolerance injection moulded glass filled polyphenylene sulphide (PPS) body which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by Rega’s hugely successful MC range.

Cantilever & Stylus Profile: The Nd5 aluminium cantilever is fitted with a precision perfect elliptical nude diamond stylus. This profile provides exceptional tracking accuracy and extracts greater levels of detail from the vinyl surface.

Specifications:

• Design: Handmade Stereo Moving Magnet Cartridge
• Nude Perfect Elliptical Diamond Profile Stylus
• Aluminium Cantilever
• Neodymium Magnet
• Unique Generator
• Rega 3 Point Mounting System
• Highly Rigid Lightweight PPS Body
• 100% Recyclable Packaging
• Tracking Pressure: 1.75g
• Nominal Output Voltage: 5-6mV
• Stylus: Perfect Elliptical Nude Diamond
• Fixing: 3 Point Fixing
• Coils: Miniaturised Parallel Coils
• Window Colour: Clear Smoked
