Description
The Wave power cable has been engineered to deliver exceptional performance and outstanding value for Hi-Fi and AV systems. As the entry-level model in the SoundWire™ range, Wave is designed for music enthusiasts seeking a significant upgrade over standard power leads without compromising on quality, reliability, or performance.

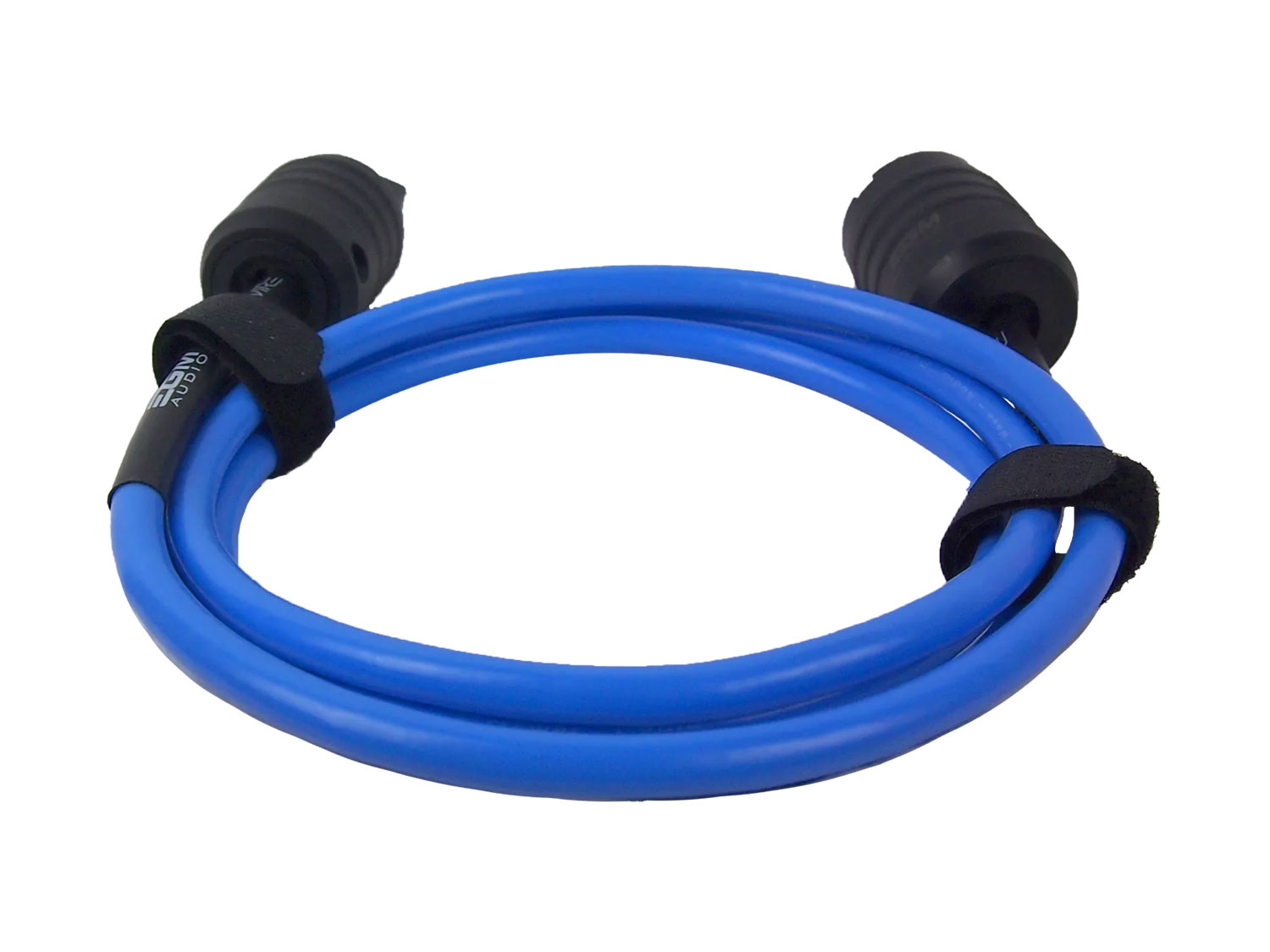

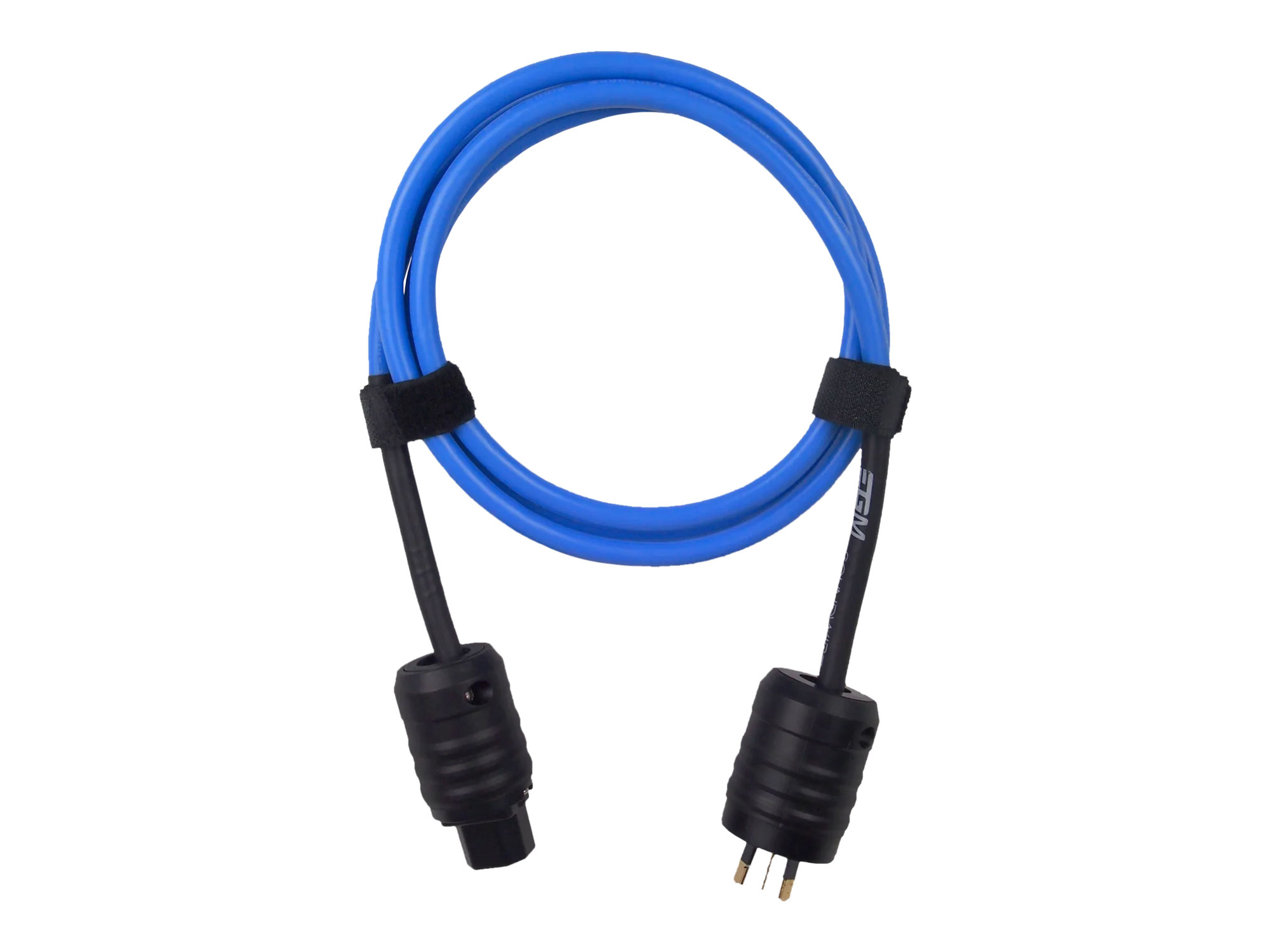

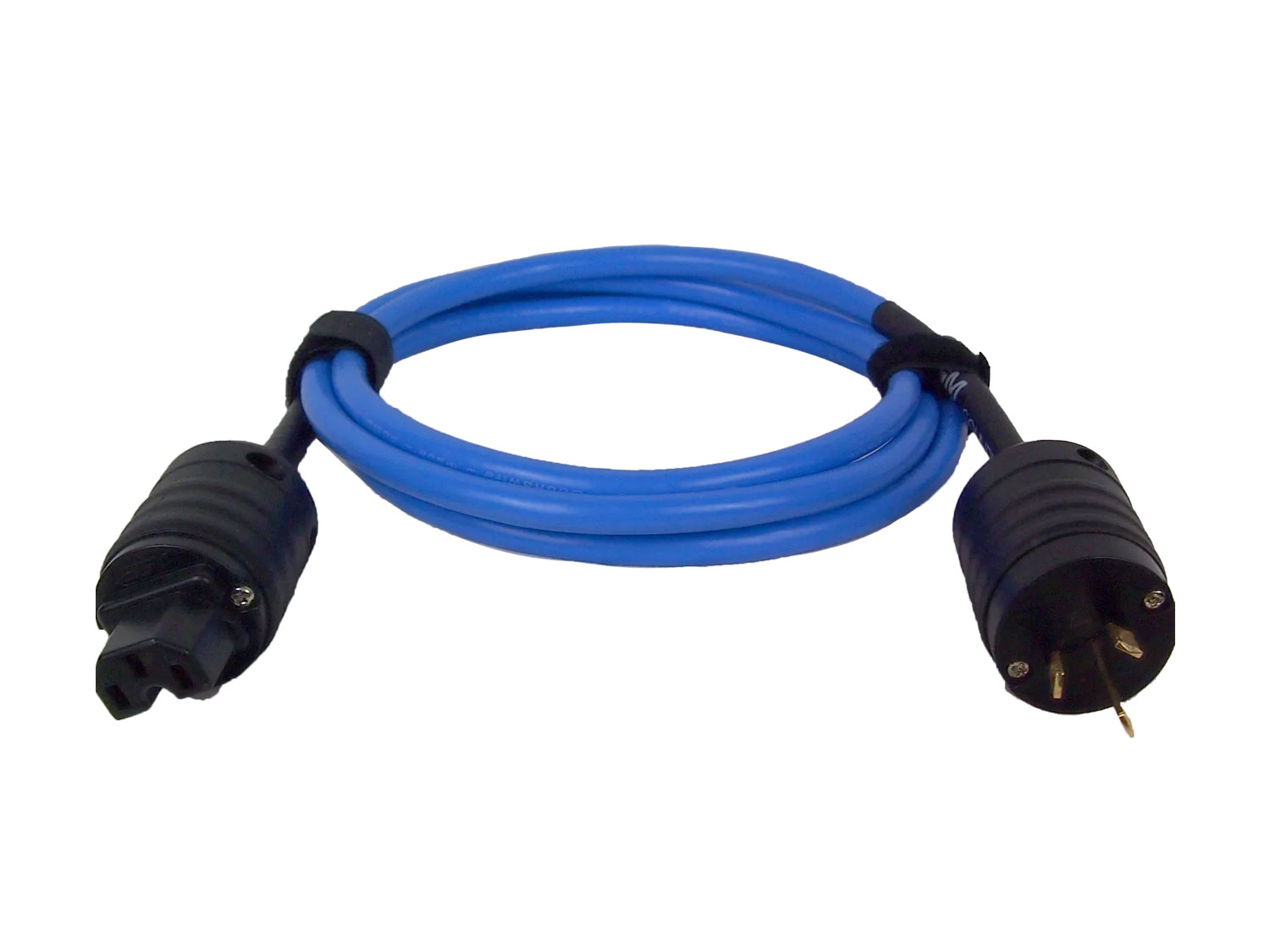

The Wave cable really stands out from the crowd with its Sky-Blue coloured sheath. It is nice and flexible even though it has a 9mm outer diameter. The Sky-Blue silicon outer sheaf is distinctive and practical.Its rugged construction is highlighted in the 100mm protective heat-shrink covers on both ends of the wire as it terminates into the unique EGM Audio barrel ends. They feature Gold plating over solid Copper pins within an anti resonant 3rd generation AC power plug and is available in a variety of custom lengths and IEC plug tops.
- Entry-level and mid-range Hi-Fi systems
- AV receivers and integrated amplifiers
- CD players, DACs and streamers
- Powered subwoofers
- Home theatre systems
- High-quality replacement for standard OEM power cords
Wave incorporates a dual-layer shielding system, consisting of a 100% aluminium foil shield and a high-coverage copper braid. This combination provides effective earthing and screening across a broad frequency range, helping to suppress both radio frequency interference (RFI) and electromagnetic interference (EMI).The advanced shielding design helps minimise external electrical noise from interacting with connected equipment, supporting consistent power delivery and maintaining system performance in demanding audio and AV installations.SoundWire™ Wave cables are excellent inexpensive entry level power cables for HiFi and AV installations. Higher grade of materials and construction over standard (non-audio specific) power cables. Minimum twice the diameter of the copper cores of entry level cables, made with a far higher grade of copper.
Rated Voltage: 0.6/1 kV
Operating Temperature: -10°C to +90°C
Maximum Conductor Temperature: 90°C
Current Rating: In accordance with Table 14 of AS/NZS 3008
Minimum Bending Radius (Installed): 6 × overall cable diameter
Minimum Bending Radius (During Installation): 10 × overall cable diameter

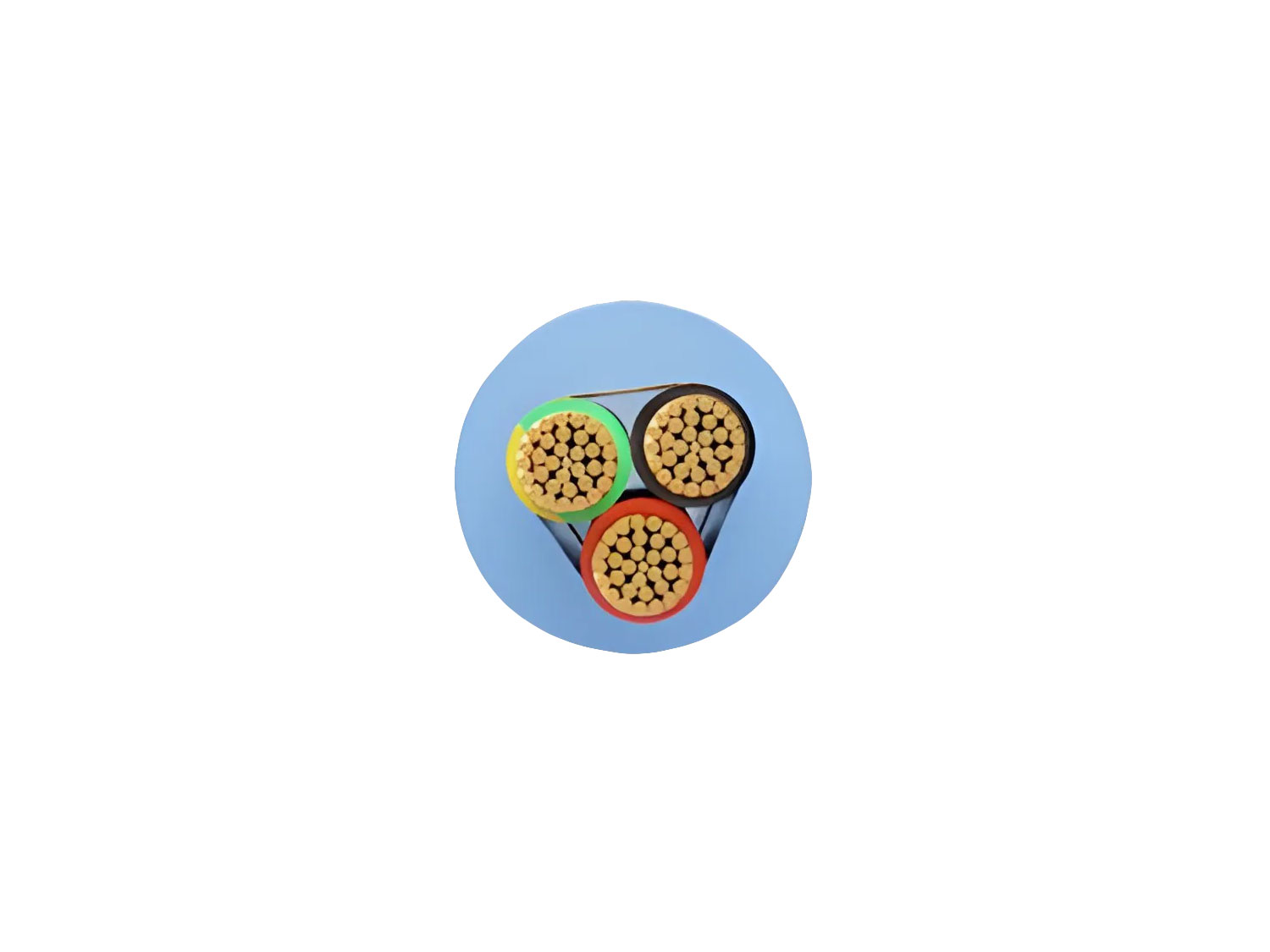

Core Identification: 2 Core + Earth (Active – Red, Neutral – Black, Earth – Green/Yellow)
Standards Compliance: AS/NZS 5000.1, IEC 60228, IEC 60332-1
Environmental Compliance: RoHS compliant
