Description

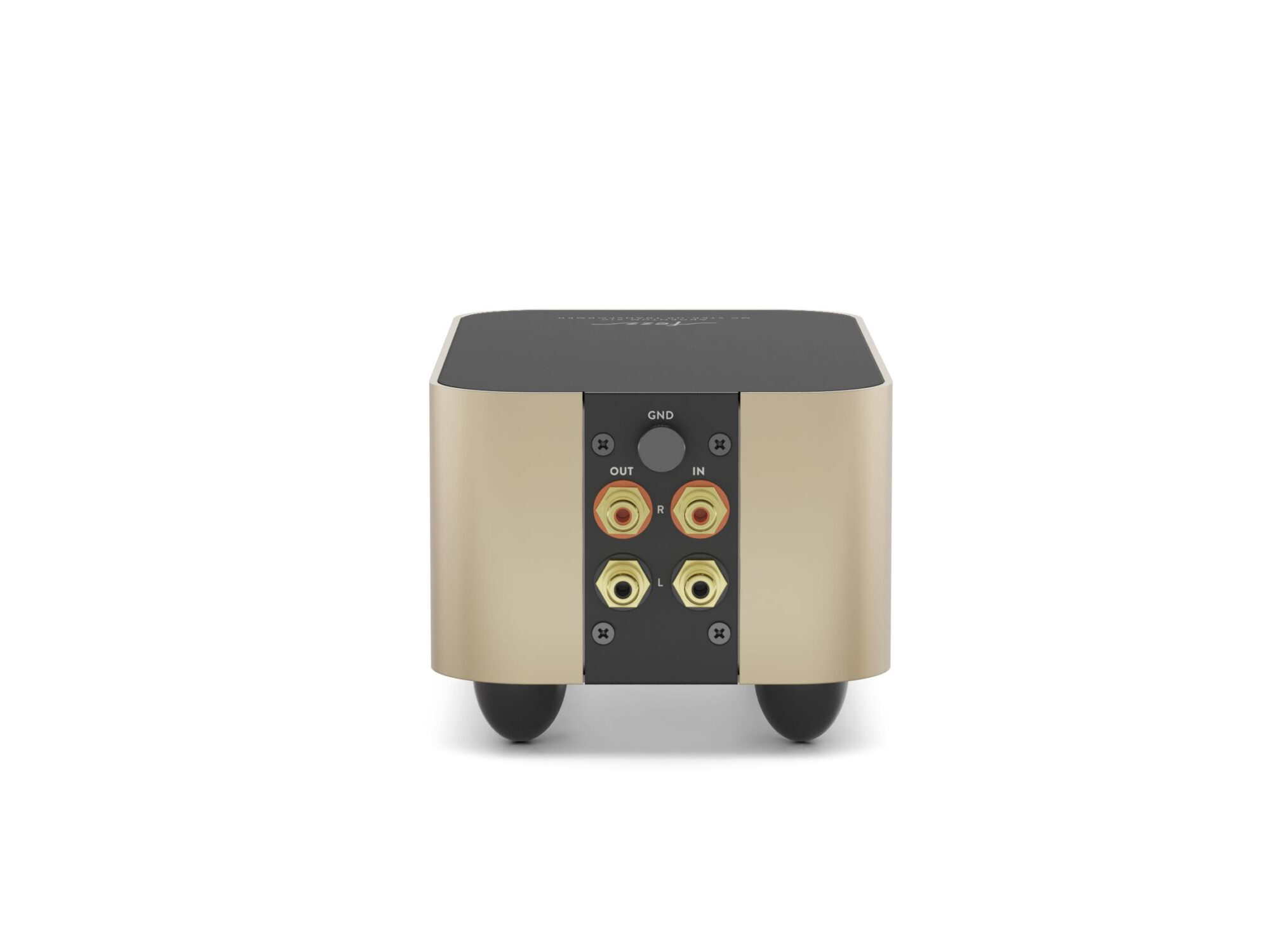

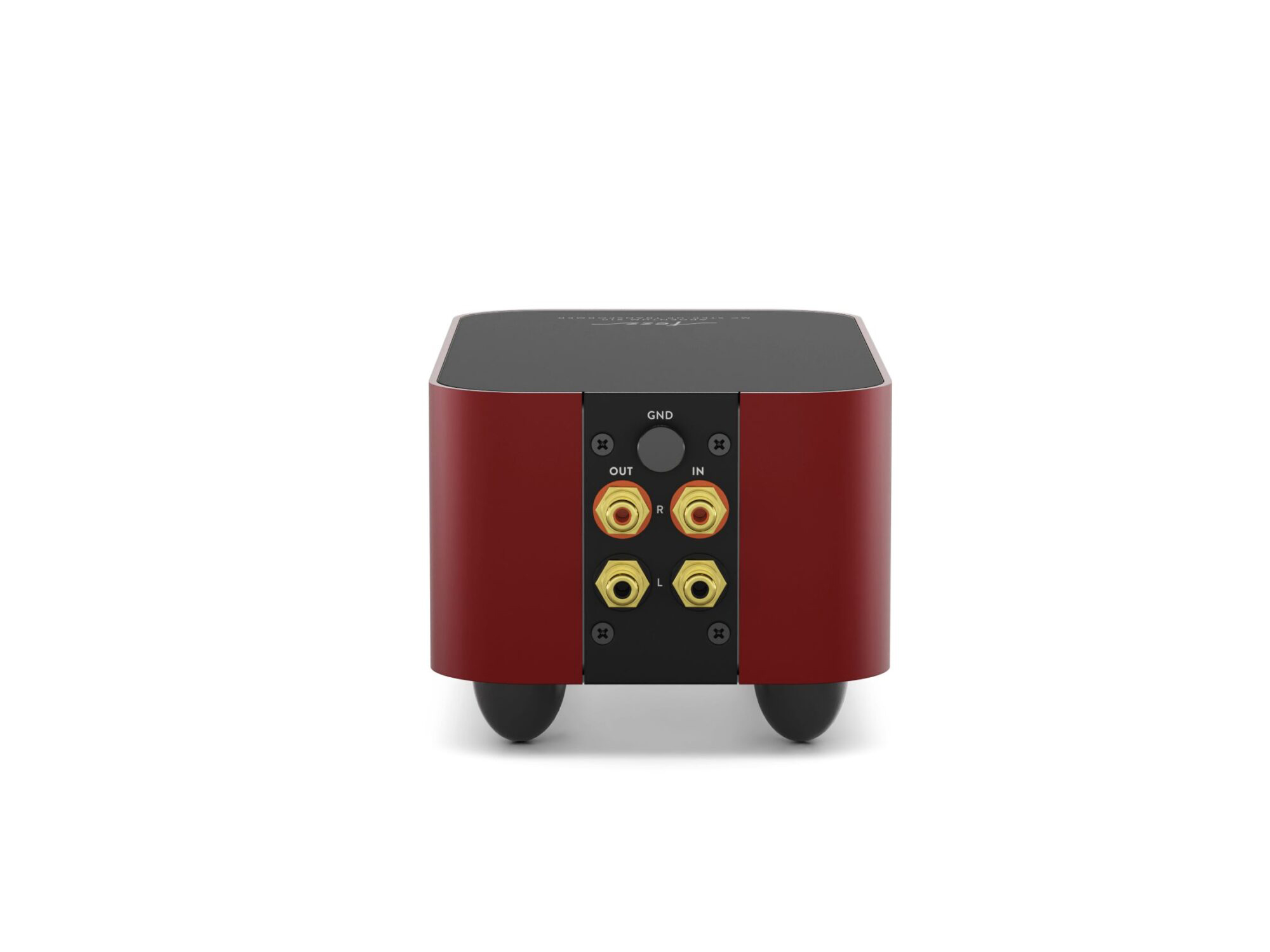

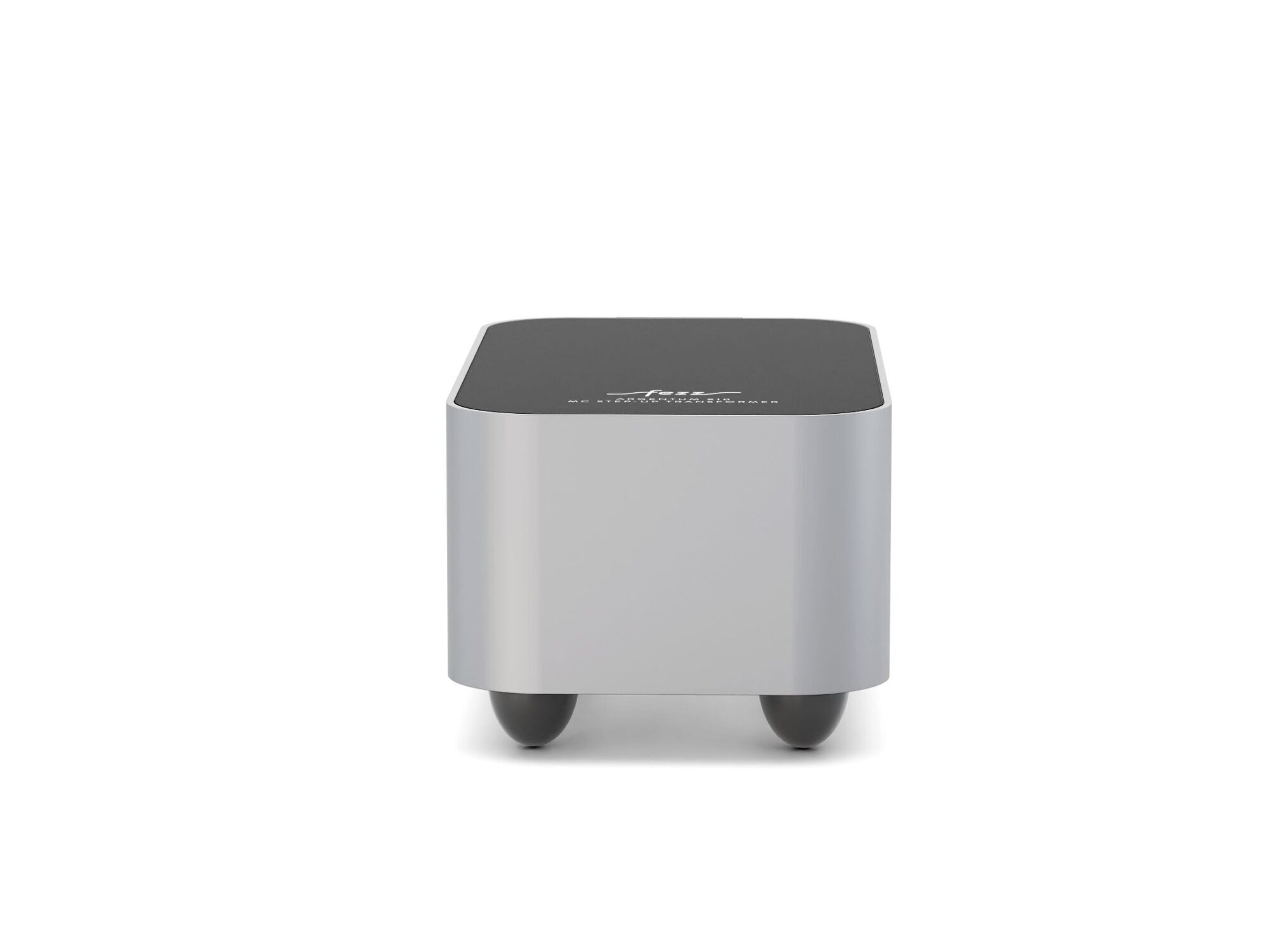

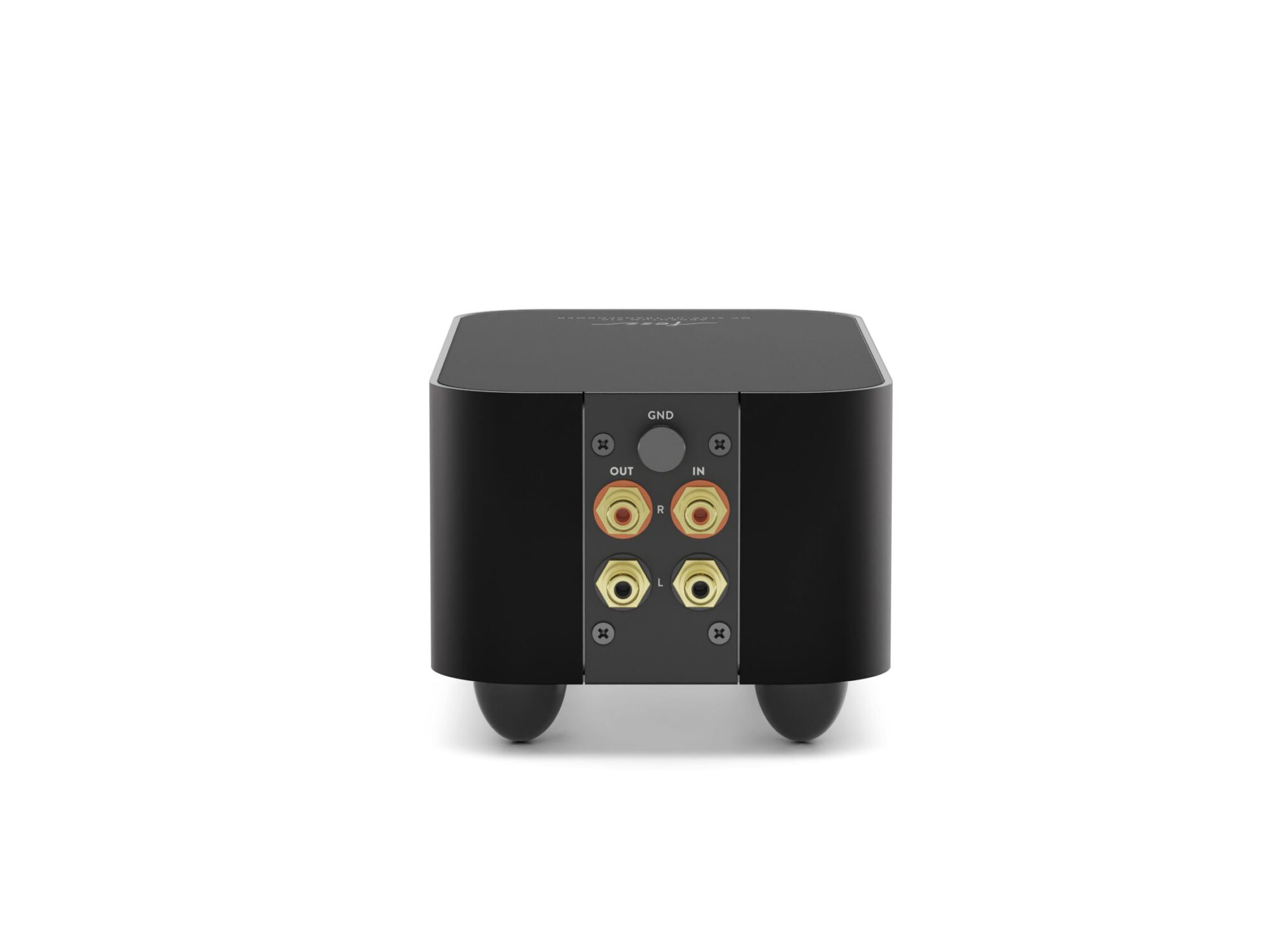

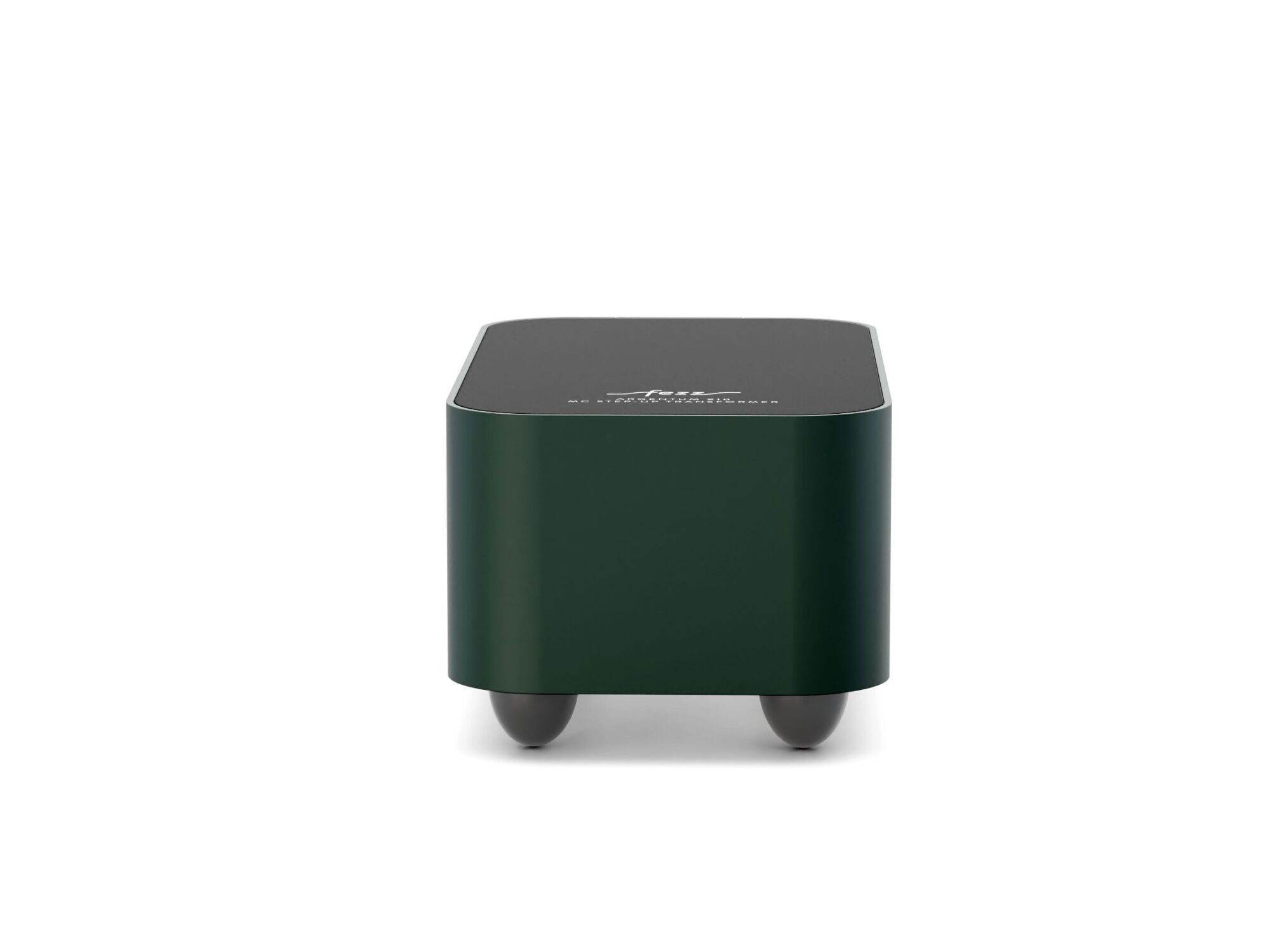

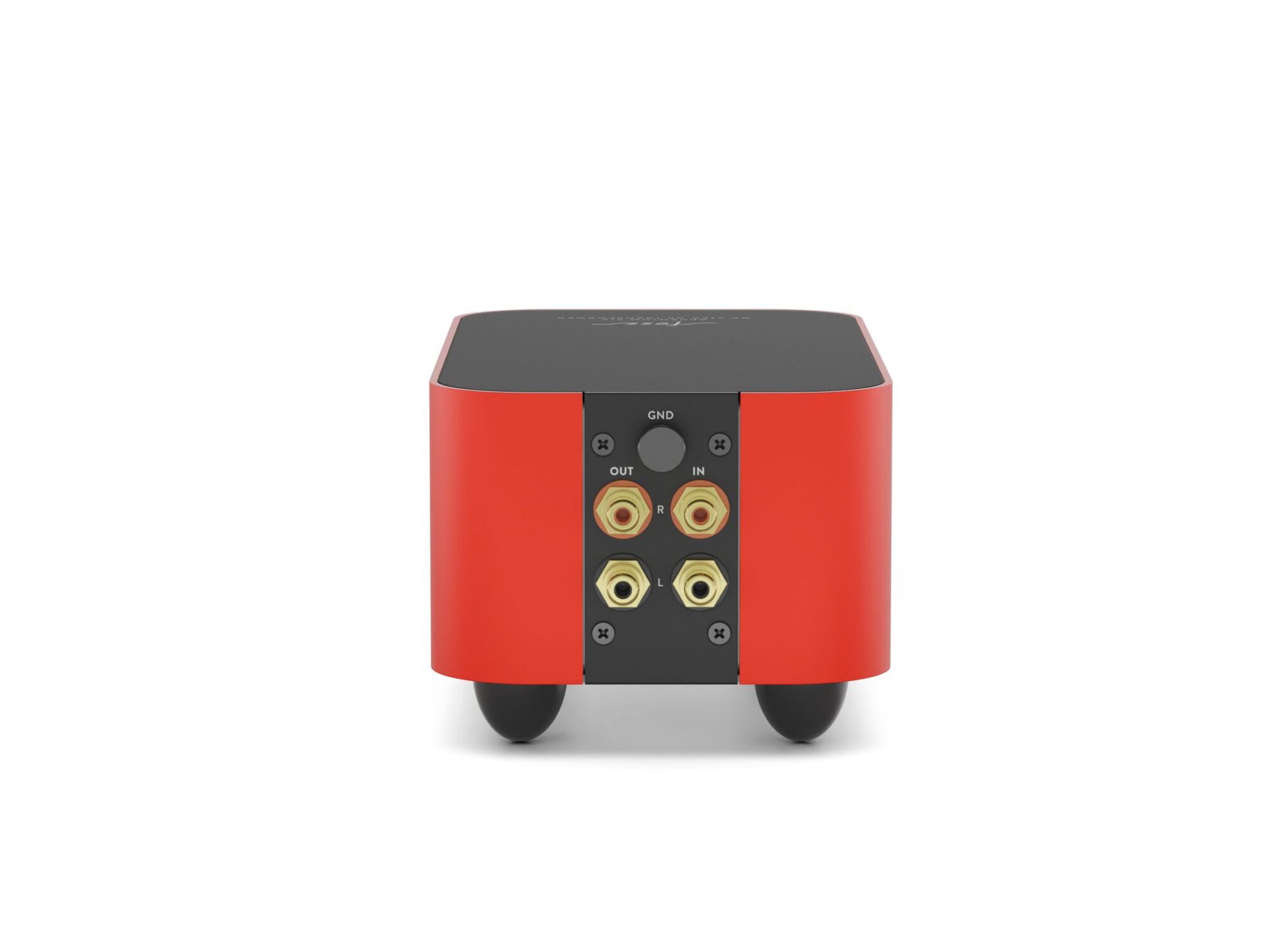

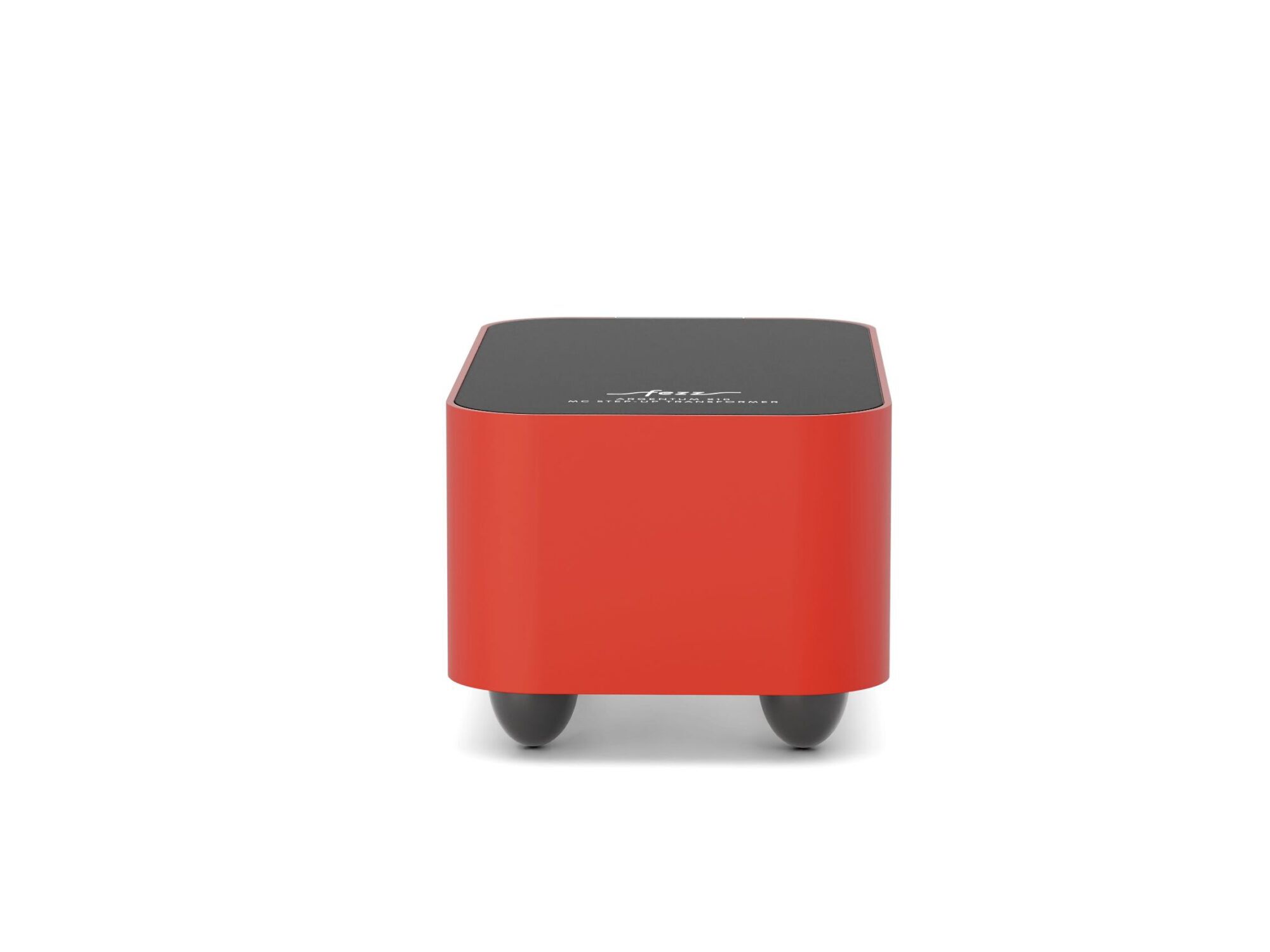

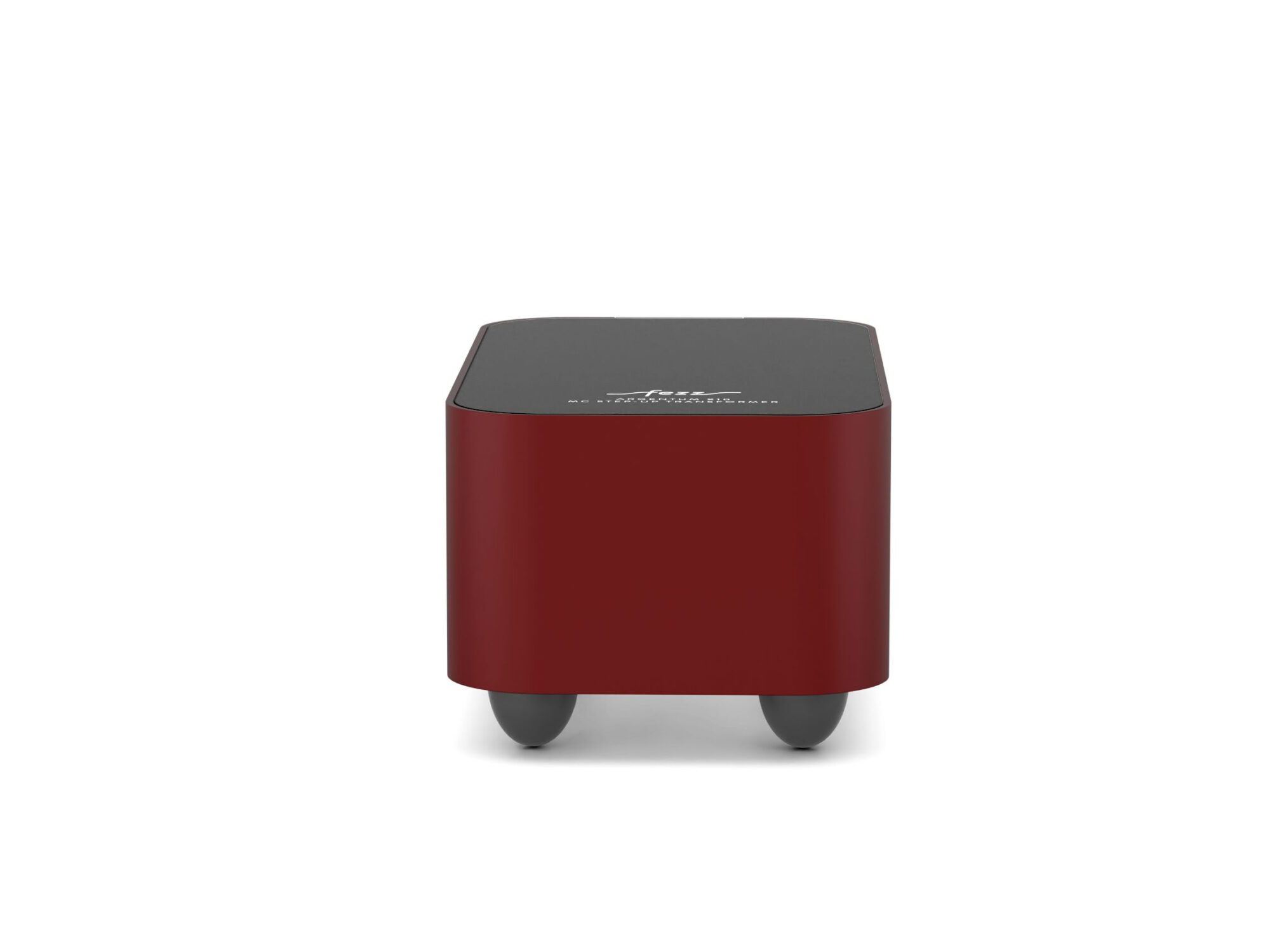

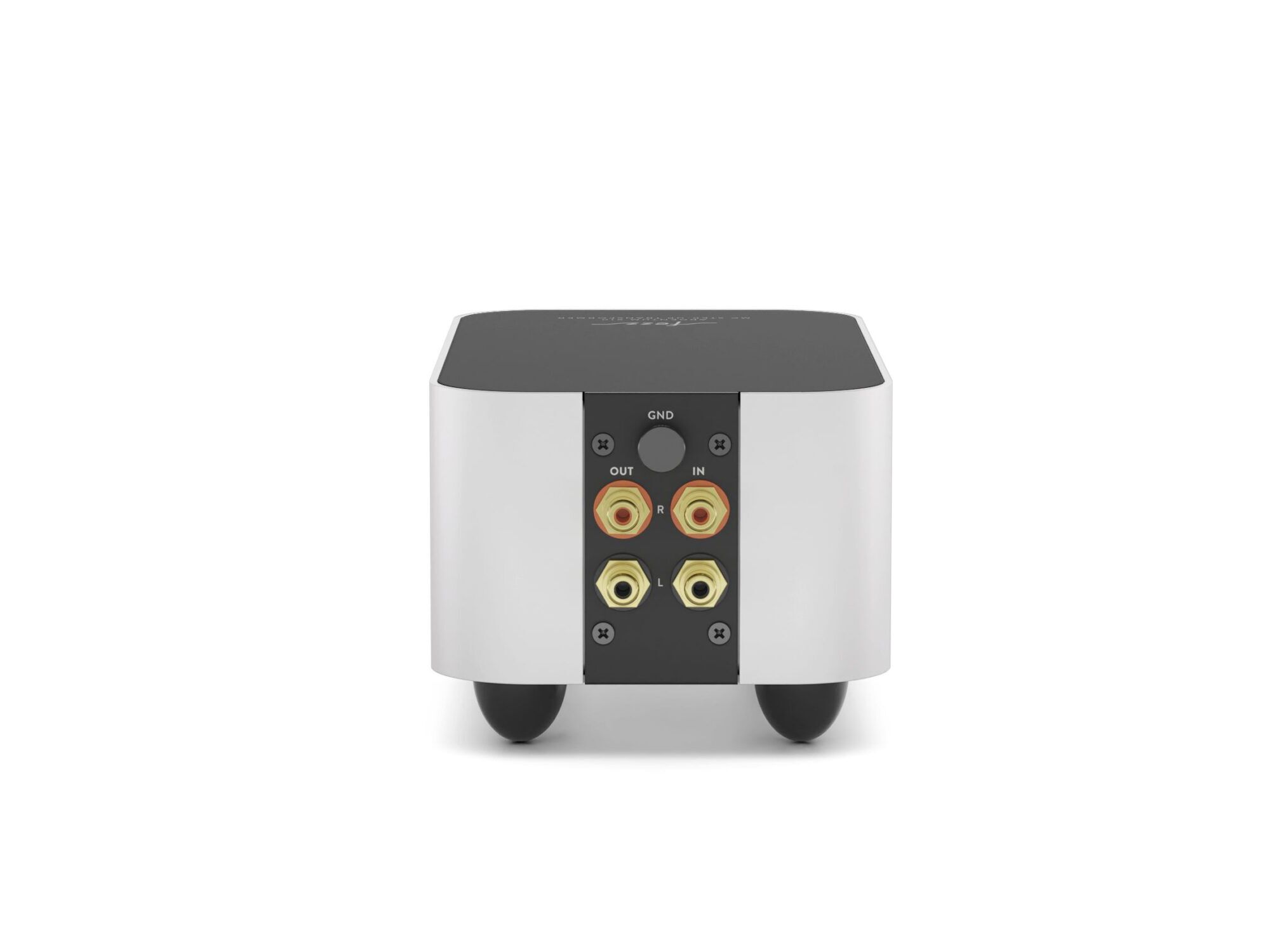

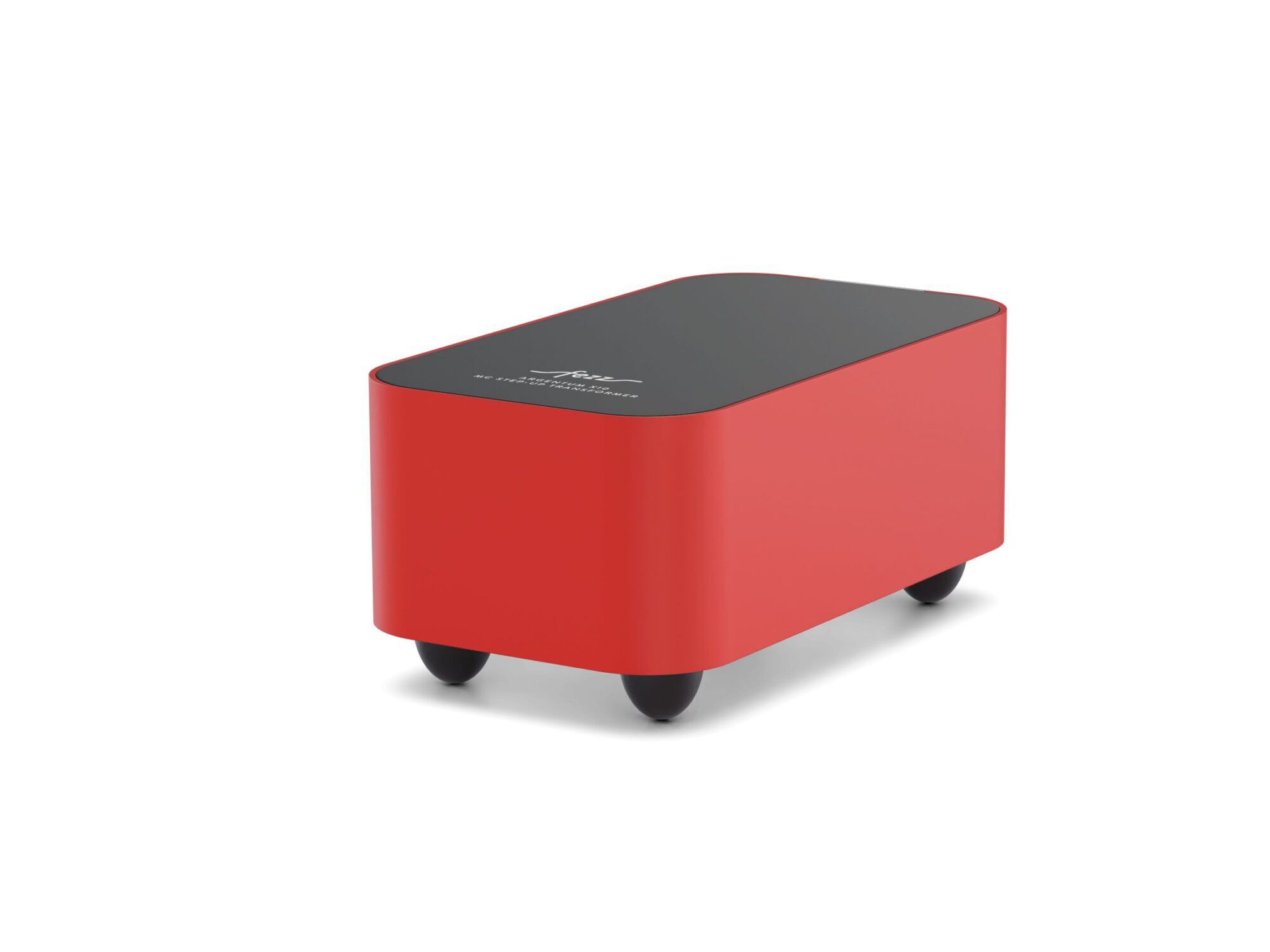

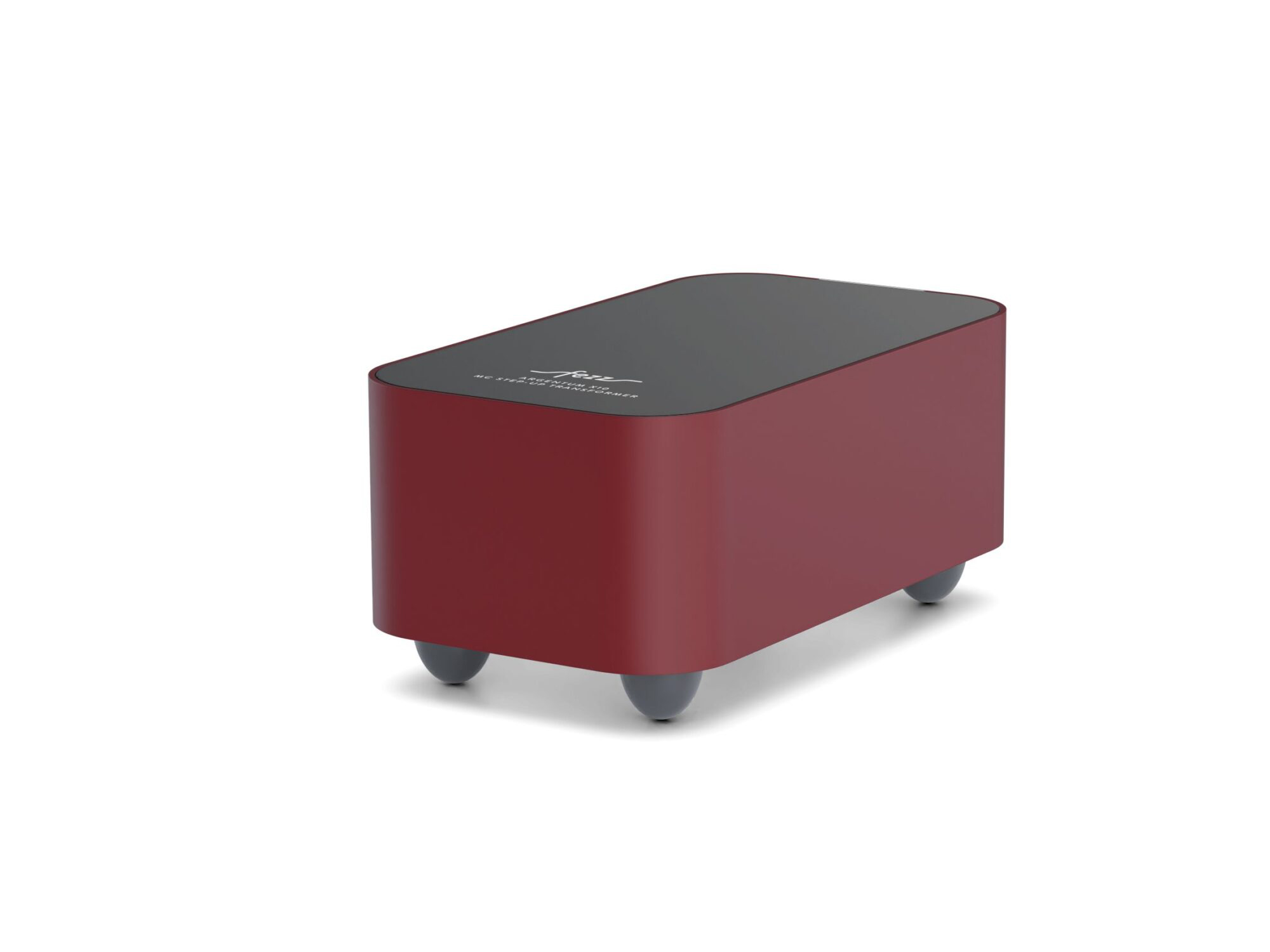

Argentum X20 is high-end MC step-up transformer. There is not a single compromise in its construction – it has been carefully designed to ensure highest fidelity possible. To create the ultimate step-up transformer we have selected the very finest materials: Argentum X20 is wound with 99,9% pure silver wire on a high permeability nanocrystalline core. To ensure noiseless performance it employs double shielding: high permeability mu-metal magnetic shielding and pure OFC copper ribbon electric shielding. With its careful design, ensuring bandwidth extending from 10 Hz to 100 kHz and THD below 0,01% at rated level it is truly beyond compare.
Fezz Argentum X20 step-up transformer is dedicated for: Ortofon Quintet Black, Quintet Blue, Quintet Bronze, Quintet Red, Quintet Mono, Cadenza Black, Cadenza Blue, Cadenza Bronze, Cadenza Red, Cadenza Mono, Diamond, Verismo, Windfeld Ti, Xpression; Goldring Elite, Eroica LX, Ethos, Legacy; Hana ML, Umami Red, Umami Blue; Dynavector DV-20X2 LO, DV-XX2 MKII, XX-2A MC, Te Kaitora Rua, DRT XV-1s; Lyra Kleos SL, Delos, Etna Lambda, Atlas SL Lambda and other cartridges with impedance 1,5-9 Ω
Technical specification
| Type: | MC step-up transformer |
|---|---|
| Model: | Argentum X20 |
| Winding material: | 99.9% pure silver |
| Core material: | Nanocrystalline anisotropic high permeability alloy |
| Magnetic shield material: | High permeability mu-metal |
| Electric shield material: | Pure OFC copper ribbon |
| Step-up ratio: | 1:20 (26 dB) |
| Recommended load: | 47 kΩ |
| Recommended cartridge impedance: | 1.5–9 Ω |
| Total harmonic distortion: | <0.01% |
| Bandwidth:10 | 10 Hz – 100 kHz (Z = 10 Ω) |
| Weight: | 2.5 kg |
| Dimensions: | 120 mm × 95 mm × 212 mm |
