Description
Pure Digital Amplification Meets Audiophile Performance

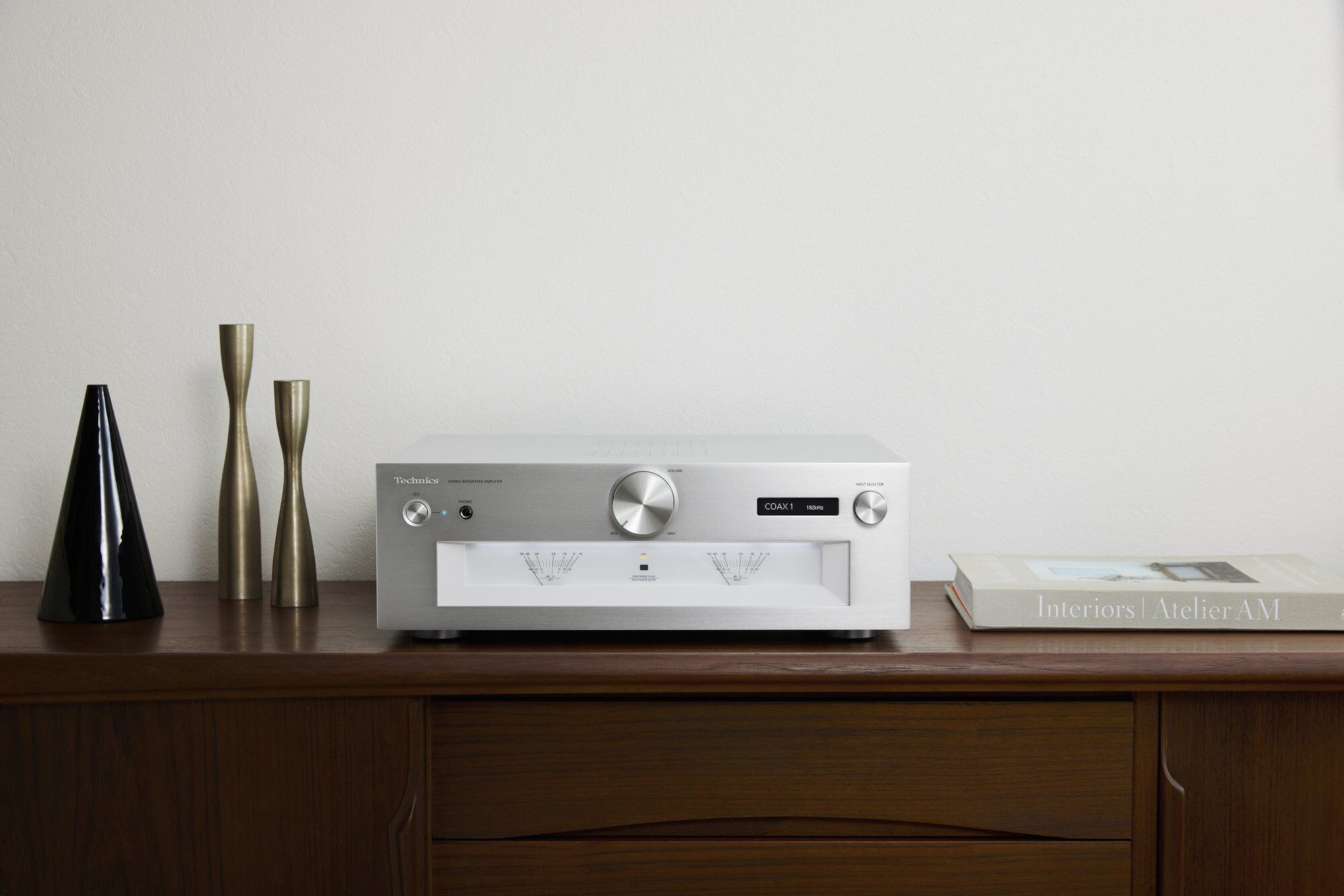

The Technics SU-G700M2 represents the pinnacle of integrated amplifier design, combining full digital amplification technology with reference-class engineering to deliver exceptionally pure and dynamic sound reproduction. Built on the foundation of Technics’ acclaimed Grand Class series, this amplifier employs the proprietary JENO Engine (Jitter Elimination and Noise-shaping Optimisation) to faithfully transmit massive amounts of audio data to speakers without loss, ensuring that even the most delicate musical nuances are preserved.
Advanced Technologies for Superior Sound Quality
At the heart of the SU-G700M2 is its Advanced Speed Silent Power Supply, incorporating GaN FET and SiC SBD components borrowed from the flagship SU-R1000 reference model. Operating at 400kHz switching frequency—four times faster than conventional designs—this power supply delivers improved speaker drive power with enhanced energy and dynamics. The innovative LAPC (Load Adaptive Phase Calibration) technology measures speaker impedance characteristics in real-time, optimising the impulse response through digital signal processing to achieve flat frequency characteristics and rich spatial expression previously unattainable in amplifier design.
Key Features:
- Output Power: 70W + 70W (8Ω) / 140W + 140W (4Ω) with exceptional headroom
- JENO Engine full digital amplification with jitter elimination across the entire audible frequency range
- Low-noise PHONO Input supporting both MM and MC cartridges with four-level gain adjustment
- Class AA Headphone Amplifier with separate voltage and current amplification circuits

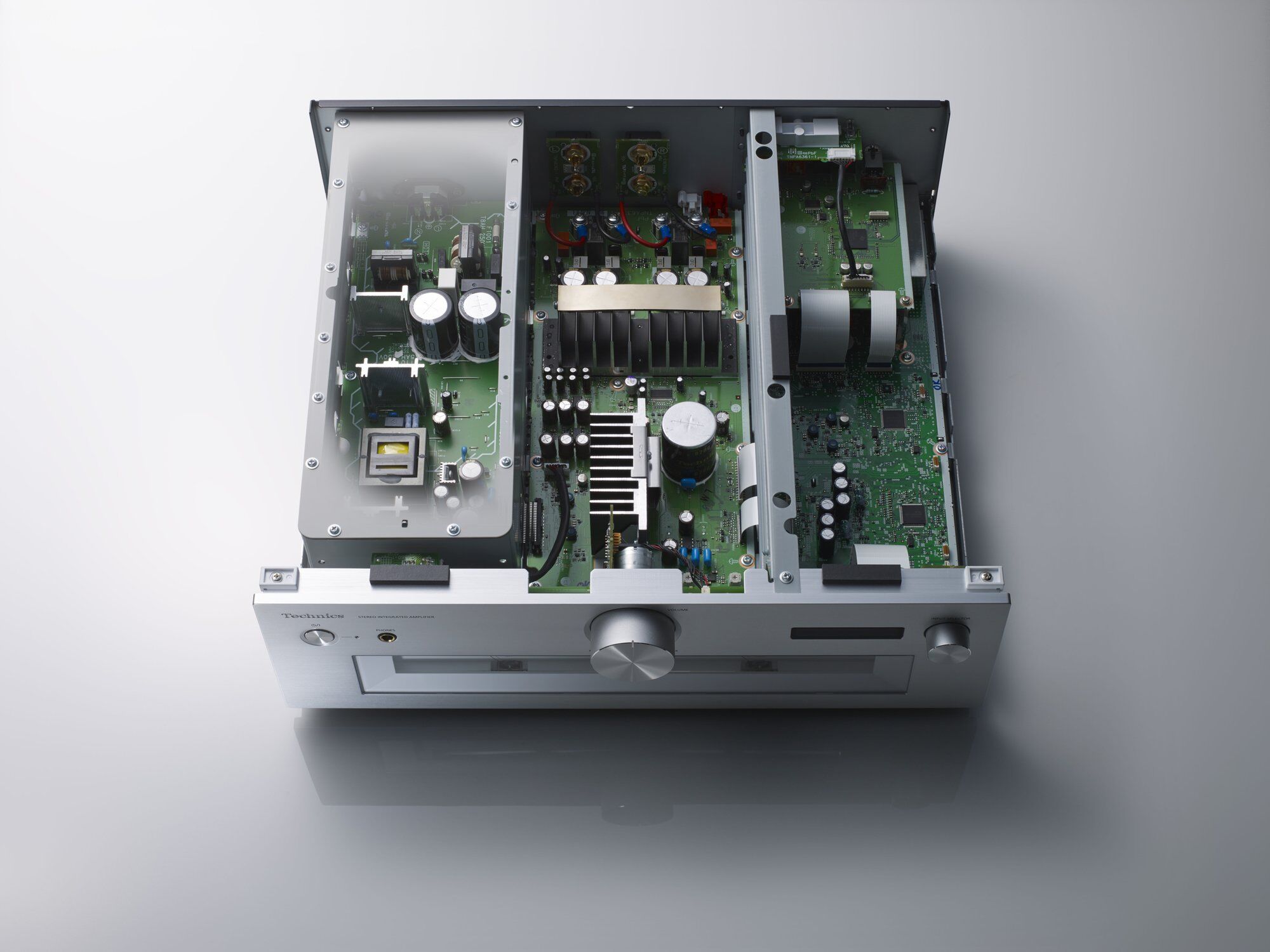

- Three-section Construction with reinforced chassis featuring dual-layer bottom plate for superior vibration damping

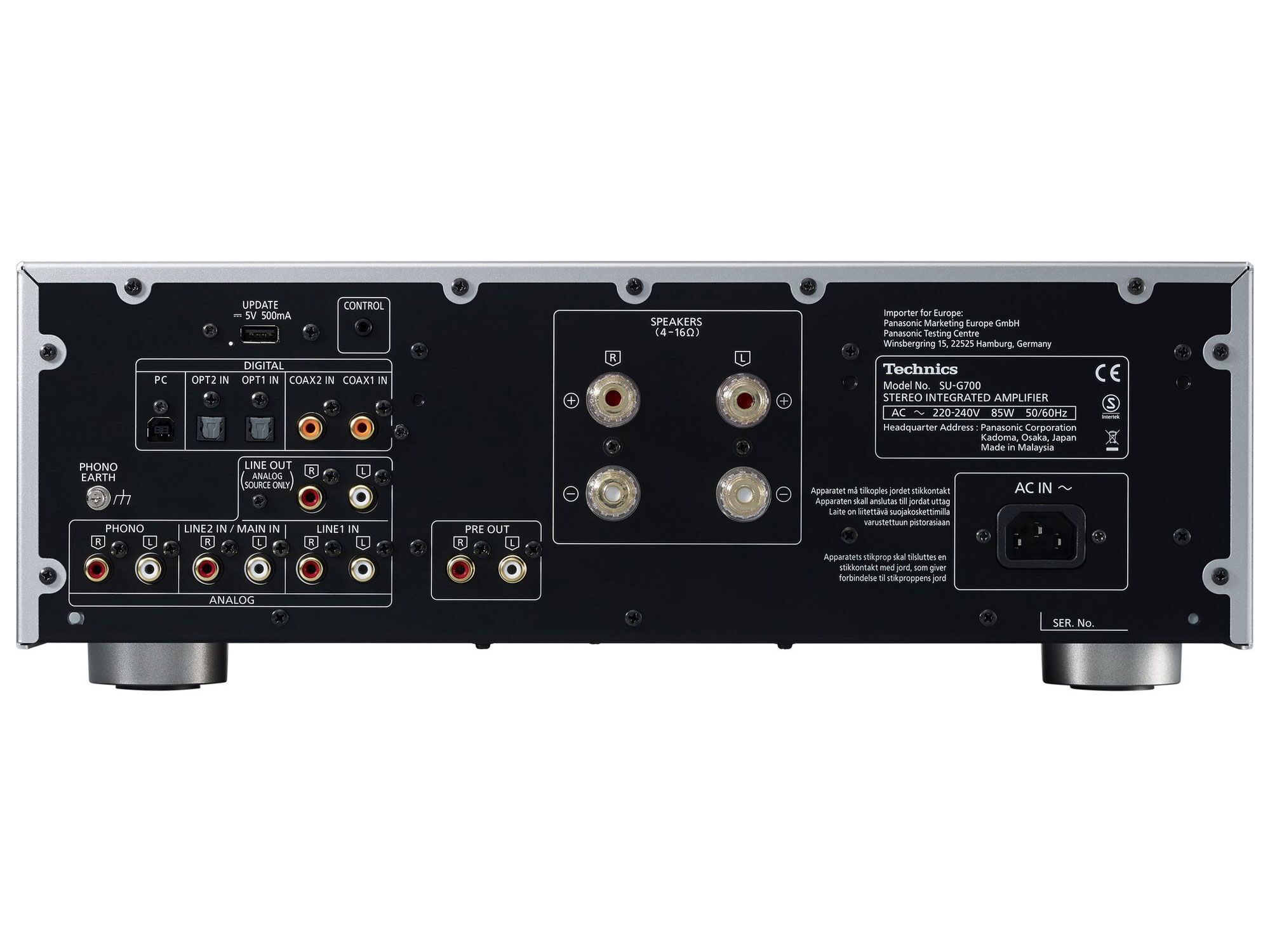

- Comprehensive Connectivity: USB-B (supporting PCM up to 384kHz/32-bit and DSD up to 11.2MHz), optical and coaxial digital inputs, analogue line and phono inputs
- High-grade Components: Technics exclusive block capacitors, brass speaker terminals, and large ground terminal
Premium Build Quality

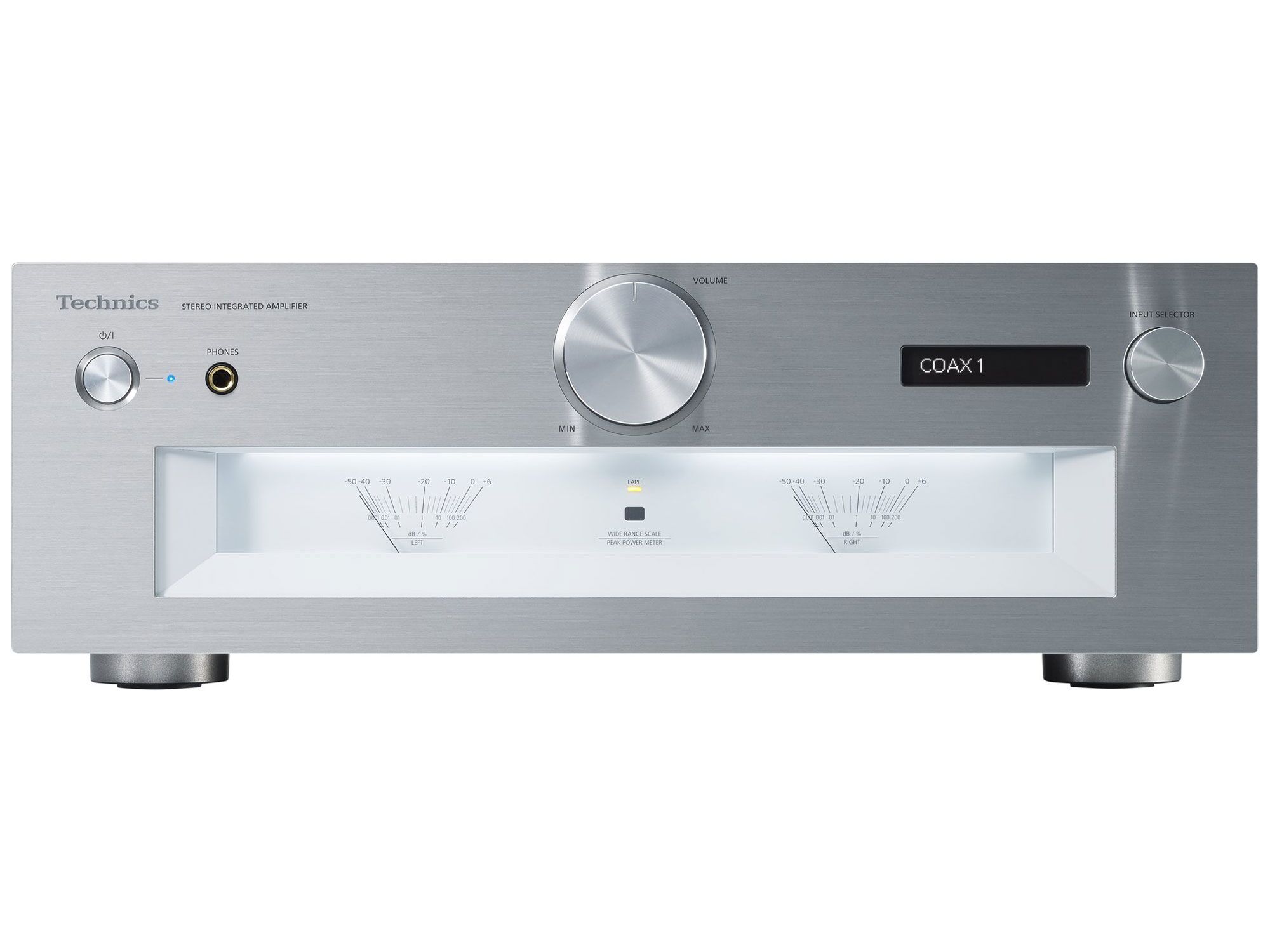

The SU-G700M2 features meticulous construction with partitioned circuit blocks to eliminate interference, a 7mm-thick aluminium front panel, and Technics’ exclusive block electrolytic capacitors optimised through scrupulous tuning. This robust design ensures the amplifier delivers consistent, audiophile-grade performance for both analogue and high-resolution digital sources.
