Description

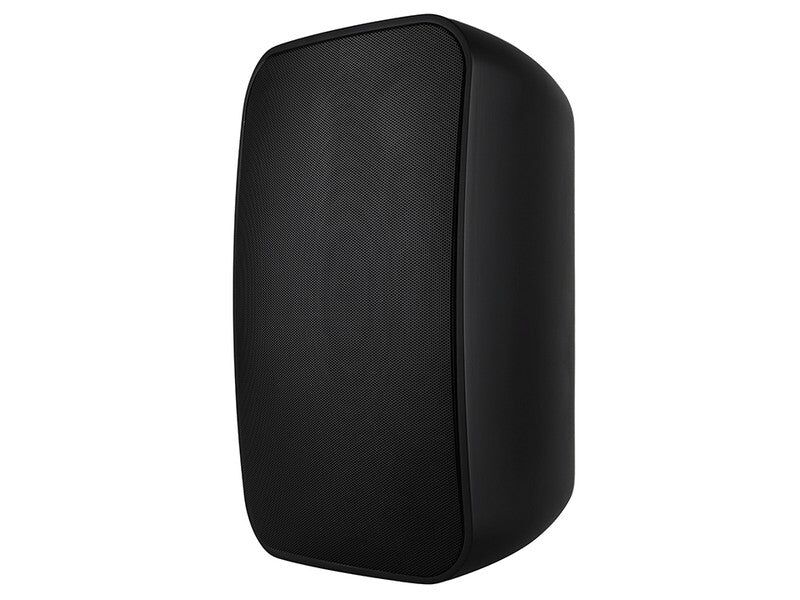

Sonance PS-S83WT 8″ Surface Mount Woofer Speaker Professional Series Black Each
Sonance Professional Series PS-S83WT Surface-Mount Woofer features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.
The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.
An ultra-high-excursion 8” polypropylene woofer delivers effortless and impactful low bass extension and augmentation, at any sound pressure level, making it the perfect partner for the PS-S43T, PS-S53T and PS-S63T Pendant Speakers.
A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-S83WT is certified for UL 1480 and UL 2239.
Available in either black or white (paintable).
SPECIFICATIONS:
- Frequency Range (-10dB) – 32Hz – 300Hz
- Frequency Range (-3dB) – 50Hz – 150Hz
- Power Capacity1 – 200 Watts Continuous Program Power | 125 Watts Continuous Pink Noise
- Nominal Sensitivity – 88dB
- Nominal Coverage Angle – 180 degrees x 180 degrees coverage
- Directivity Factor (Q) – N/A
- Directivity (DI) – N/A
- Rated Maximum SPL – 110dB @ 1 meter (3.3 feet) average, 116dB peak
- Rated Impedance – 8 Ohms nominal, 6 Ohms minimum
- Transformer Taps – 120W, 60W, 30W (15W 70V)
- Crossover Point – 150Hz
- Overall Dimension – 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)
- Net Weight – 12 lbs (5.44kg) each
- Shipping Weight – 18 lbs (8.61kg) each
- Unit of Measure – Each
- Color – Black or White
- Grille – Powder Coated Aluminum Friction Fit
- LF Driver – 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
- HF Driver – N/A
- Input Connectors – Front-mounted four pin, Euroblock with loop output connections
- Safety Agency – UL 1480, UL 2239
- Mounting Bracket – U-Bracket with Sonance FastMount
- Environmental & UV – Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
